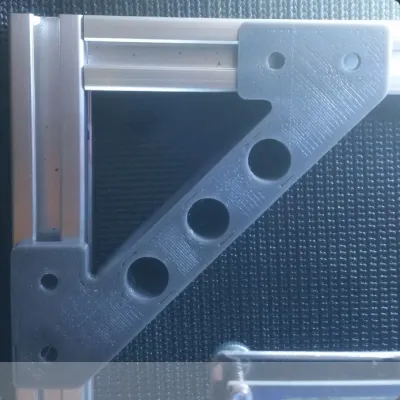

45 degree gussets for 2020 extrusion.

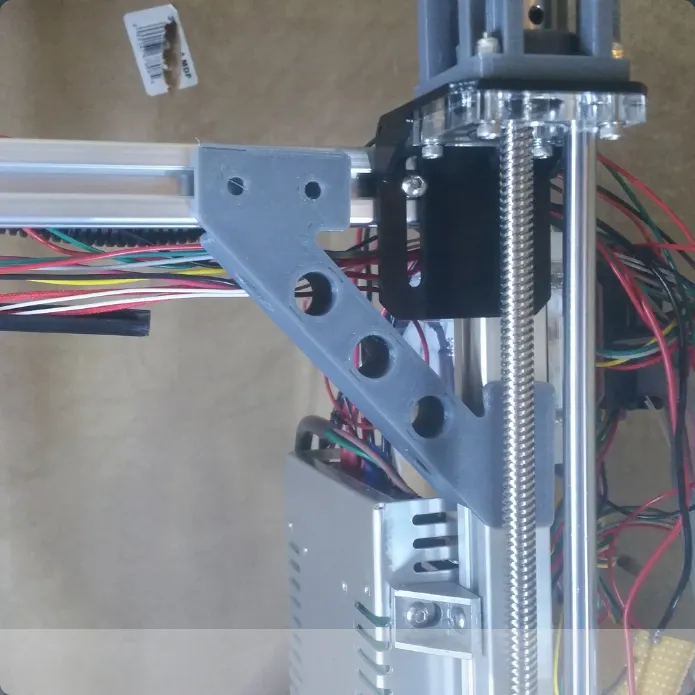

The one sided offset was designed so I could mount it on a FolgerTech 2020 i3 under the Z motor mounts.
I'll be uploading a bunch of different variations of this over the next couple of days.
The standard ones (without short or long in the filename) fit inside a 100mmx100mm square.

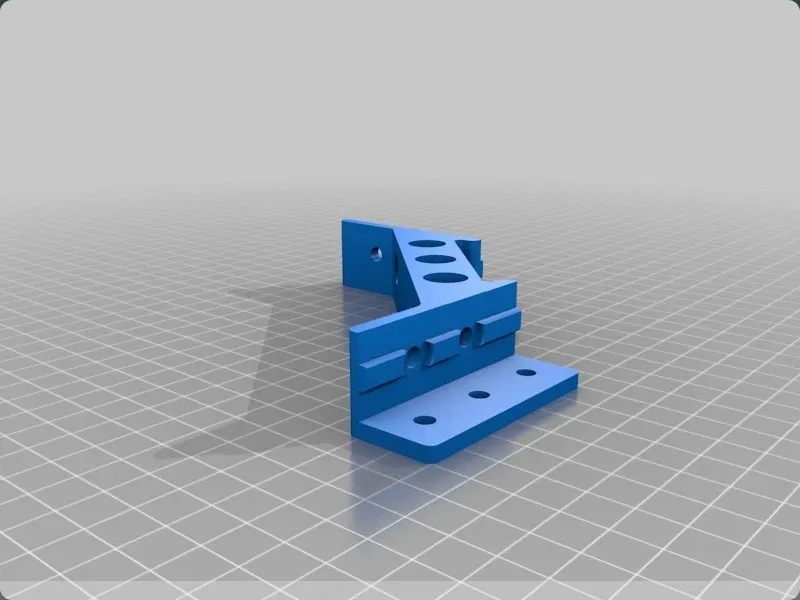

The two sided one probably does not add a lot of strength and takes much longer to print due to the support that is needed. But it looks cool.
I have only test fit the one sided one. I'll secure it into place tonight to make sure it fits.
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(4)
Gusset_-_One_Sided_45.stl
565.32 KB
2025-07-16
- Gusset_-_One_Sided_45_Brace_Offset_-_Extra_Strong-2.stl
615.32 KB
2025-07-16
- Gusset_-_One_Sided_45_Offset.stl
500.28 KB
2025-07-16
- Gusset_-_Two_Sided_45.stl
768.93 KB
2025-07-16
