Orange Pi 3b Case Rear Fan
Print Profile(1)
  • 3B Case - CopE

    1-disc

    PLA

    Designer

1

2

45

2

Released 2025-05-28
Details
Files(5)
Makes & Comments (0)

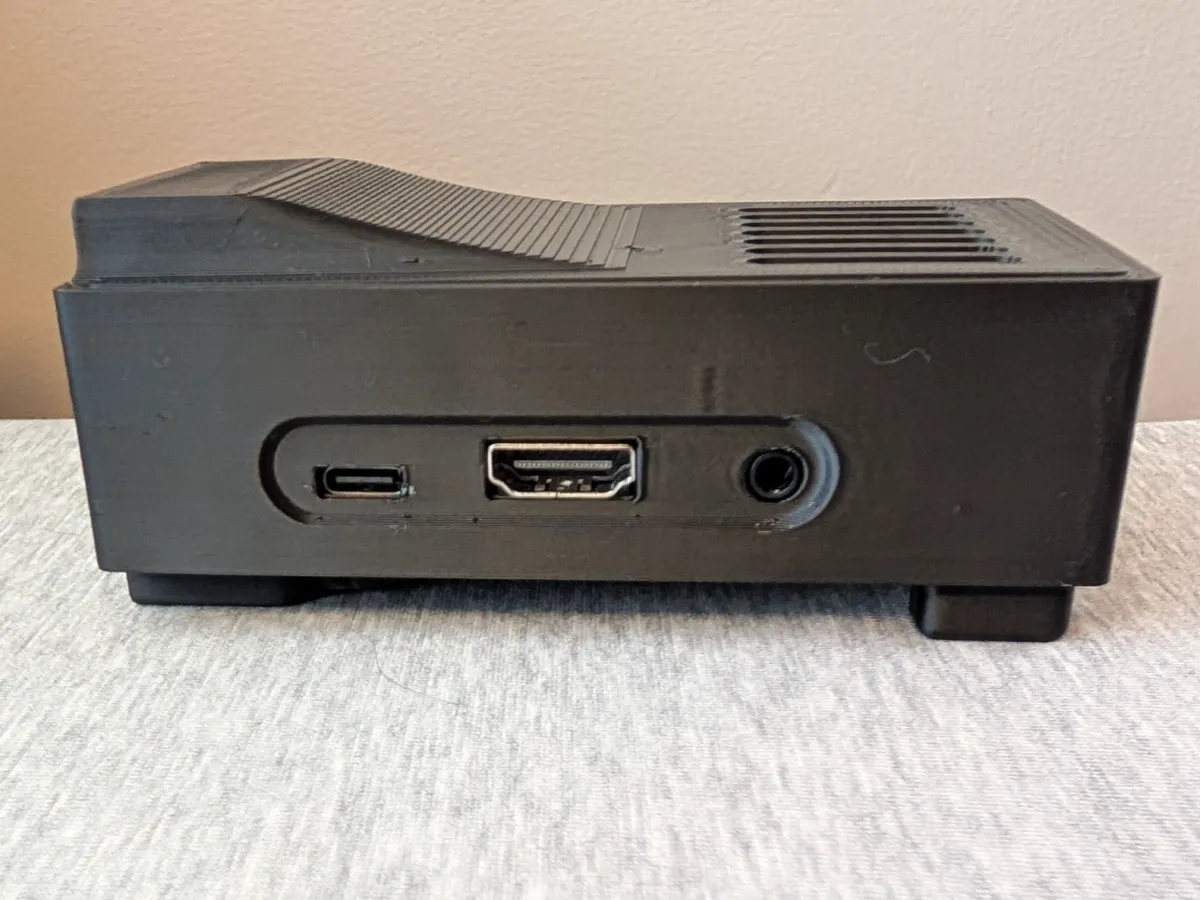

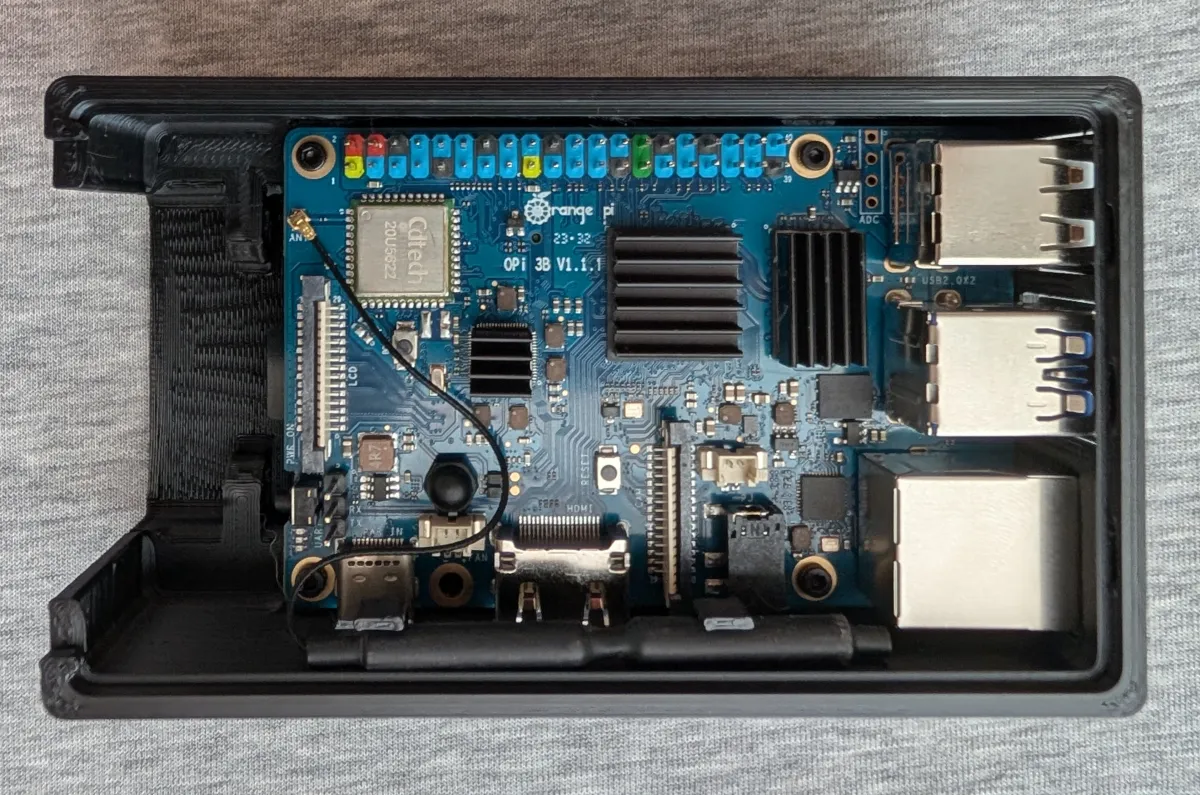

This is another case for the Orange Pi 3b v1.1.1 using a rear mounted 40mm fan. (It has sufficient length to work with the v2 version but I don't have one to test.) I am using an nvme drive mounted on the bottom and wanted to ensure that it got adequate airflow to stay cool. The antenna mounts internally above the side IO.

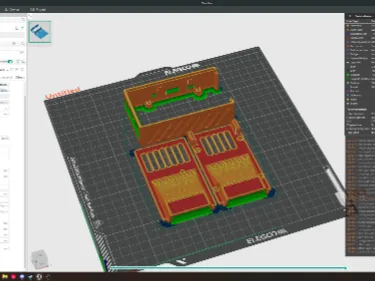

This print requires supports on all three pieces. I recommend loading my .3mf file to get an idea on where to put supports. Auto Tree will work, but manual normal supports are better. I uploaded 3 .stl files, each piece individual and all combined into one. I printed this in Polymaker CopE.





Required Hardware

  • 4x 3x5x4 Heat set inserts (Voron spec)
  • 4x M3x12mm SHCS
  • 4x M2x8mm SHCS
  • 4x M2 Nuts
  • 1x 4010 fan

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    See Description
    1

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
