OVERVIEW:

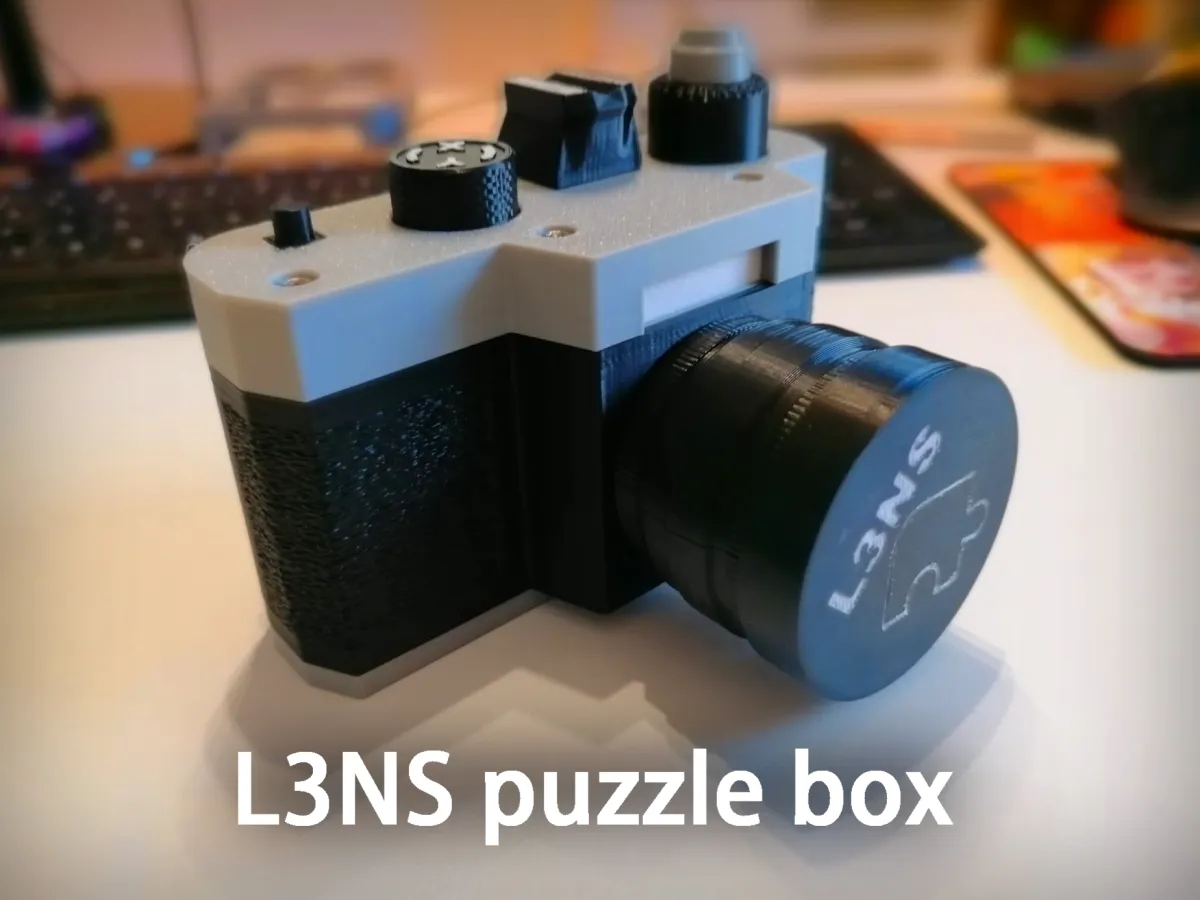

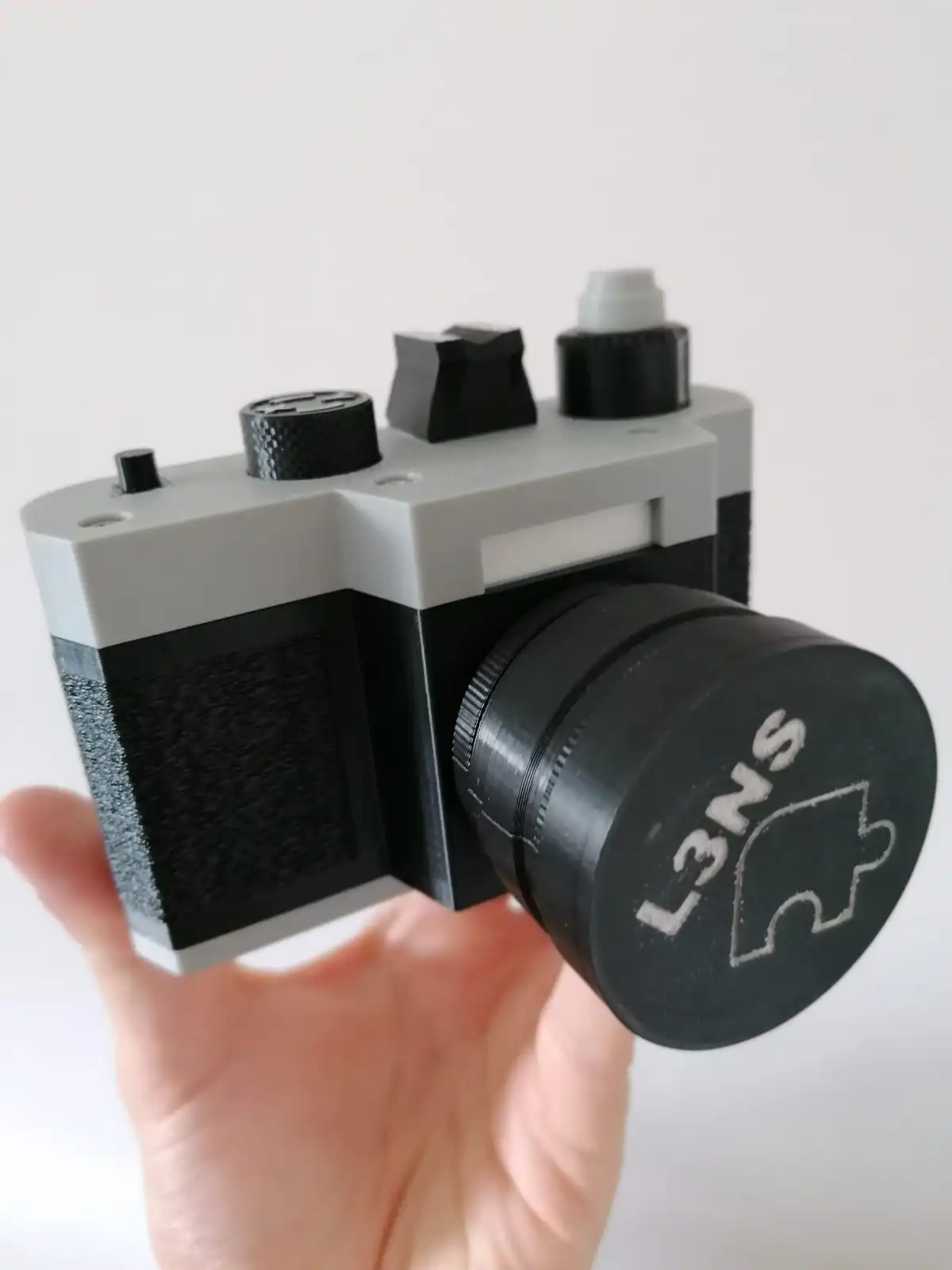

I designed this Camera Puzzlebox in Blender. Its quite simple but offers some clever mechanisms.

The Hidden room is about 80x35x20mm. Assembly Inscructions are available as a PDF.

Let me know if you have/had any troubles so i can improve the design/Instructions.

All Parts are Printed

• without support
• with a 0.4mm Nozzle
• 0.2mm Layer height
• on a Anycubic Kobra 2 Pro
• using normal PLA.

REQUIRED ADDITIONAL HARDWARE:

• 3x M3x40 Screw
• 3x M3x20 Screw
• 6x M3x12 Screw
• 22x 5x1 Neodym Magnets
• Super glue

Screws i used: https://www.amazon.de/dp/B0B3MGZ7T2?psc=1

Magnets i used: https://www.amazon.de/dp/B0CPKV624R?psc=1

Glue i used: https://www.amazon.de/Pattex-Sekundenkleber-Ultra-Gel-10/dp/B004PZJWA0/ref=sr_1_5_pp?sr=8-5

PRINTED PARTS:

Here a list of Parts you need sorted by the color i used so you can easily print multiple parts at once. Some parts can be painted for better visibility of Text/Numbers or if you have a Multicolor printer you can Print them in a diffrent color. But feel free to choose the colors you like.

Color Doesnt Matter:

1x LensPiston

1x LensGear

2x Snapping clip

1x yLockBackpart

1x xLockBackpart

Gray:

1x CaseBottom

1x Case Top

1x Interior

White:

1x Key

1x CodeCover

1x trigger

1x xLock (Black Numbers)

1x yLock (Black Numbers)

1x DisplayGear (Black Numbers)

Black:

1x Lens Cover (White Text)

1x Lens (Print with max. 10% Infill. Otherwise its too heavy and camera will Tip over)

1x Door (Print it upright and Brim is reccomended)

1x LensGuide

1x Viewfinder1 (White Lens)

1x Viewfinder2

1x Keyholder (White Details)

1x Codegear (White Text)

1x CaseMain (Optional Fuzzy Skin with „FuzzySkinObject“)

Video including Spoiler (Sorry for horrible quality. Didnt have equipment back then)
