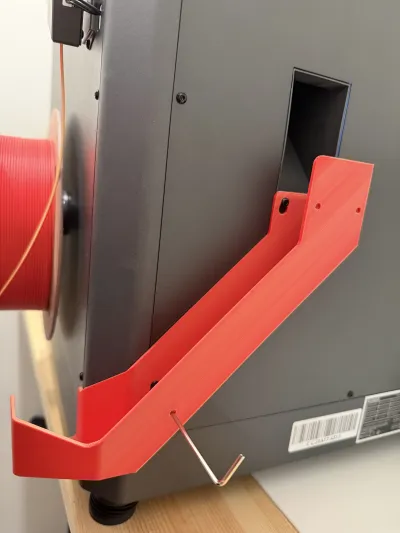

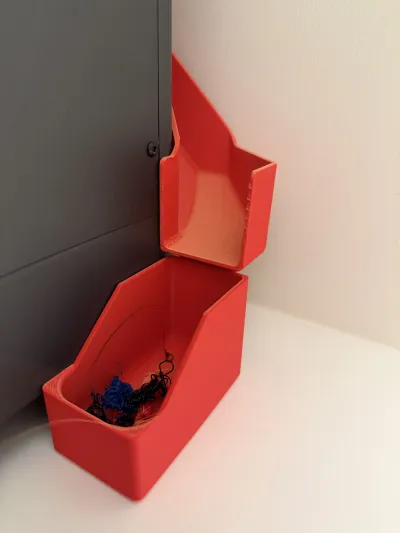

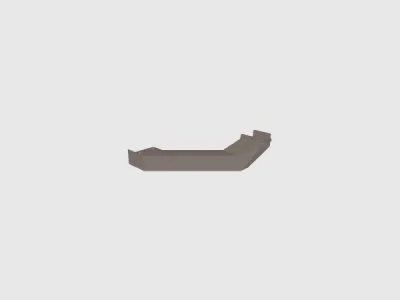

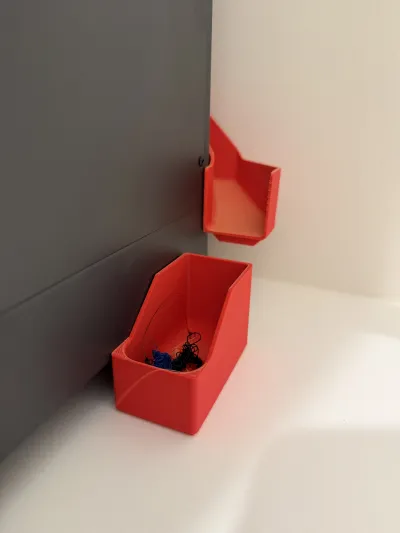

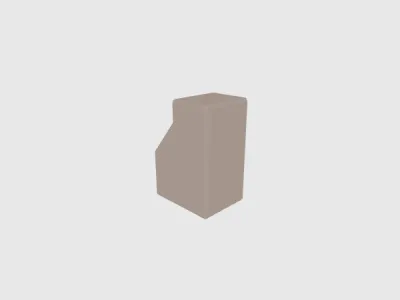

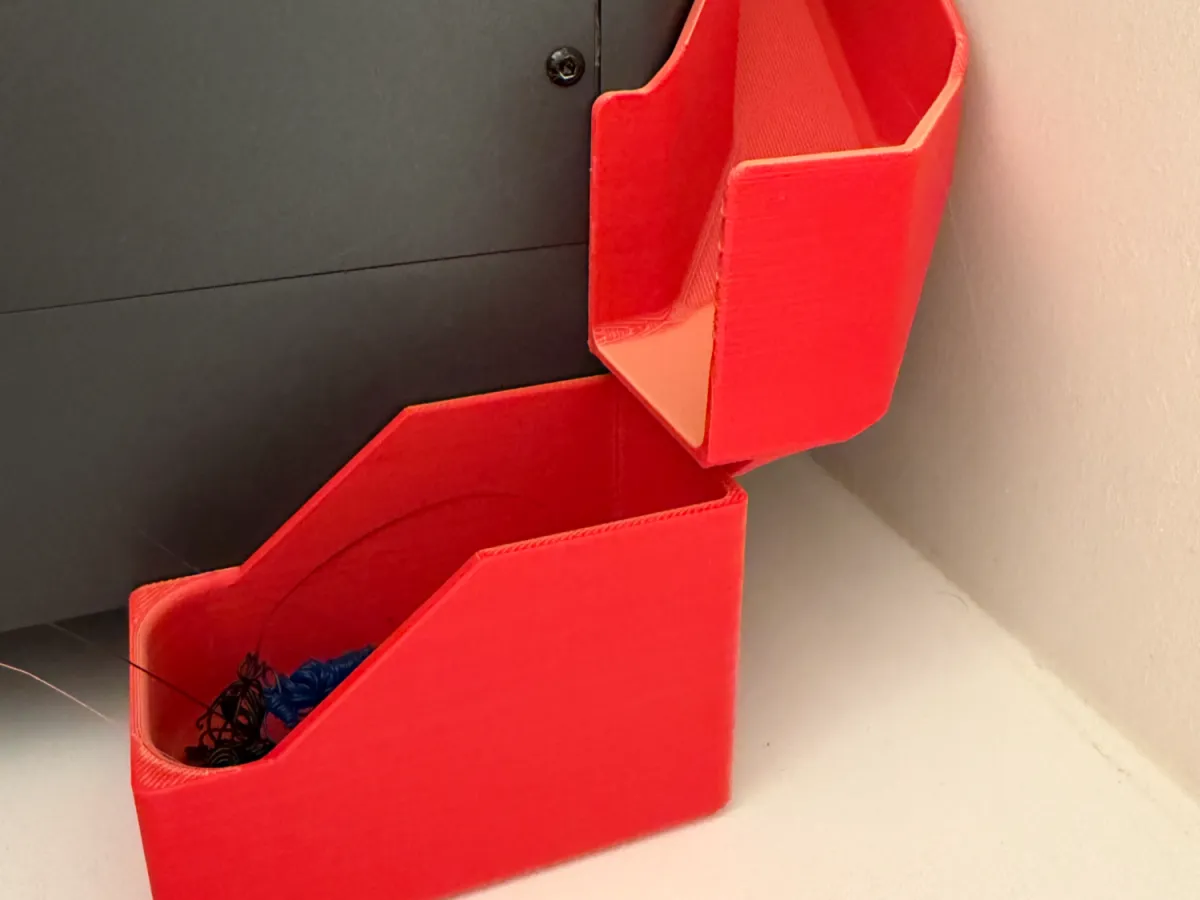

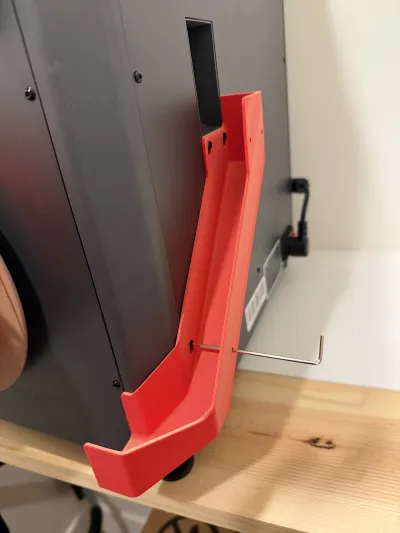

What This Is - A shallow, 30 mm deep, poop chute that is sloped all the to the exit and into the 40 mm wide bin on the right side. Uses existing screws to install and has access holes to use the included allen set that came in the Elegoo CC toolkit. Other versions stopped the slope too early and the purge would stall on the flat part of the slide.

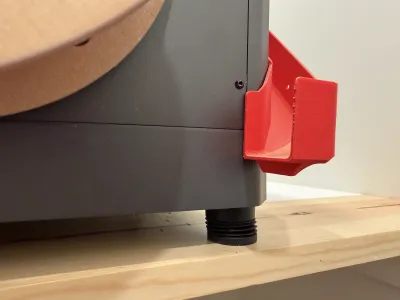

Why It Is Needed  - I hated the mess of the chute on the backside, and I could not find a chute that was shallow enough for my shelf. (I even swapped my power cord to a right angle to further decrease the depth.)

Inspiration - This is my own original SolidWorks design, but I was inspired by many other versions. Shoutout to this great community and the other two models I printed.
Elegoo Centauri Carbon - Poop chute - magnetic by BAS at 3dgo (dot) app.
Centauri Carbon Purge Chute & Collection Pot - Elegoo by CAtFabUK_1363936 at printables (dot) com.

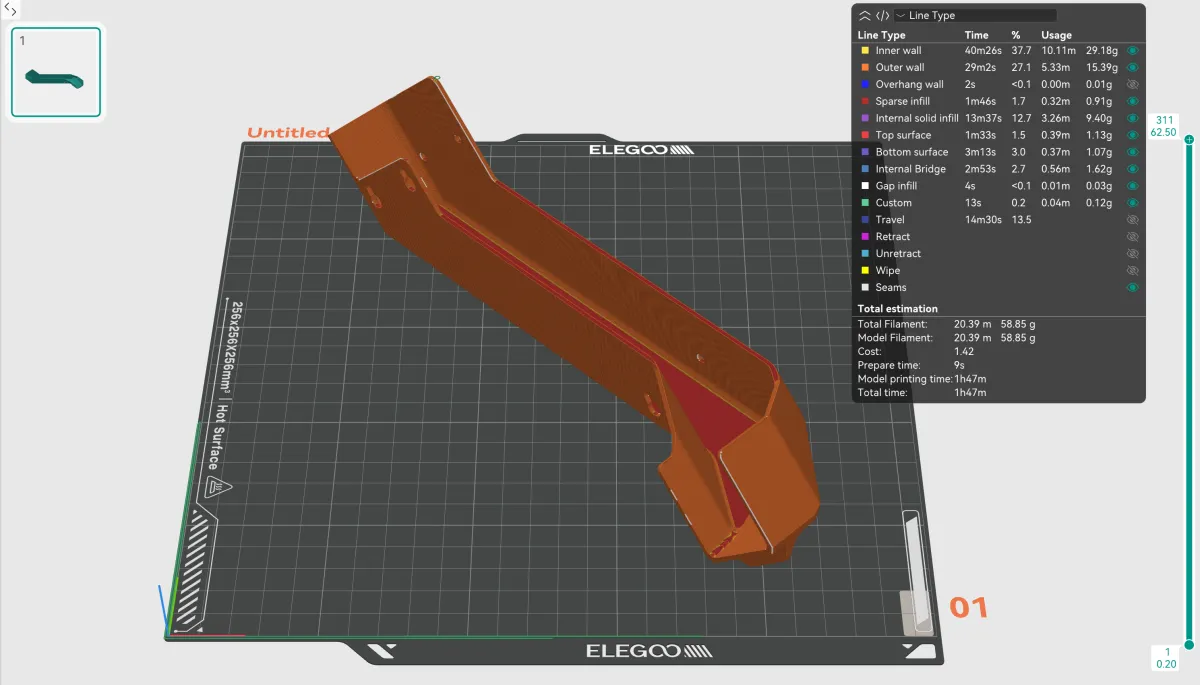

Print Settings

• 3 walls at 0.5 mm wall thickness. (The chute walls are 2mm and this made them solid.)
• No support and no raft/brims.
• Infill was Cubic (Feel free to pick anything that is 3d oriented as this is printed at an angle.)

Other Notes - Give a like if you enjoy it!
