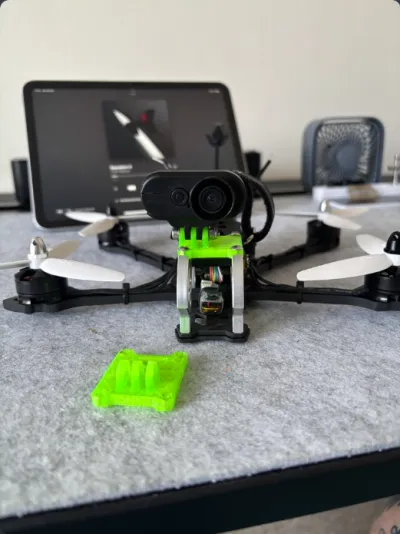

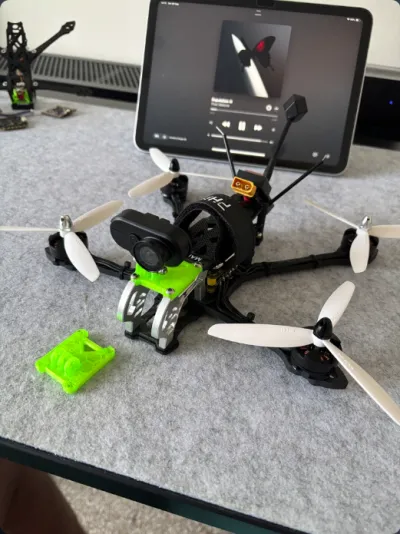

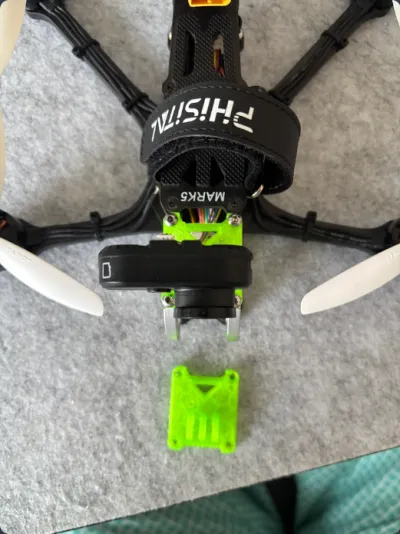

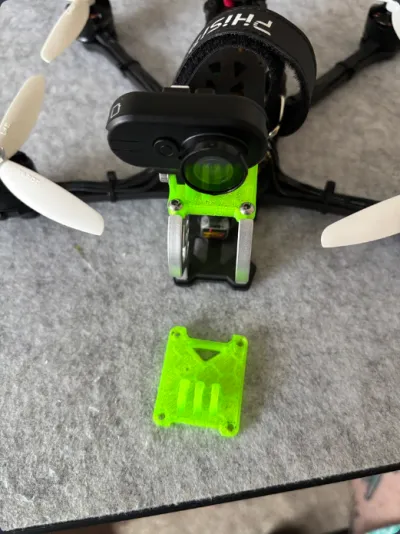

Here's a mount for the Hawkeye 4K Thumb camera to fit the GEPRC MK5 (and clones)

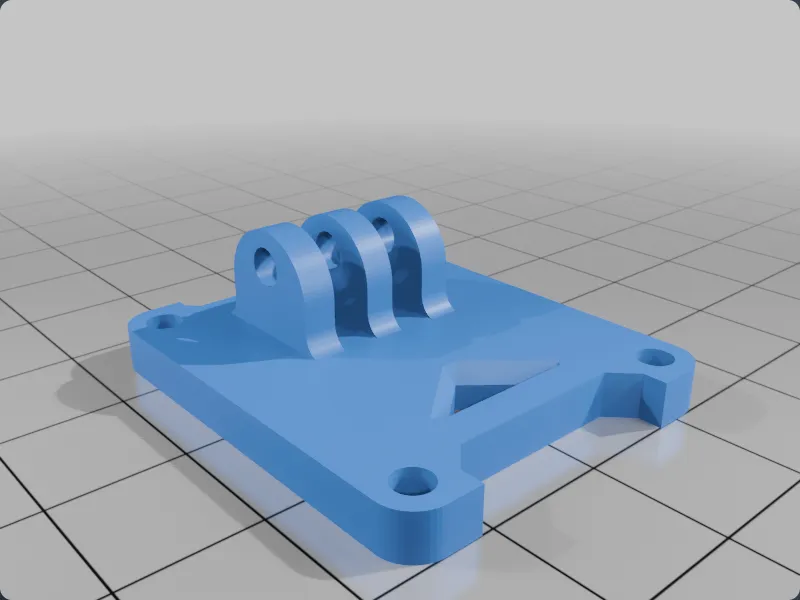

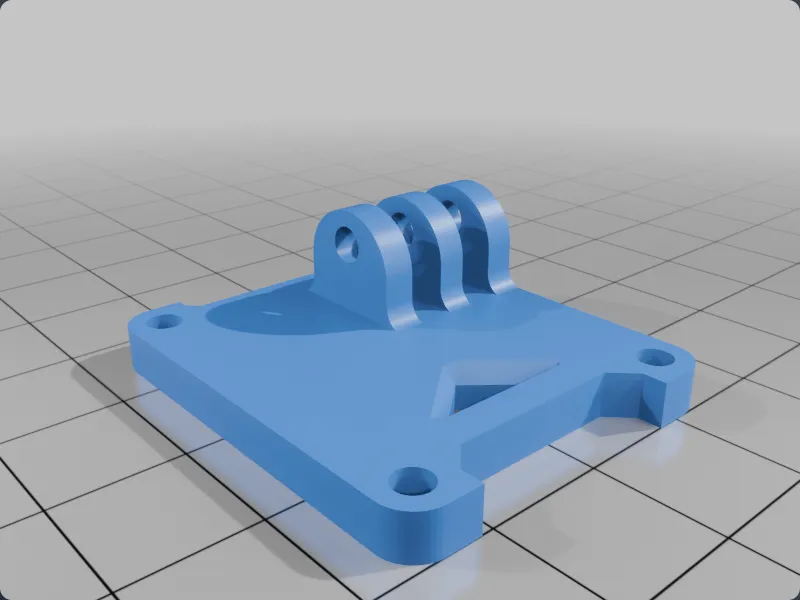

There's 2 versions included, a centred mount and an offset mount, the latter makes the camera lens sit centrally along the quadcopters centre line.
Both have a hole big enough for the wires to thread through.

Print in TPU. I went for 0.1mm, 10% hexagon infill with 3 perimeters and its pretty much eliminated shake.

This design is released into the public domain. Edit, sell, change etc... No limits.
Enjoy!

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
albine92

This model is licensed under the following terms:

No Copyright.

Models(2)

  • Hawkeye_MK5_Mount_centred.stl

    191.20 KB

    2025-07-06

  • Hawkeye_MK5_Offset_mount.stl

    190.32 KB

    2025-07-06
