Summary

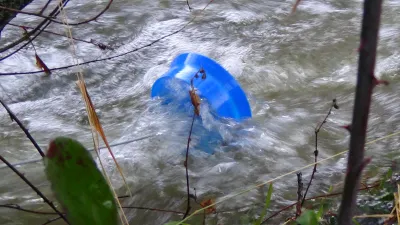

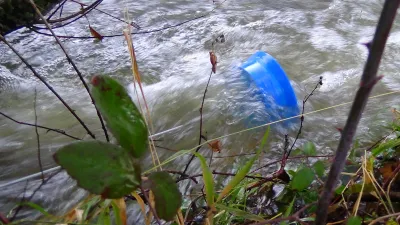

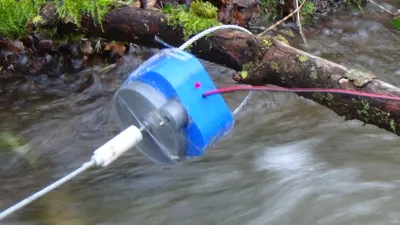

Very powerful, it does not need much water current.
I will make a wind turbine and a crank to be able to put also in the generator module.
Material you need:
1x 5mm steel bar or threaded bar. 50mm long
2x bearings 16mm outer diameter, 5mm inner diameter, 5mm thickness
2x 1mm wire or 1mm nail (Is used as a pin between the shaft and the large gear wheel)
1x AC 3 Phase Micro Brushless Generator 3-24V (4€ on ebay )
1x 5mm steel rope 120cm

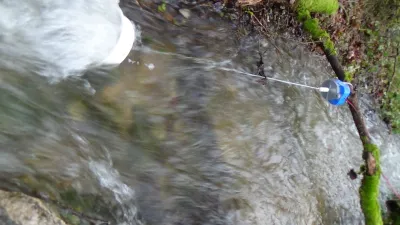

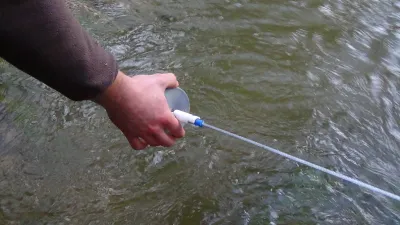

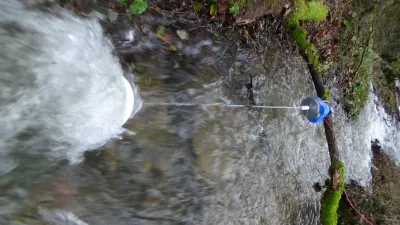

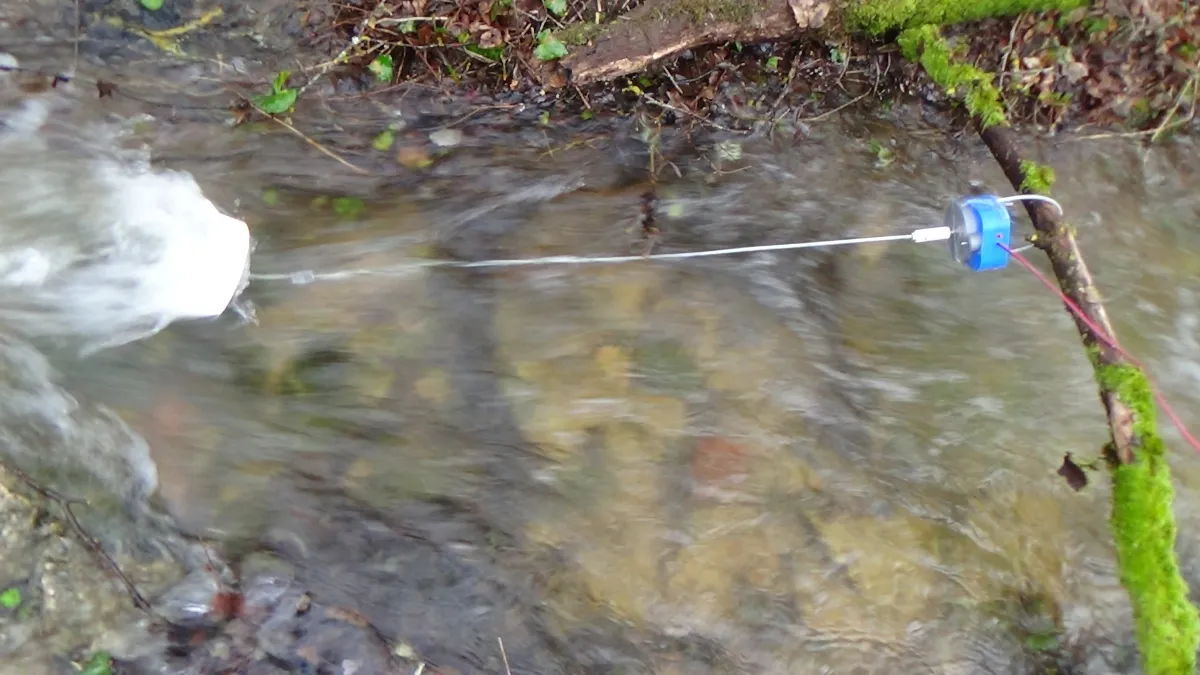

The steel rope to the turbine and connector is attached with two-component epoxy adhesive.
is based on this turbine: www.youtube.com/watch?v=iNuZaaJZd3w&list=FLpbNG1kAJ3rVOZ7e8484KWQ&index=1&t=31s
Print Settings
Rafts:
Yes
<p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div>
Resolution:
0.2mm
<p class="detail-setting infill"><strong>Infill: </strong> <div><p>0%</p></div>
Notes:

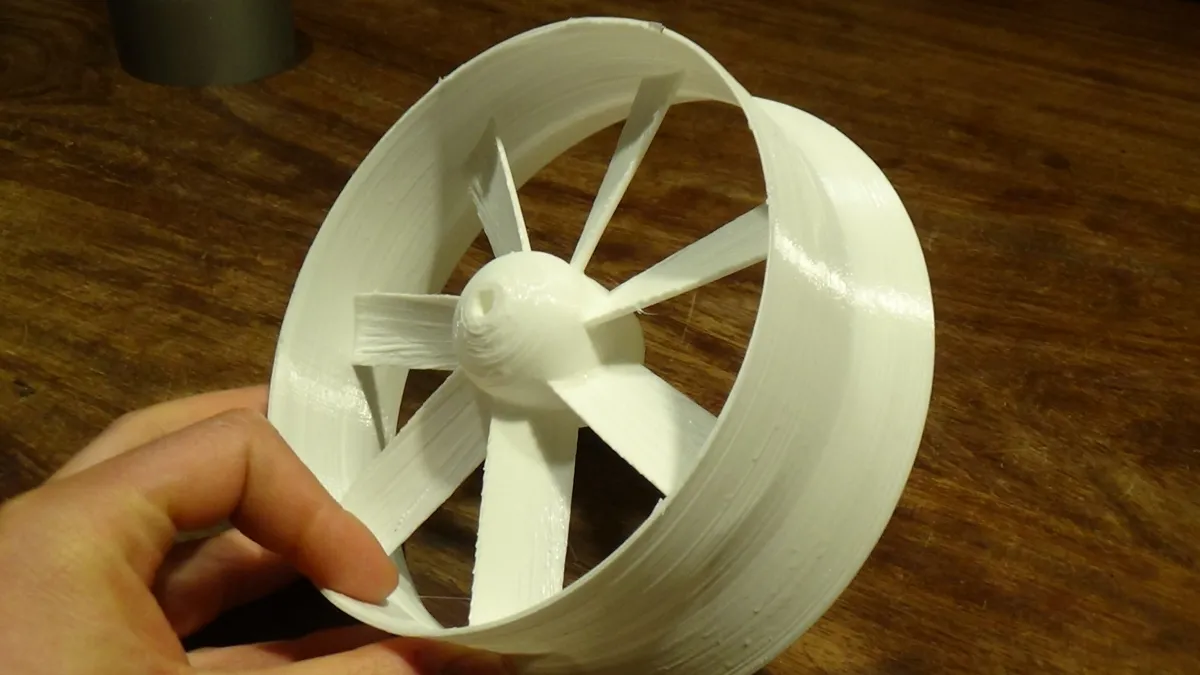

Turbine:
0% infill
wall thickness 0.8mm
top/bottom thickness 1mm
layer height 0.2mm
PLA
Print with the widest part upwards
Gears and conecctors:
100% infill
wall thickness 1mm
top/bottom thickness 1mm
layer height 0.25mm
PLA
Case:
20-25% infill
wall thickness 1mm
top/bottom thickness 1mm
layer height 0.25mm
PLA
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(10)
carcasa.stl292.66 KB
2025-03-20
pequeña.stl239.34 KB
2025-03-20
uion_generador.stl267.17 KB
2025-03-20
union_turbina.stl259.55 KB
2025-03-20
tapa.stl399.11 KB
2025-03-20
grande.stl1.27 MB
2025-03-20
turbina.stl12.99 MB
2025-03-20
tapa_carcasa_cables.stl75.57 KB
2025-03-20
manivela.stl288.95 KB
2025-03-20
carcasa_cables.stl492.86 KB
2025-03-20
View all(10)
