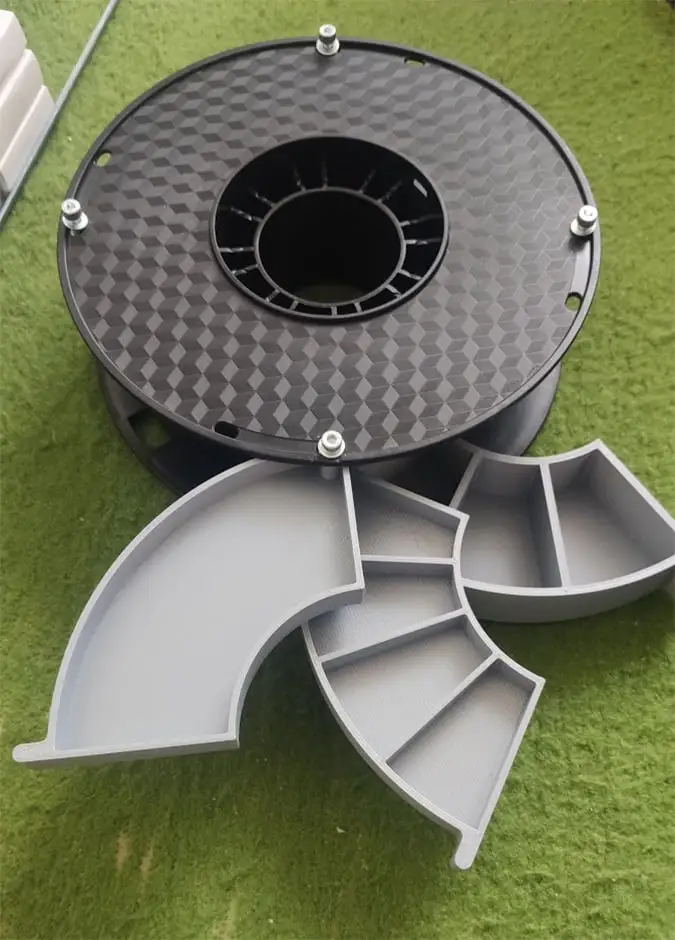

Full customizable Spool drawer organizer, choose box which you want, combine and assemably...

inner diameter 88mm
outer diameter 198mm

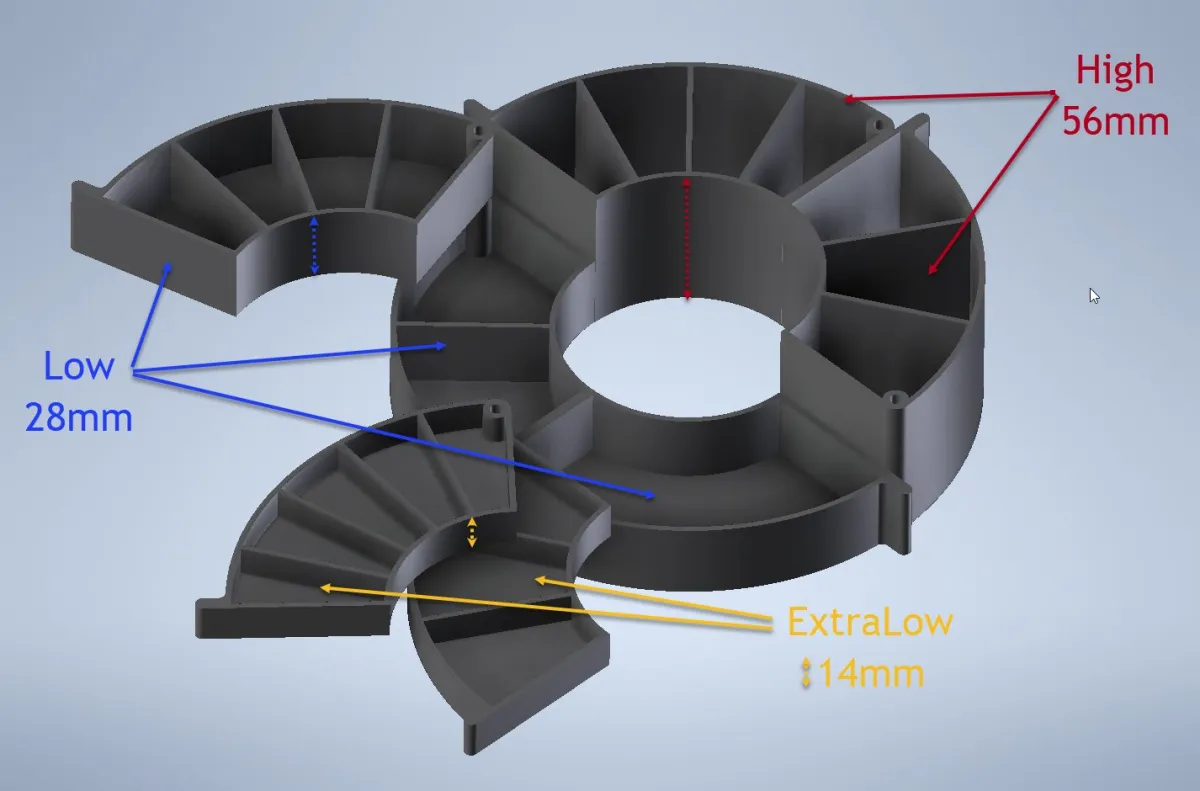

High = full height of spool (56mm)
Low = 1/2 from High (28mm)
ExtraLow = 1/2 from Low (14mm)

• box without partition
• box with 1 partition
• box with 2 partition
• box with 3 partition
• box with 4 partition

thickness wall : 2mm

Also you'll have to drill holes in the spool and use a long screw M4x65, M4x70 or pole through all the filaments.

Enjoy !

24/9/2020 UPDATE

• added modified boxes
  • extra_low_3_box_B
  • extra_low_4_box_B
  • extra_low_5_box_B
  • extra_low_5_box_C
  • extra_low_5_box_D
  • low_3_box_B
  • low_4_box_B
  • low_5_box_B
  • low_5_box_C
  • low_5_box_D
  • high_3_box_B
  • high_4_box_B
  • high_5_box_B
  • high_5_box_C
  • high_5_box_D

Print Settings

• Printer brand:

  Creality

• Printer:

  Ender 3

• Rafts:

  No

• Supports:

  No

• Resolution:

  0,3

• Infill:

  20-30%

• Filament brand:

  Gembird Plus

• Filament material:

  PLA
