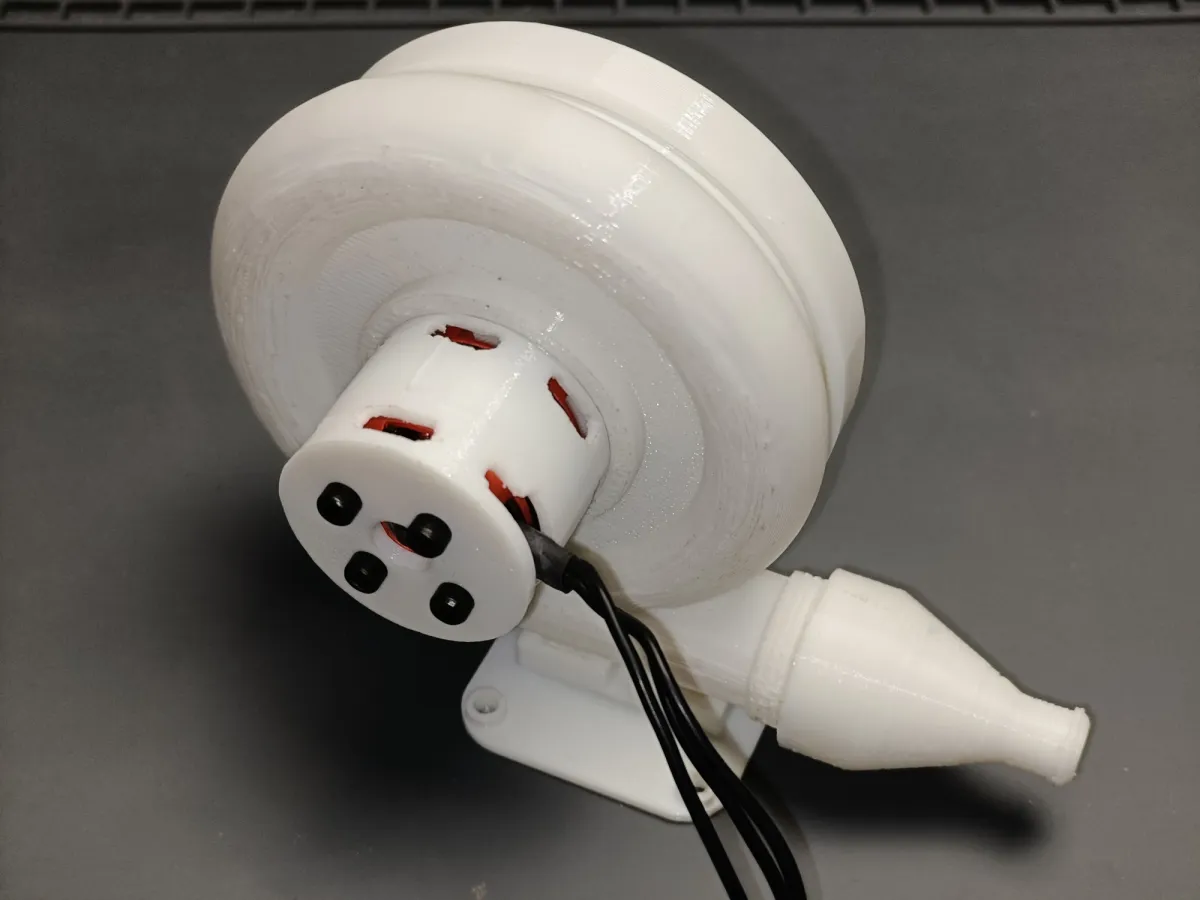

I made this small but powerful air blower for fun. While I am sure there is a lot of room for improvement it works quite well.

Don't pay too much attention to the print quality as this was printed on a very old printer.

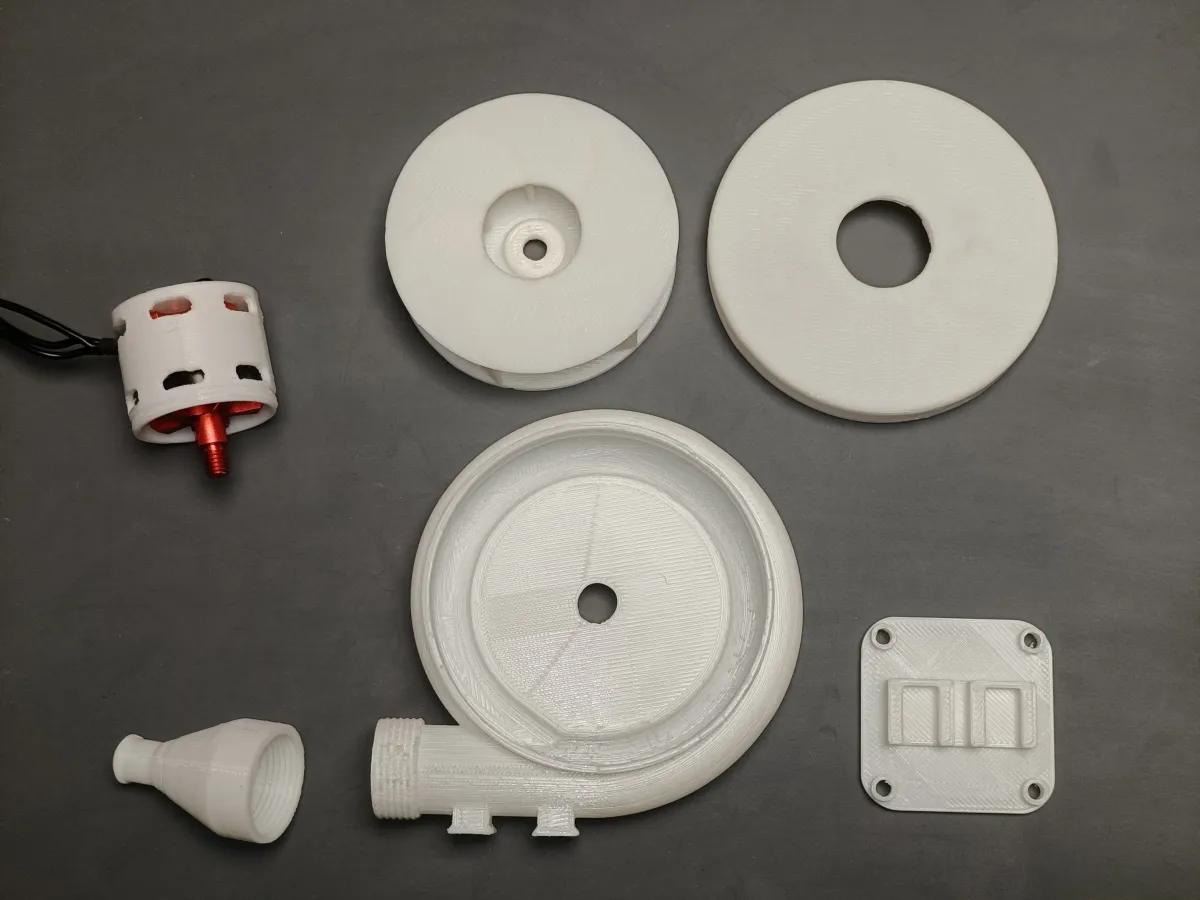

The impeller is made of two parts that need to be glued together, everything else threads or slots together.



It uses A RaceStar BR2212 brushless motor (https://s.click.aliexpress.com/e/_c3ngfARN) secured in place with 4x M3 6mm long screws (these came with the motor). You also need a ESC to drive the motor (something like this https://s.click.aliexpress.com/e/_c3jw42pv) and either a microcontroller to send the signal to the ESC or a small servo tester (https://s.click.aliexpress.com/e/_c4V9murl). You will also need a battery for power.







Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(7)

  • model file image
    base_bracket.stlDesigner

    154.96 KB

    2026-02-09

  • model file image
    impeller_bottom.stlDesigner

    672.35 KB

    2026-02-09

  • model file image
    impeller_top.stlDesigner

    343.64 KB

    2026-02-09

  • intake_cover.stlDesigner

    1.67 MB

    2026-02-09

  • main_body.stlDesigner

    6.81 MB

    2026-02-09

  • model file image
    motor_holder.stlDesigner

    799.69 KB

    2026-02-09

  • model file image
    nozzle.stlDesigner

    1.55 MB

    2026-02-09
