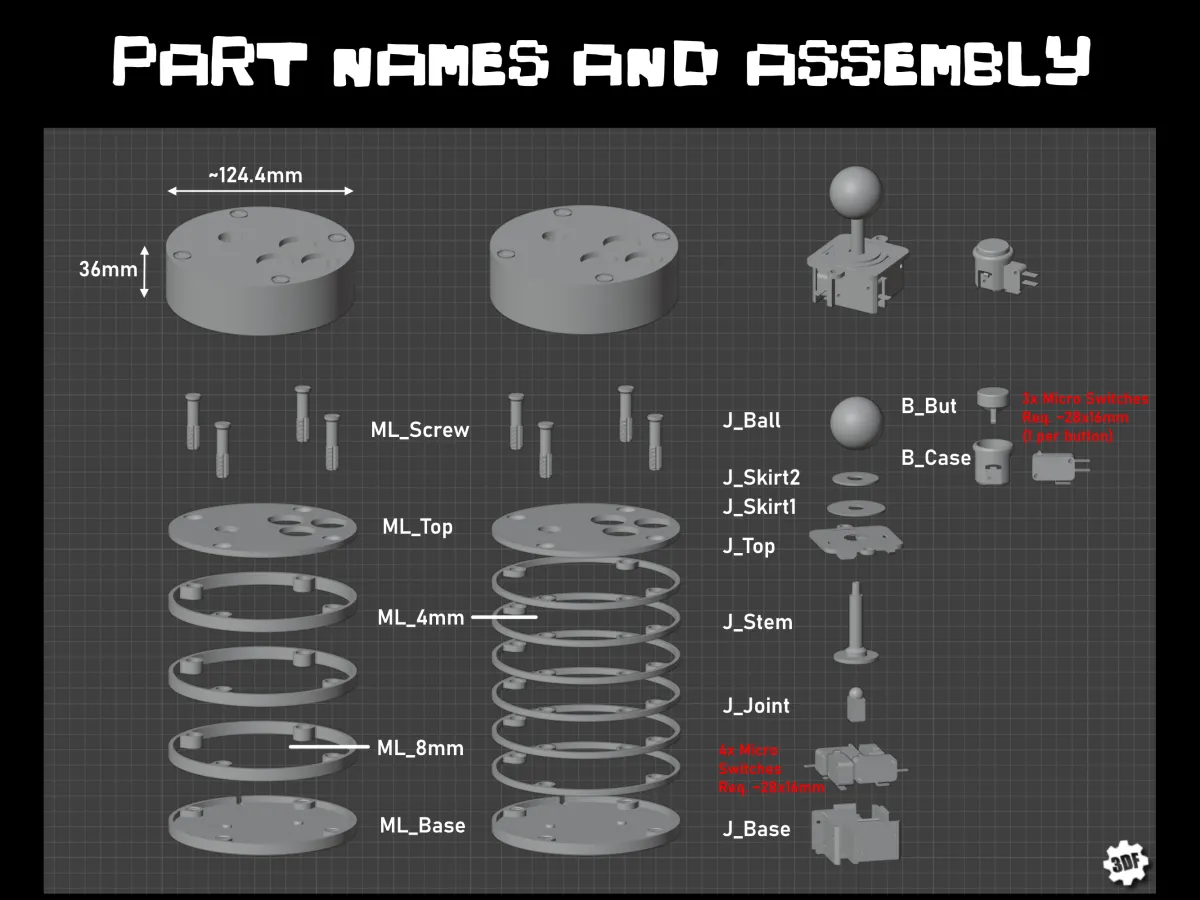

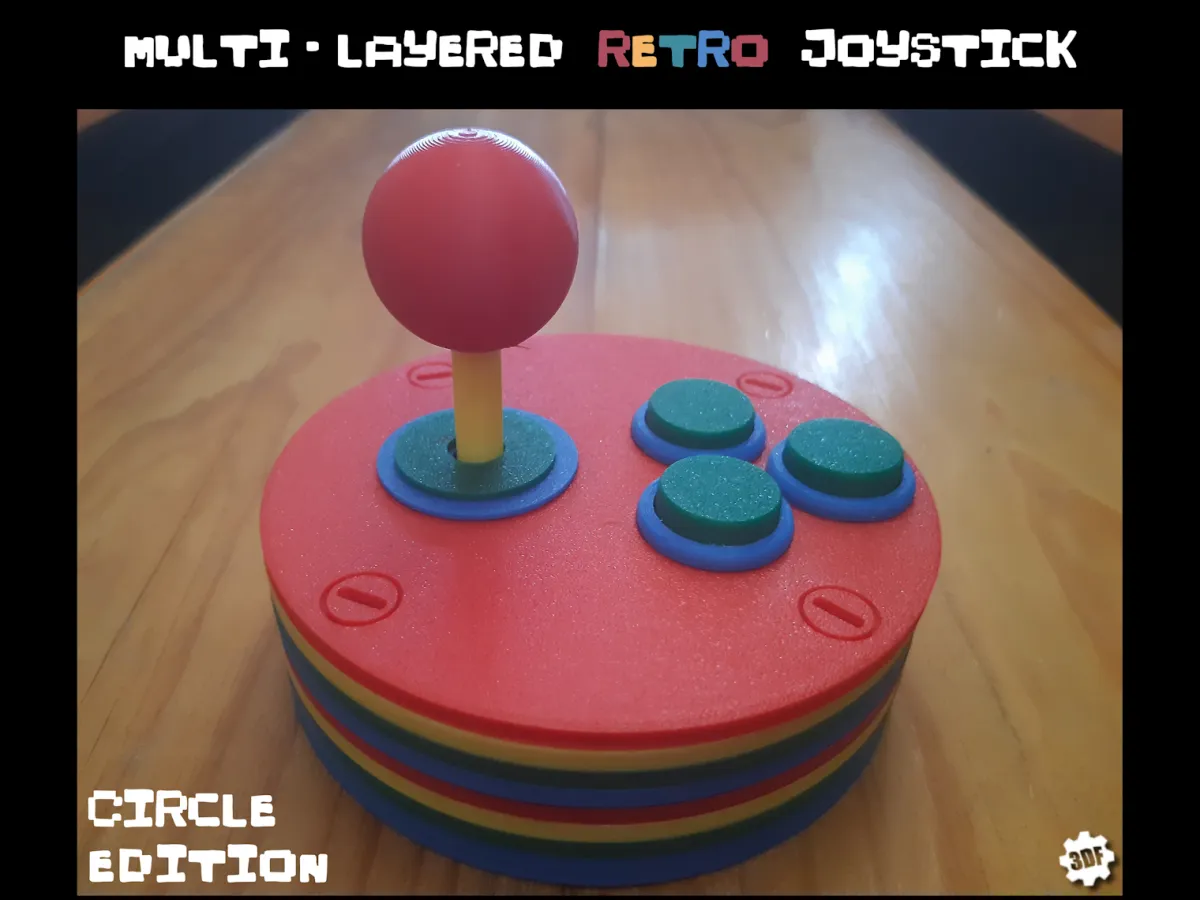

This is the first of a three part series of multi-layered joysticks that use my arcade joystick mechanism (V3) and three of the push buttons from my Arcade push button collection.

I included them here with this design so you don't have to go searching for them.

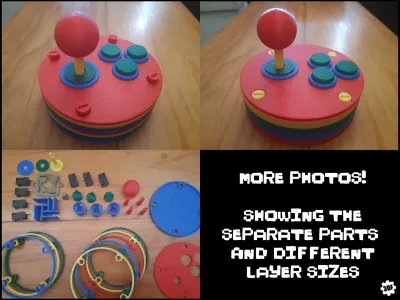

There are a lot of colour combinations I would like to try with the layers, like black and gold, all pastels or even a sunset one if its possible to get the different shades of filament.

Print the bolts on their heads and if the balltop gives you issues, stick it on a raft.

As far as wiring goes, I envisioned wiring this up in the retro way to a D9 connector, with one of the buttons being the same as joy up, (for jump or accelerate etc) and two fire buttons depending on the retro machine you're plugging it into. Or you could just squeeze a RP2040 in there and reprogram that.
