DN80 Pipe Elbow Spacer, 5 cm High, φ105
Print Profile(1)
  • 0.2 mm layer height, 4‑layer walls, 50% infill density

    1-disc

    PETG

    Designer

0

0

4

0

Released 2026-02-01
Details
Files(1)
Makes & Comments (0)

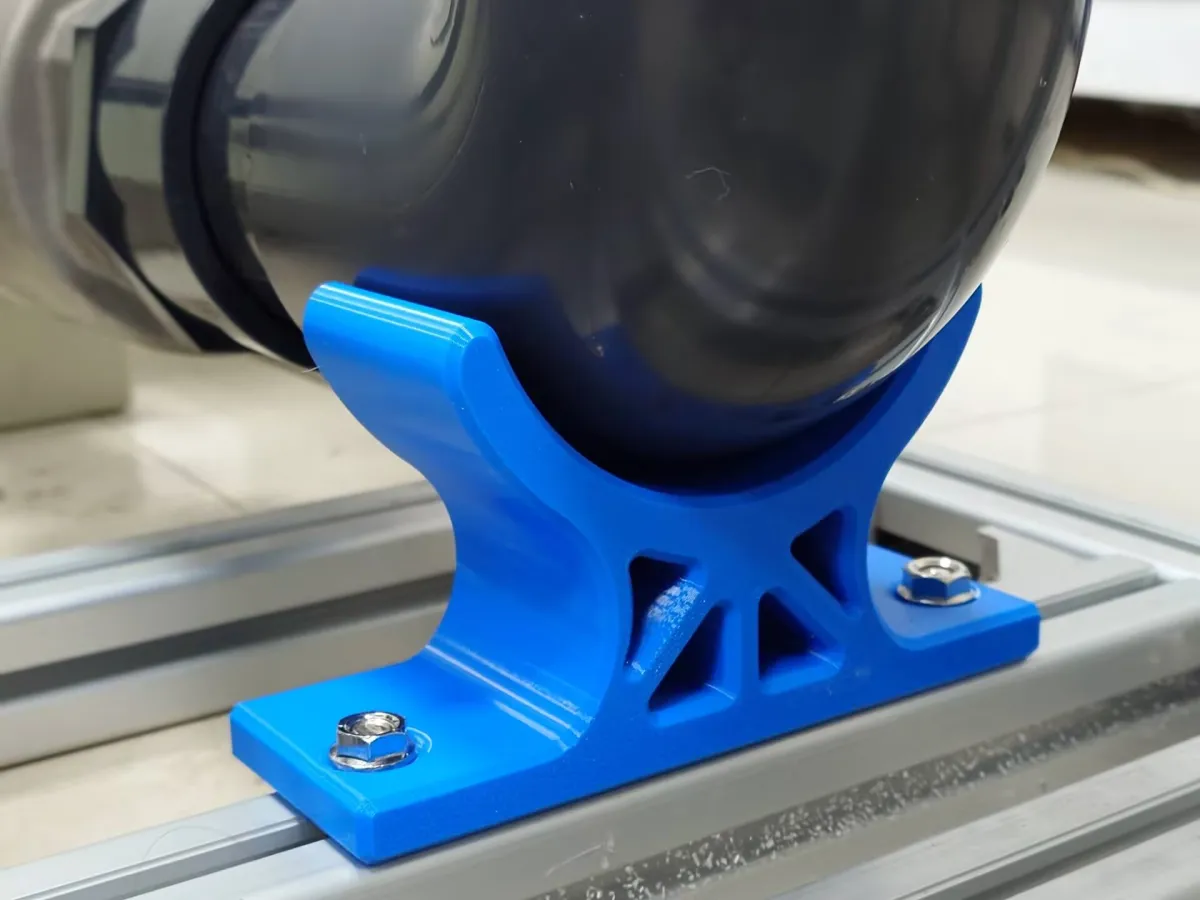

DN80 connector bracket, 5 cm in height, 105 mm in diameter, with M8 screw holes



During testing, a 1.5-meter UPVC pipe, an electromagnetic flow meter, and several pipe fittings were securely supported. After one week of operation under continuous pump vibration, no issues were observed.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(1)

  • model file image
    DN80水管弯头垫块 5cm高 φ105.3mfDesigner

    1.79 MB

    2026-01-30
