Xiaomi AI Speaker LX04 base
Wireless charging base
Desktop Storage
Xiaomi
- 0.2 mm layer height, 3‑layer walls, 30% infill density
1-disc
PETG
Designer
1
0

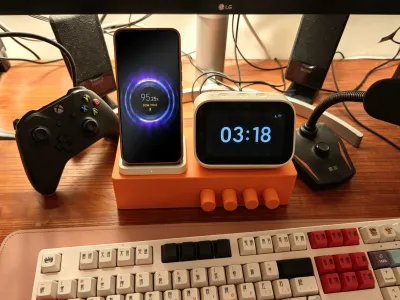

A display stand made for Xiaomi’s 50W wireless charger and the Xiao Ai touchscreen speaker LX04.
The Xiao Ai LX04 had a broken speaker, so after flashing its firmware, I connected it via Bluetooth to a Bluetooth module. The module then converts the signal to a 3.5mm output, which is sent to an active speaker for improved sound quality. At the same time, an AUX module allows audio from the computer to be routed simultaneously to the active speaker.
The components I used overall include:
① A Bluetooth-to-3.5mm input/output module
② A 12V-to-5V power supply module with two USB ports
③ A 4-in-1-out AUX audio module
④ A 12V, 1.5A power adapter
⑤ A 3.5mm male-to-male audio cable
⑥ A 3.5mm male-to-female audio extension cable
The overhang on the cover wasn’t handled properly; those familiar with the parameters can adjust the overhang and cooling settings themselves.
Originality of the Model
The author declares that this work is their personally original model
