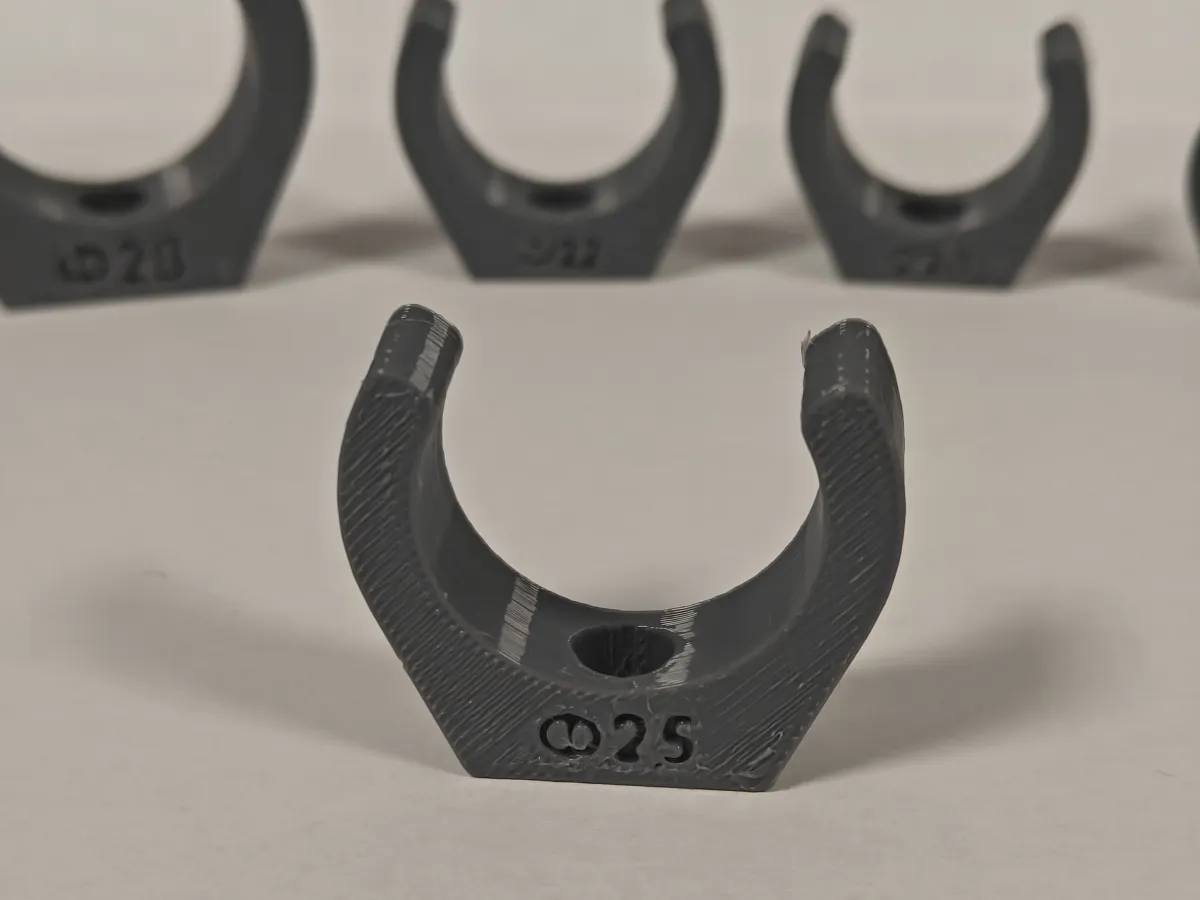

This is the "Small Diameter" extension of my pipe mounting clip set, designed for organizing smaller conduits, cables, or water pipes.

Just like the larger version, these feature a robust C-style design that snaps securely onto the tube, with a flat base for stable mounting.

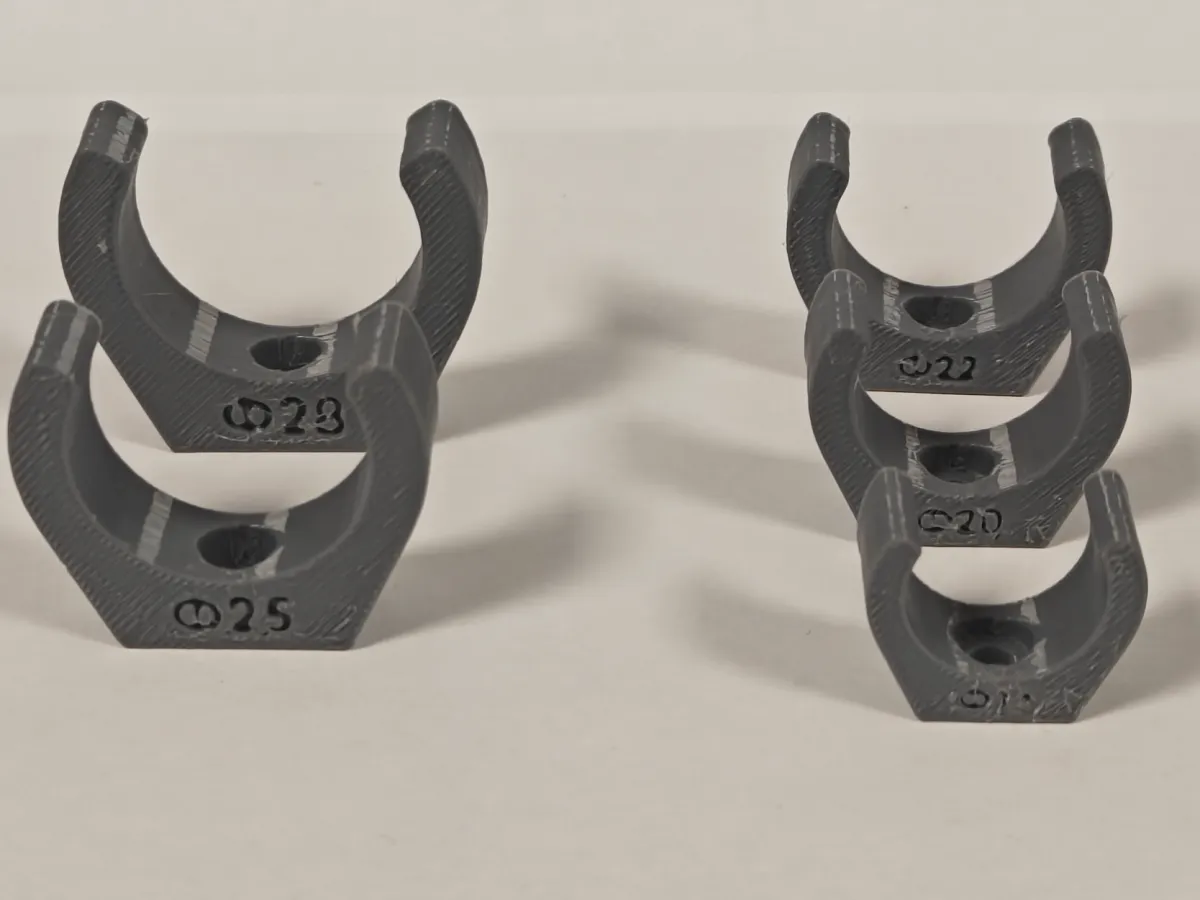

The Set Includes 5 Small Diameters:

• 16mm (Standard electrical conduit size)
• 20mm
• 22mm
• 25mm
• 28mm

Key Features:

• M3 Mounting: The central hole is specifically sized for M3 screws/bolts, making them perfect for precise installation in tight spaces or on 3D printer frames.
• Easy Identification: Each clip has the diameter ($\Phi$) embossed on the front for quick sorting.
• Clean Organization: Perfect for running cable management tubes or securing pneumatic lines in your workshop.

Printing Instructions:

• Orientation: Print standing upright on the flat base.
• Supports: None required.
• Material: PETG or ABS is recommended for the best "snap" flex without breaking. PLA works for static mounting.
• Walls: 3 perimeters recommended.
