t hex handle

35
6

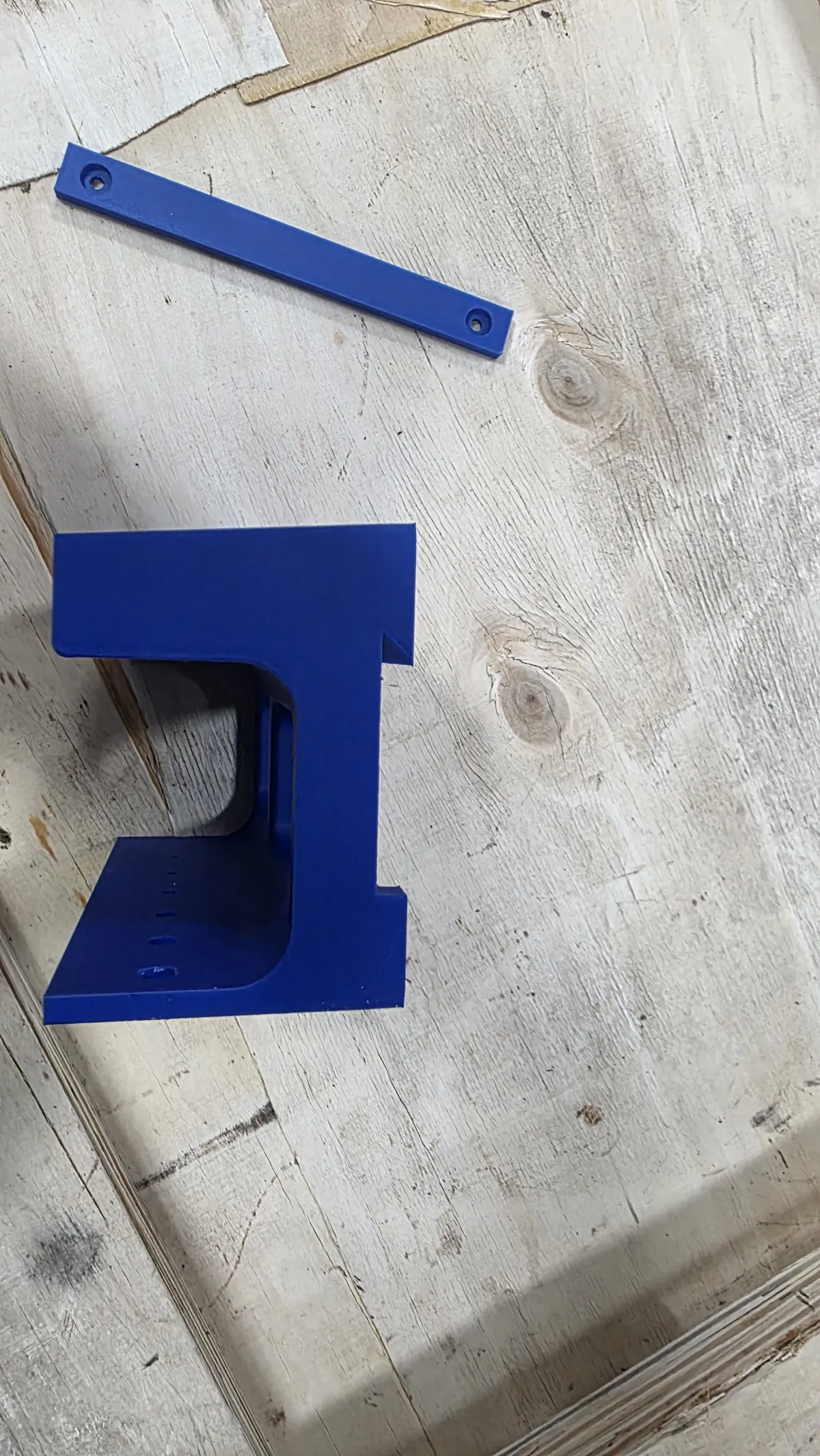

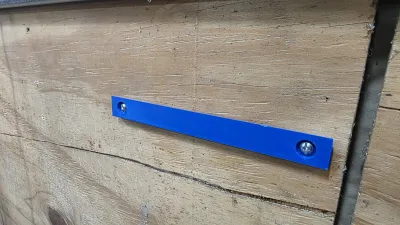

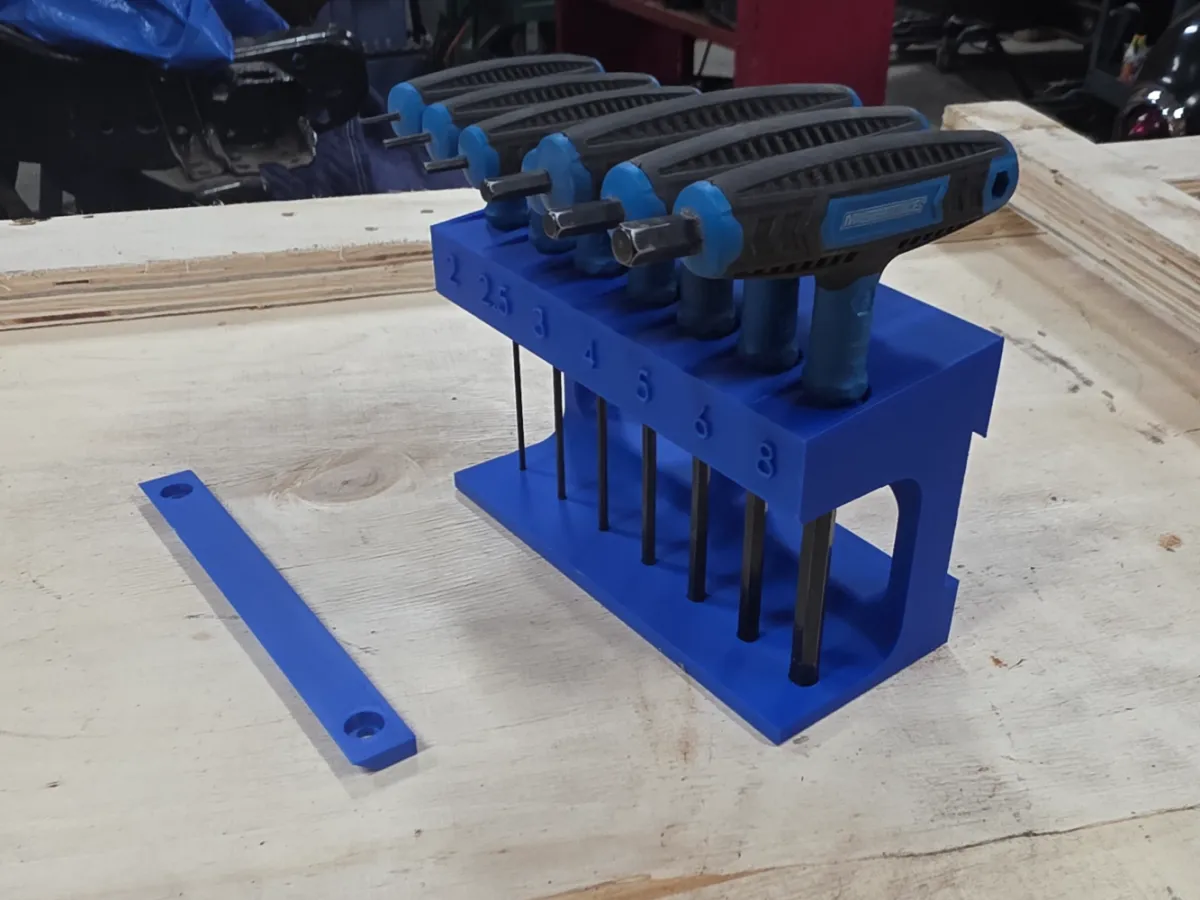

I have a set of T handle hex/torx tools that came in a decent “rack”. The problem is that the rack would not fit my tool boxes. I designed this one to use a french cleat that is screwed to the wall, but will also stand on it's own when removed from the cleat. I print the cleat with the counterbore facing up, and it does just fine with no supports. Bores are designed for a #8 pan head sheet metal screws.
Models included for SAE, Metric, and Torx sizes. I designed the holes to be on the tight side, as they will wear in, and there is nothing worse than dropping one of these sets and the tools scattering.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Models(7)
SAE T handle rack.3mfDesigner194.97 KB
2026-01-18
T handle holder torx.3mfDesigner179.99 KB
2026-01-18
french cleat.STLDesigner29.96 KB
2026-01-18
T handle holder metric.STLDesigner436.51 KB
2026-01-18
T handle holder SAE.STLDesigner554.38 KB
2026-01-18
T handle holder metric.STLDesigner435.73 KB
2026-01-18
T handle holder torx.STLDesigner491.39 KB
2026-01-18
View all(7)
