mini fan
portable fan

25
2

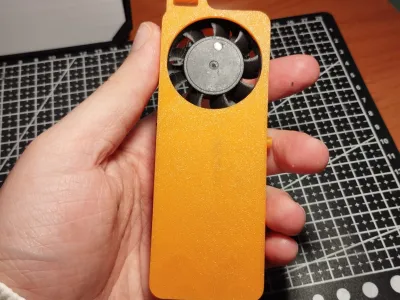

This is a small portable 40mm fan which you can adjust the power using the potenziometer on the side. To make this project it is expected you know how to do basic soldering and you have basic solder supply's, all of the other components will be in the Bill of materials below. The wiring is in the last photo but for those who can't see it:
-Battery + and - to TP4056 B+ and B-
-TP4056 Out + and Out- to MT3608 Vin + and Vin -
-MT3608 Vout + and Vout - to correspectly Fan + and Center leg of slide switch
And finally Fan - to one of the two legs of the slide switch (depending on witch direction you want to slide the switch to turn it on)
Warning: Because the power of the fan is adjusted by adjusting the step up module, and it can go over the rated voltage of the fan, it is recommended to increase power with caution, also be mindfull that the more you turn the potenziometer the less autonomy you will have out of your battery
Bill of materials
- NameQuantityNotes
- 140mm 12v fan1
- 2Rectangular Lipo battery1Minimum 500mah, it needs to be 20mmx40mm
- 3Micro slide switch1
- 4TP4056 Usb C Charging module1
- 5MT3608 Step Up1Any Step Up module with the golden potenziometer on the side should work
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
No Copyright.
Models(4)
Bottom_CaseFan.stlDesigner70.79 KB
2026-01-16
Top_CaseFan.stlDesigner61.12 KB
2026-01-16
PotenziometerCaseFan.stlDesigner31.04 KB
2026-01-16
Case Fan.3mfDesigner69.82 KB
2026-01-16
