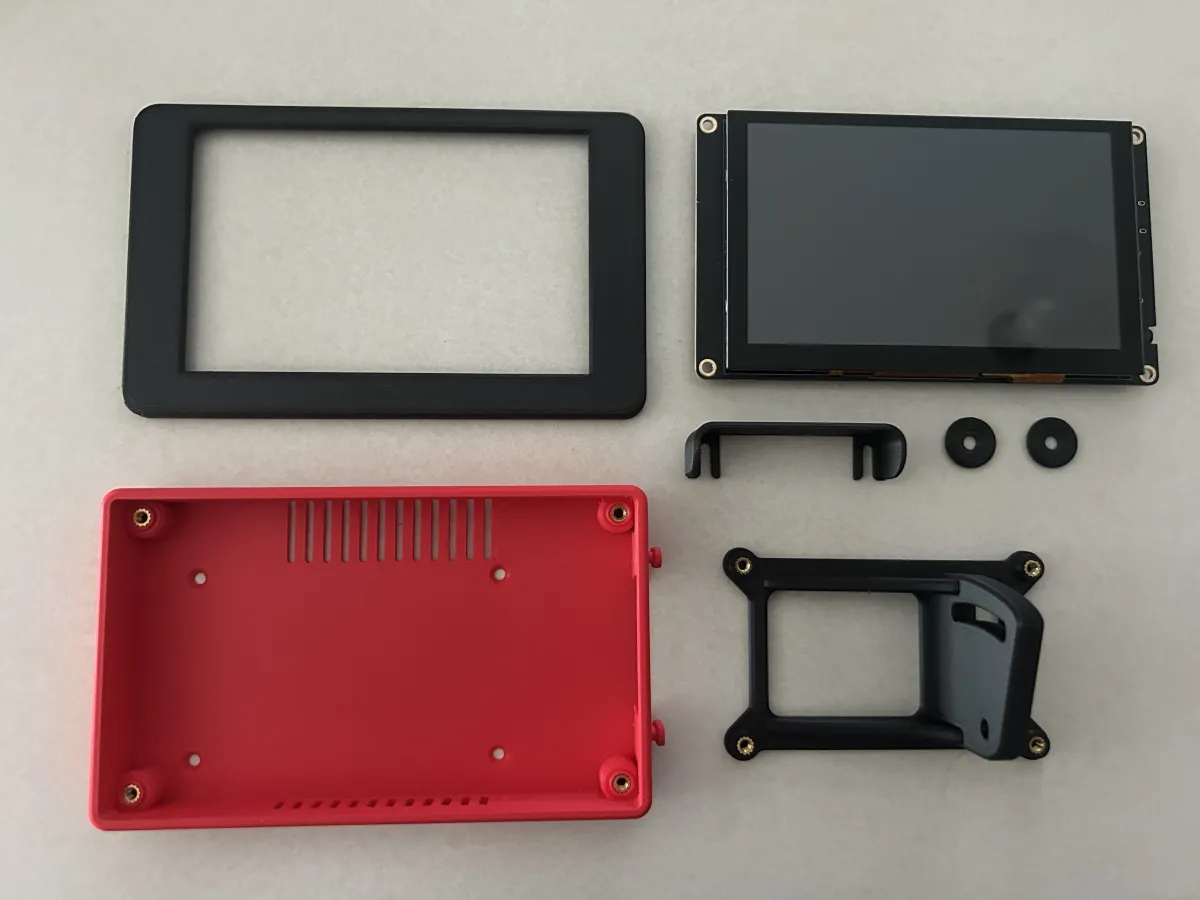

This case is for the Elecrow 5 Inch display model number DIS05490T. It has a cable guard to protect the connectors and the display frame is a snap fit. The washers are for mounting the bracket to the extrusion but optional.



Required hardware:

2 - M4x12 pan head screws

2 - M4 T-nuts

4 - M3x8 taper head screws

4 - M3x5 pan head screws

8 - M3x4x5 heated brass inserts

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M4x12 pan head screws
    2
  • 2
    M4 T-nuts
    2
  • 3
    M3x8 taper head screws
    4
  • 4
    M3x5 pan head screws
    4
  • 5
    M3x4x5 heated brass inserts
    8
