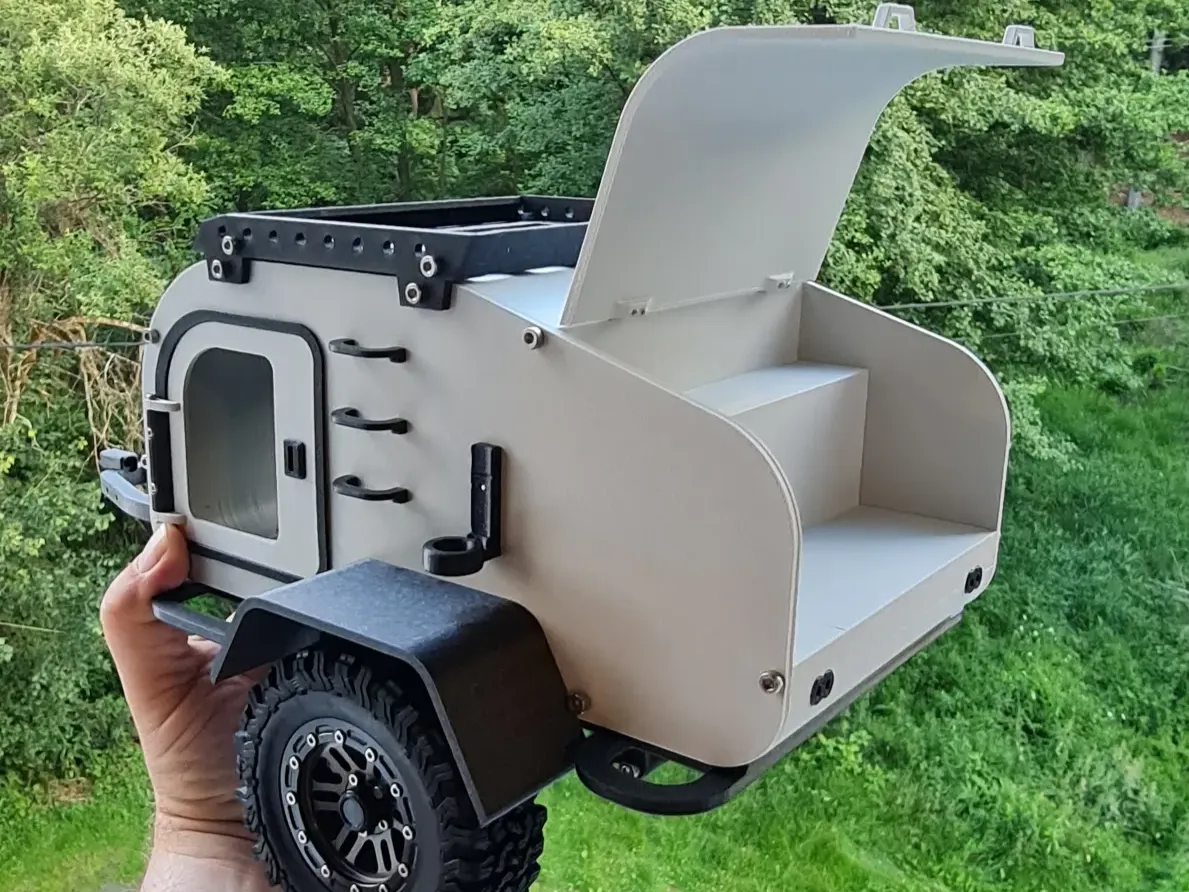

EXPEDITION OFFROAD CAMPER

I recommend following the Build Guide when assembling.

The list of necessary hardware is in the Build Guide.

Please contact me in case of questions or any confusion.

UPDATES:

2024/11/08 - 001_Drawbar_v2 with holes for 1/10 Scale wheel stand (modified hole diameter)

2024/11/25 - 015_Side_no_holes.stl - without holes for ladder and PB bottle

2025/02/22 - 001_Drawbar_v3 - modified for higher strength.

2025/02/22 - 001_Drawbar_v4 A+B - modified for higher strength (Choose a solution that will suit you).

2025/08/06 - axle v2 - reinforcement option diameter 4 mm

2025/12/05 - Modified Bearing block to version 2. For 5x10x4 bearings, it is possible to omit parts 005_Axle_element_outside_2x.stl and 006_Axle_element_inside_2x.stl. The tire is then mounted on part Axle_A_Hex_12_2x.stl. Use an M5 washer between the Bearing block and the Axle hex. Then just use the M5 screw and self-locking nut.

2025/13/07 - Mirroring was probably quite complicated. Added doors and frames left and right.
2026/31/03 - Added additional building guide for Print Profile v3.

Recommended wheels

I can recommend the TN2001GM. Or similar up to 90mm diameter.

Warranty

The author makes no guarantees for completeness and security. The instructions may contain errors in the description of the procedure and in the list of necessary hardware. The author has taken great care in the creation of the print files, but problems can still occur. The author is not responsible for any issues that may arise.

The model is provided as is. The necessary tools must be available for assembly.

If you print it, I'd love to see it. Share here or tag me on instagram.

Instagram: @nb_crawling
