Handle for M2,5: M3: M4 tappers
Print Profile(0)

  • Earn points by adding print configurations

1

1

22

3

Released 2026-01-09
Details
Files(3)
Makes & Comments (0)

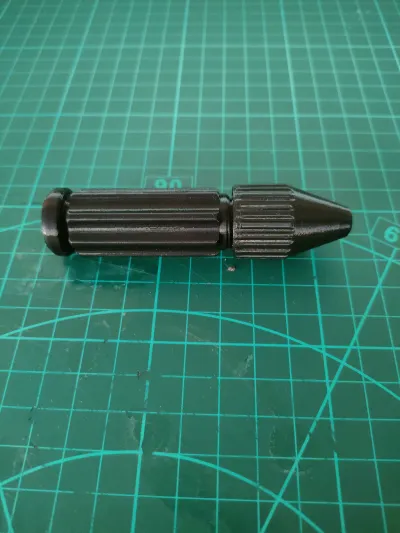

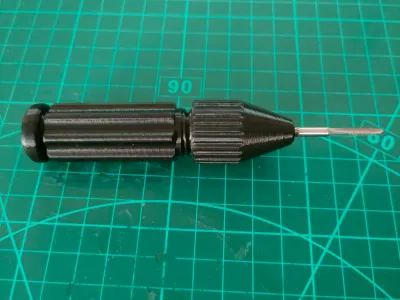

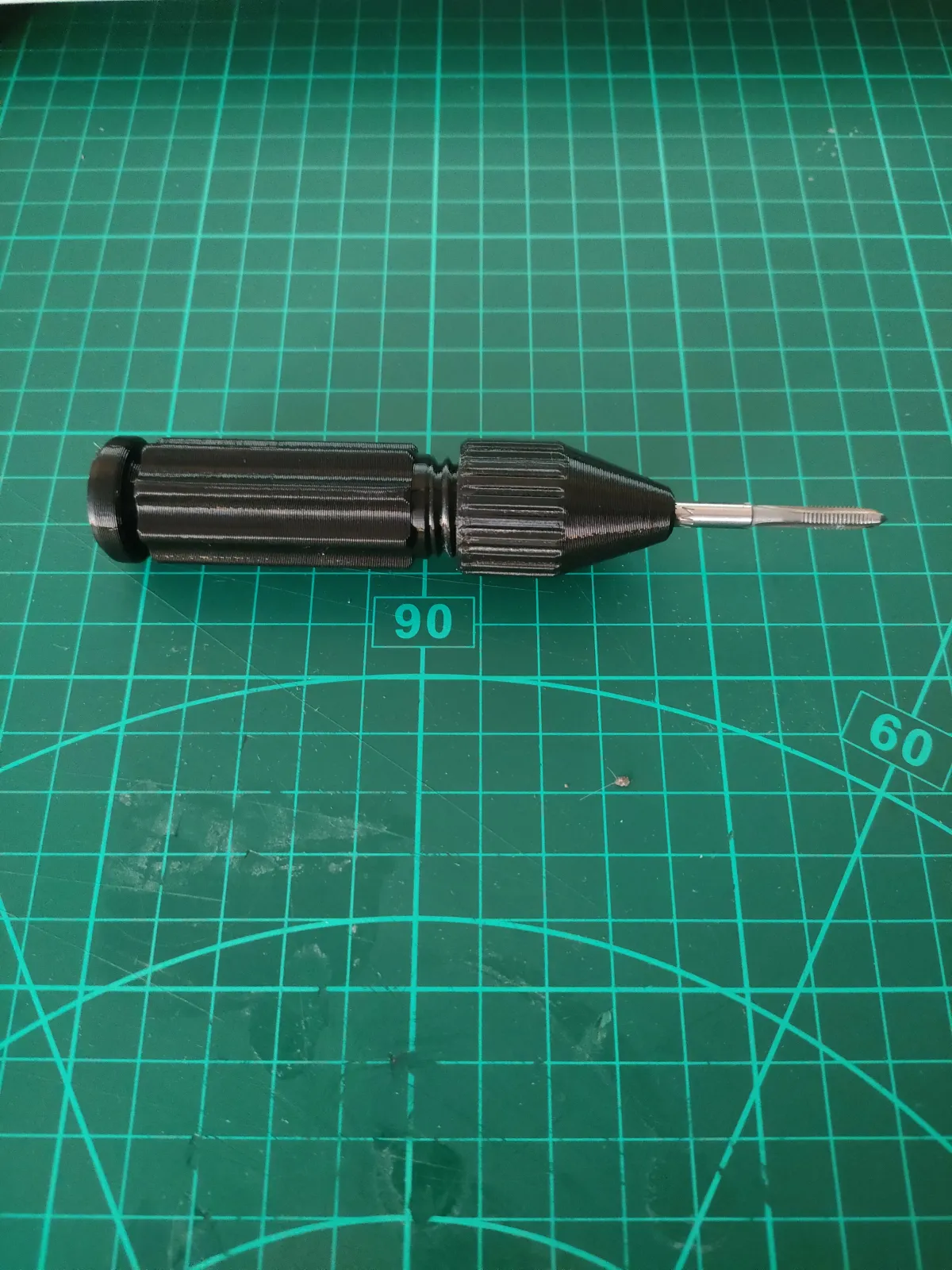

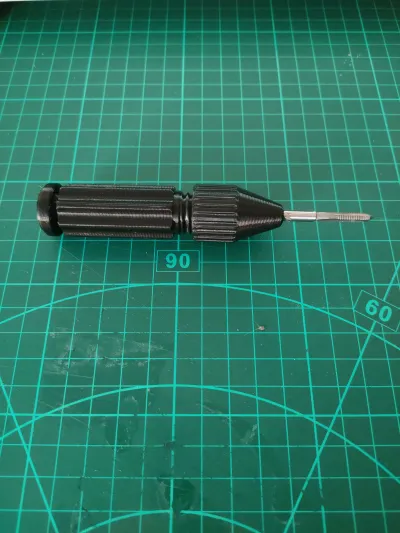

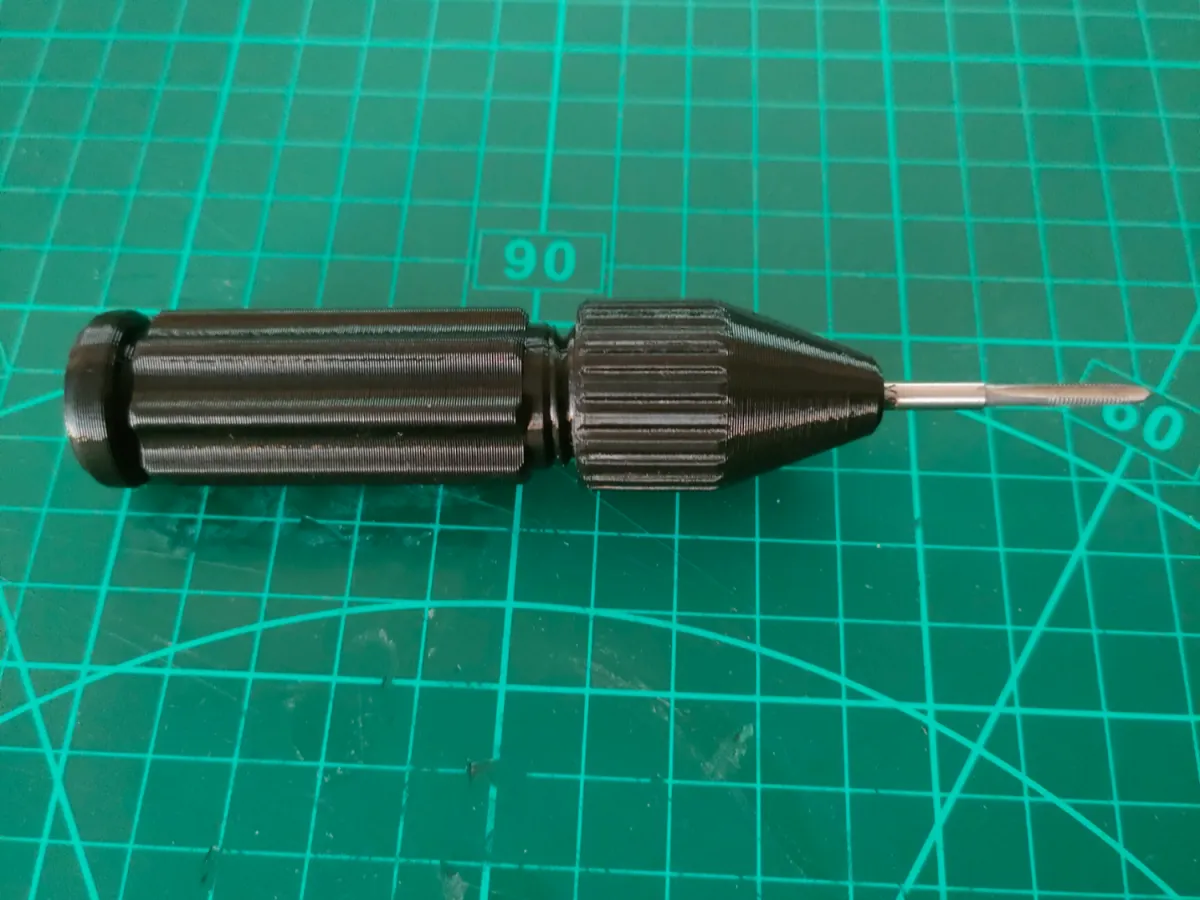

Handle for M2,5; M3 and M4 tappers with movable cap.

Handle is made from PET-G. Hole for M4 bolt was tapped M4 thread.

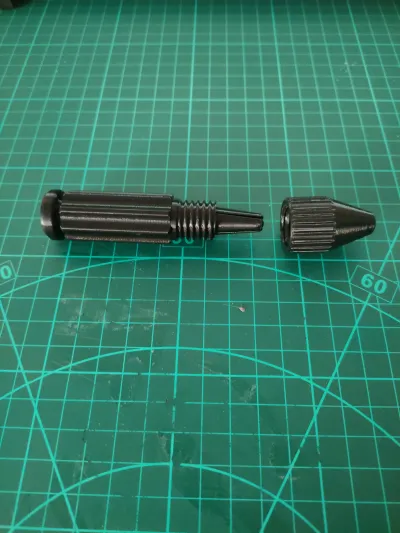

Cap should move freely, some glue can be applied on thread of screw.
Part of nut and handle with thread and above the thread in handle should be printed with 0,15 layer high. (All settings applied in G-code)

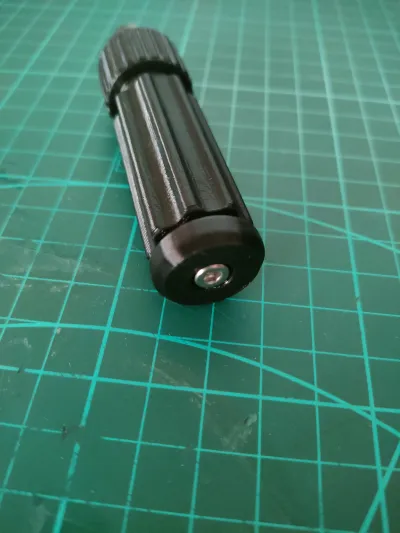

To mount cap shoud be used M4x15 socket head screw.


Material: PET-G, ABS, ASA etc.
Layer high: 0,3 mostly ( for threads and holding part 0,15)
Support needed.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(3)

  • model file image
    Cap.stlDesigner

    955.36 KB

    2026-01-08

  • model file image
    Handle.stlDesigner

    981.63 KB

    2026-01-08

  • model file image
    Nut.stlDesigner

    3.47 MB

    2026-01-08
