My drawer is not a multiple of 50cm, there was space for another half bin, so Halfstep was born.

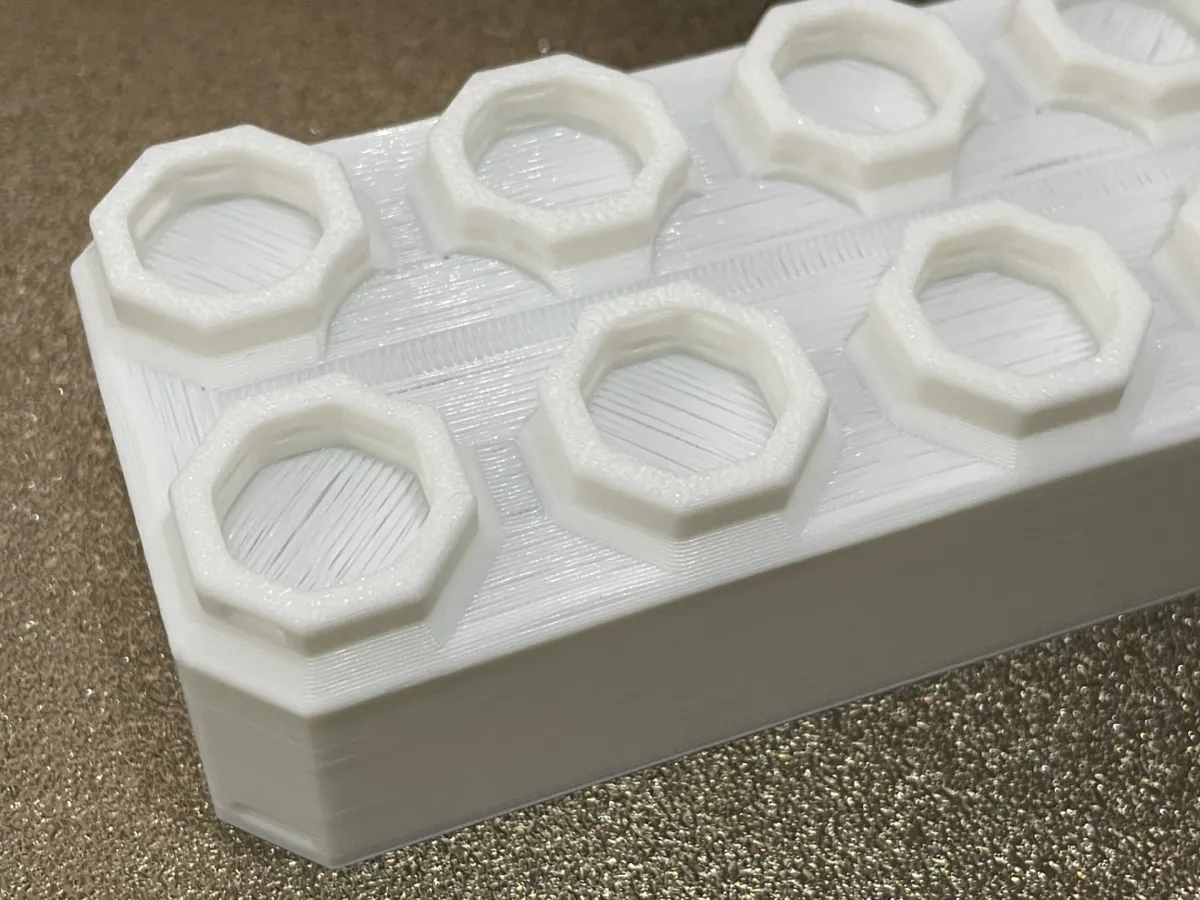

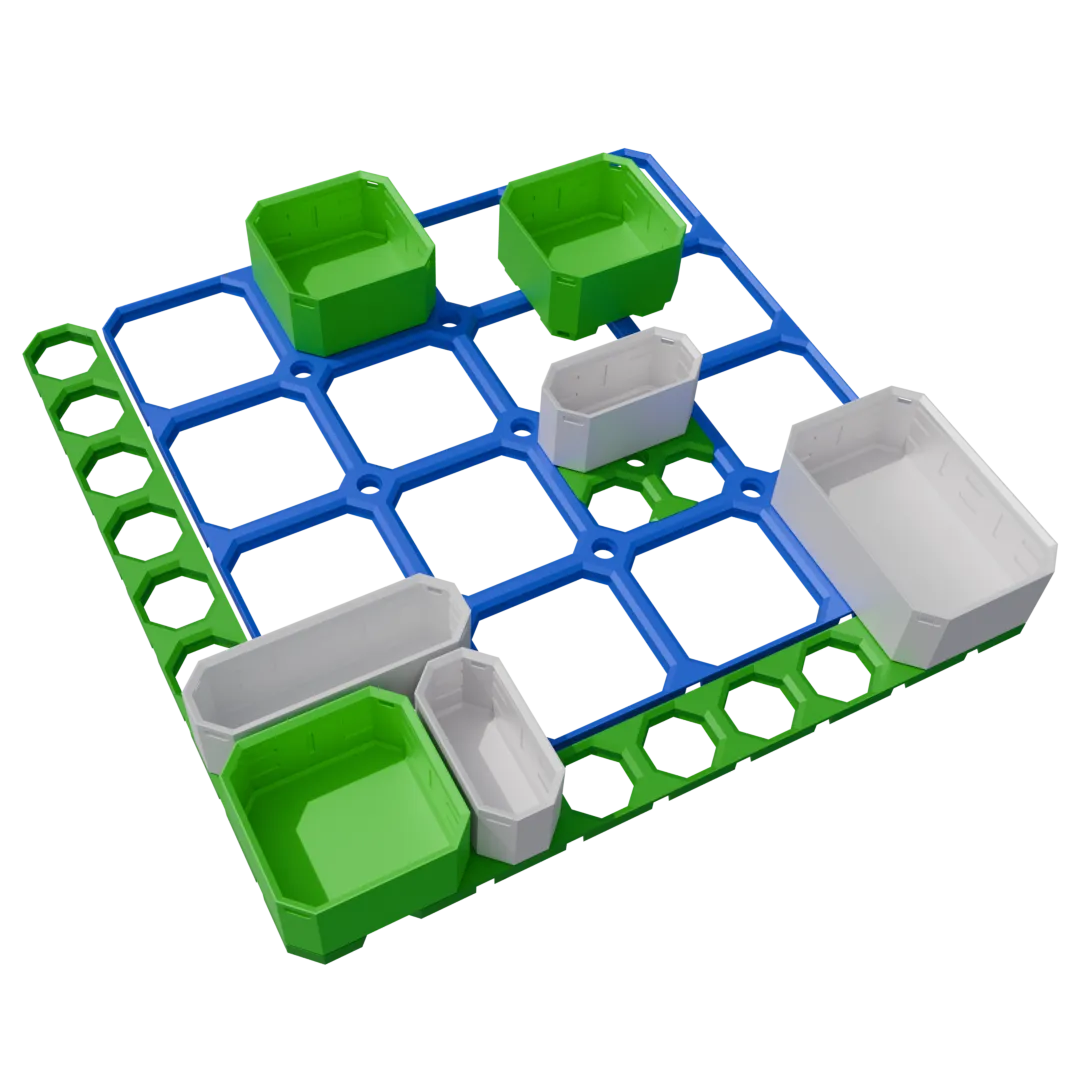

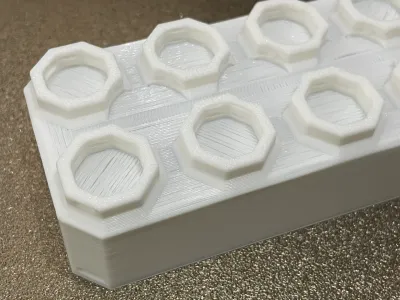

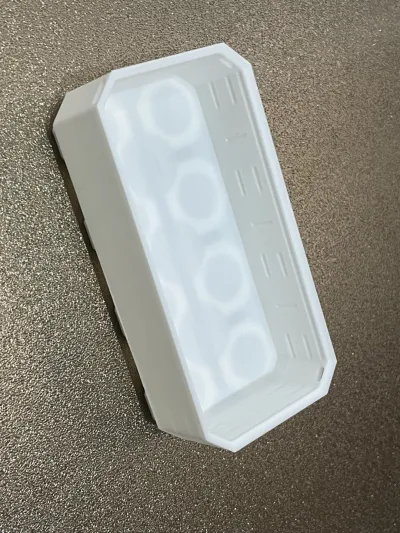

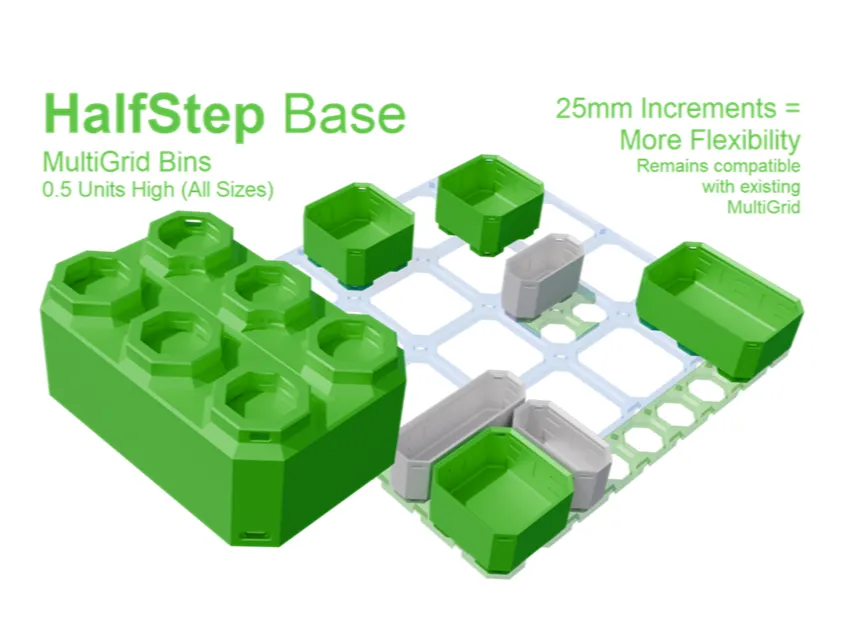

These bins remain compatible with Multigrid and it's existing bins but add half size increments. This also gives more flexibility when designing bins as you can pick the closest 25mm size rather than 50mm. They maintain the threaded base and push fit connection of the Thread Base Bins.

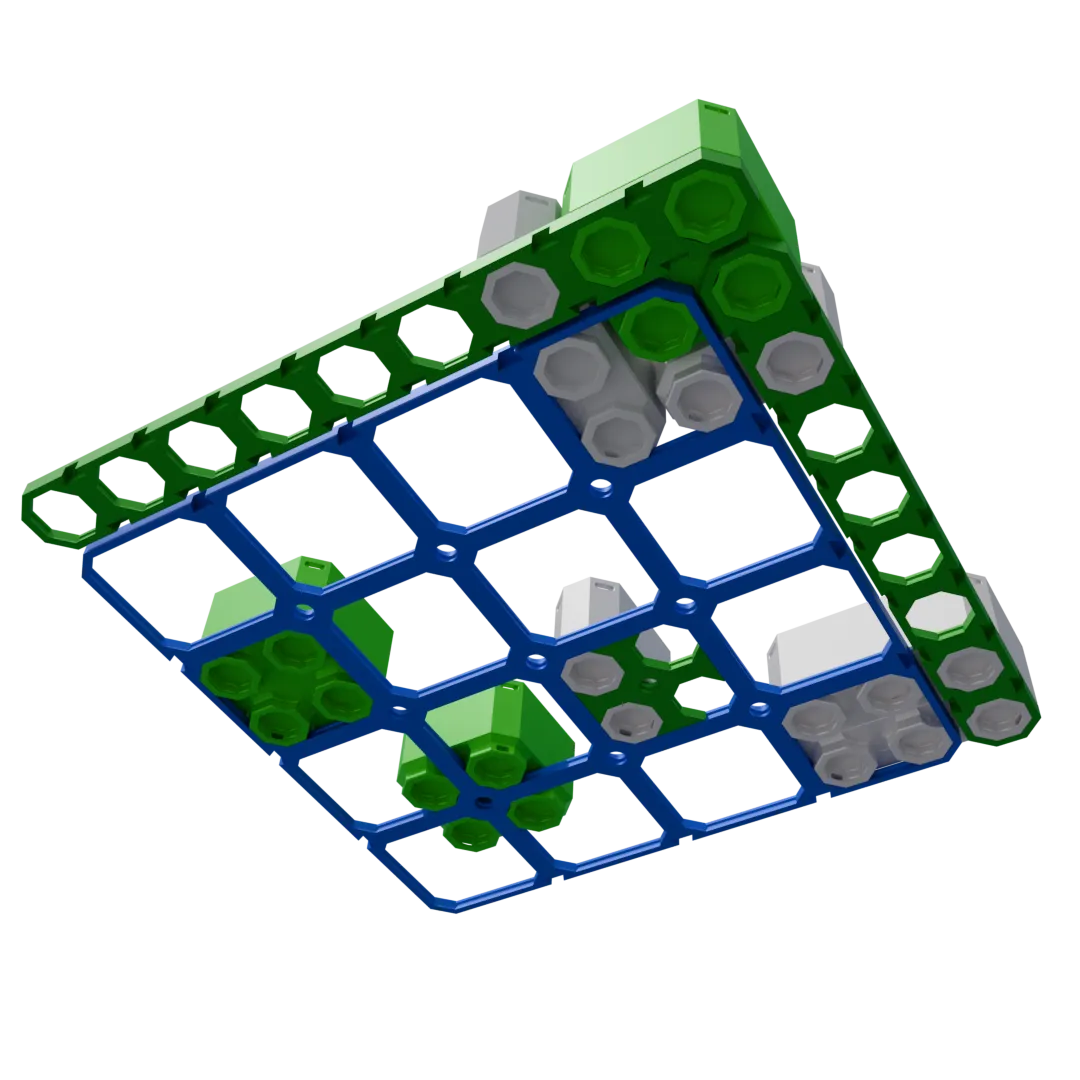

If you have space for an extra 25mm around an edge of your drawer use the Halfstep Panels to extend your grid.

The print profile contains the most common sized bins (0.5 - 3.0) x 0.5 and (1.0 - 2.5) x 1
All combinations of size can be found in the download section as stl files.

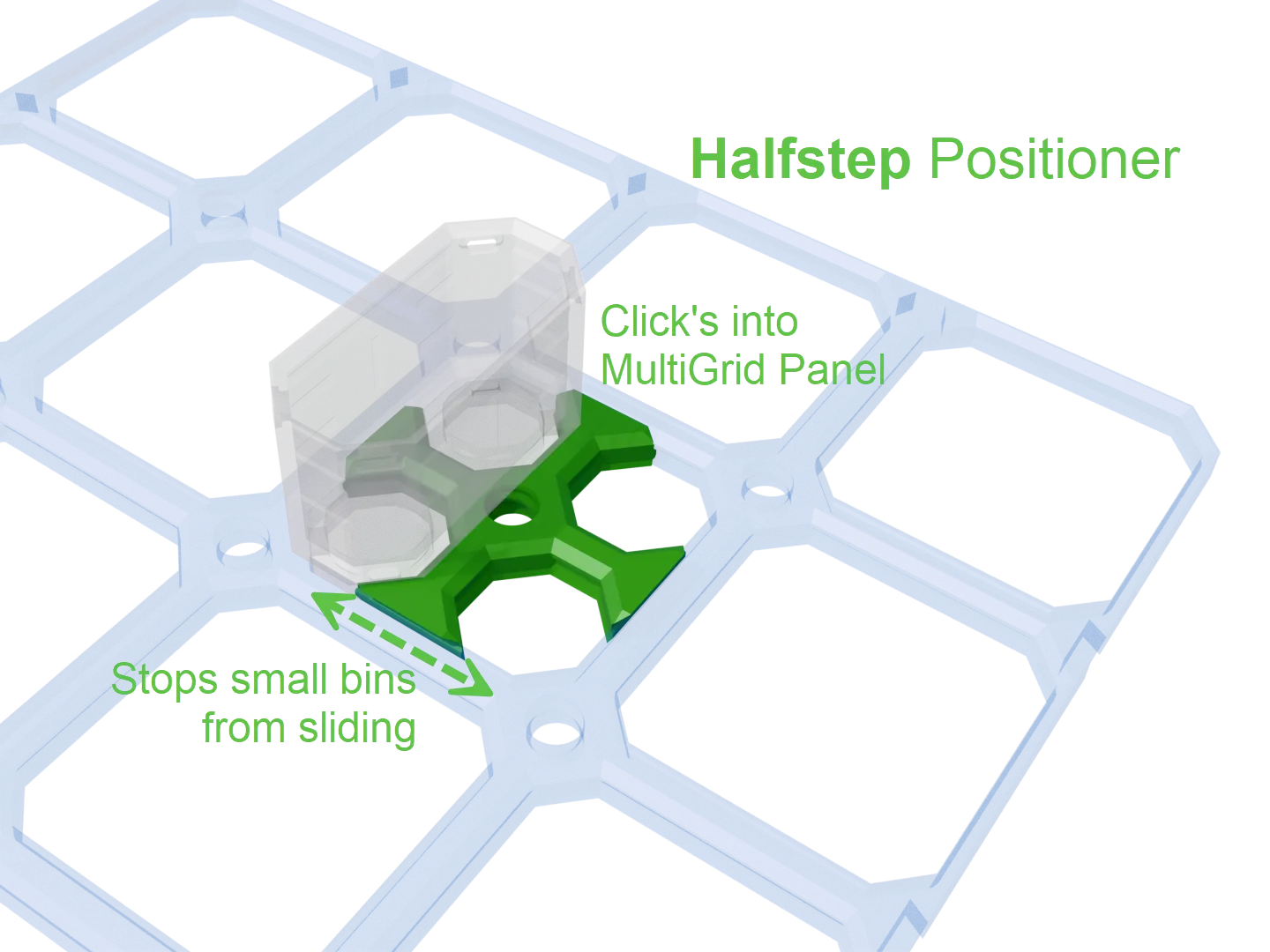

You can place any bin with a dimension's of 1 or more on an existing base, and it won't move. For bins with a 0.5 dimension they will be able to slide, to avoid this you can clip in a Halfstep Positioner into the usual Panel or Base Plate:

Thankyou!

Thanks to Jonathan Kobylanski at www.Keep-Making.com for the awesome MultiBoard and MultiGrid system!

License

This is distributed under the Multiboard license detailed here.
