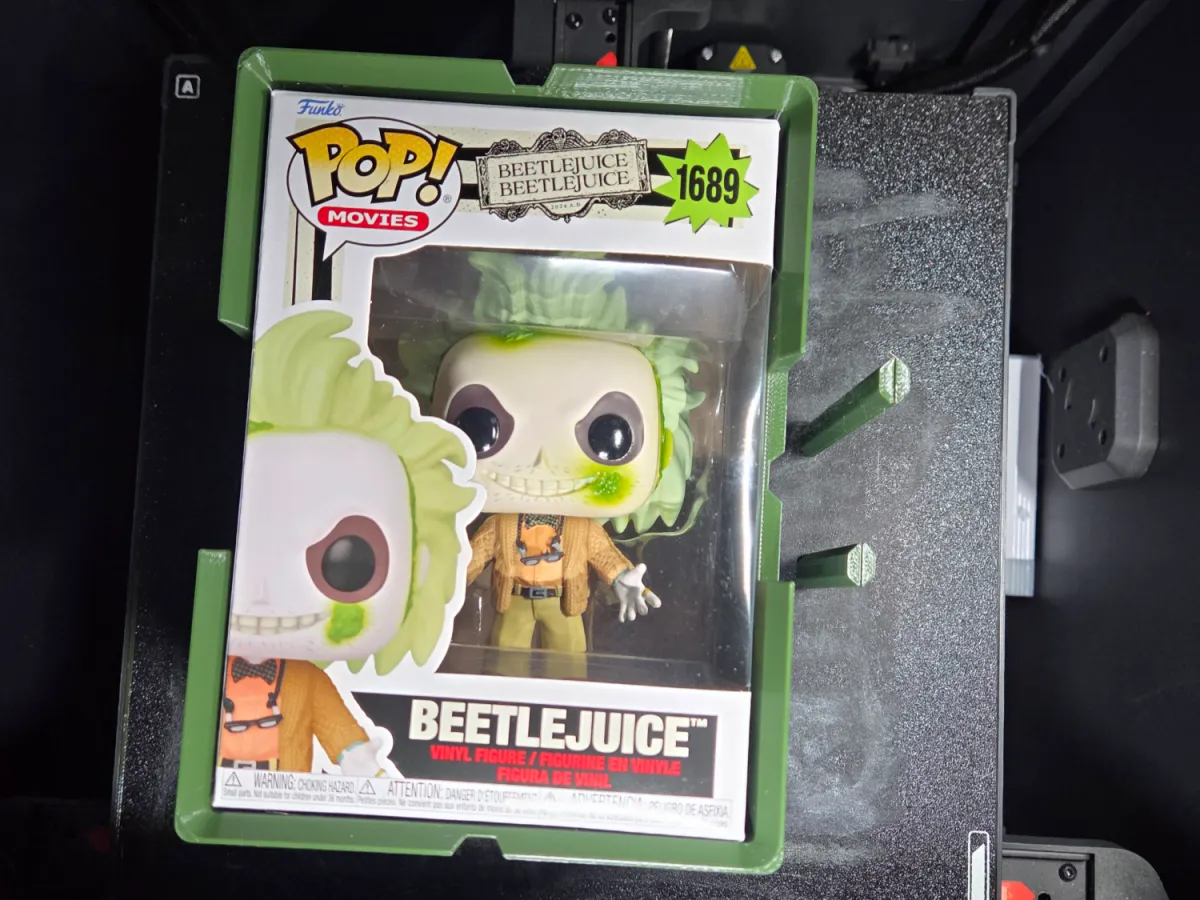

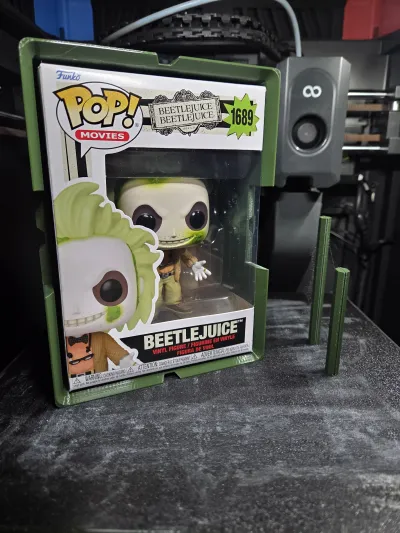

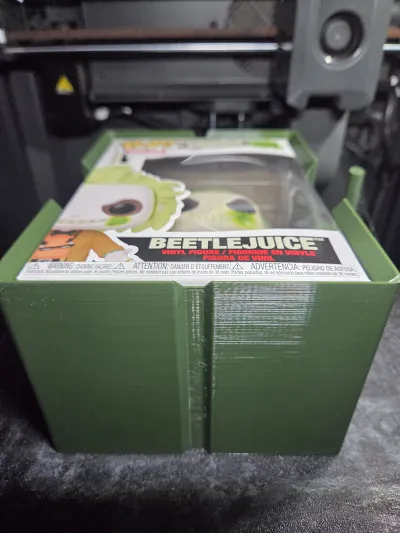

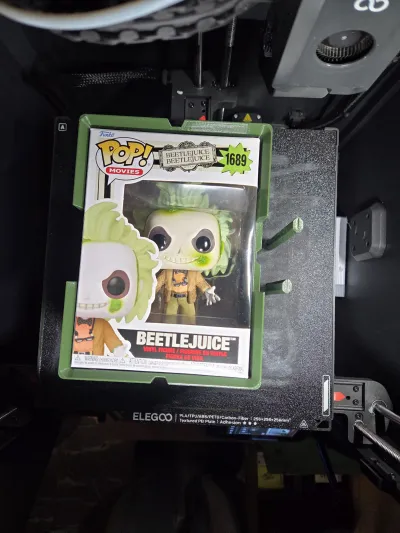

4-Inch Cardboard Funko Pop Box MOUNT/COVER

Dimensions & Tolerances:

• Target Box Size: 115mm (W) x 160mm (H) x 90mm (D)
• Shelf Outer Footprint: 129mm (W) x 174mm (H) x 95mm (D)
• Internal Clearance: Engineered with a strict 2mm air gap on all sides. This precise tolerance prevents the "vacuum seal" effect and ensures cardboard corners are never scuffed or crushed upon insertion.

Mechanical Features:

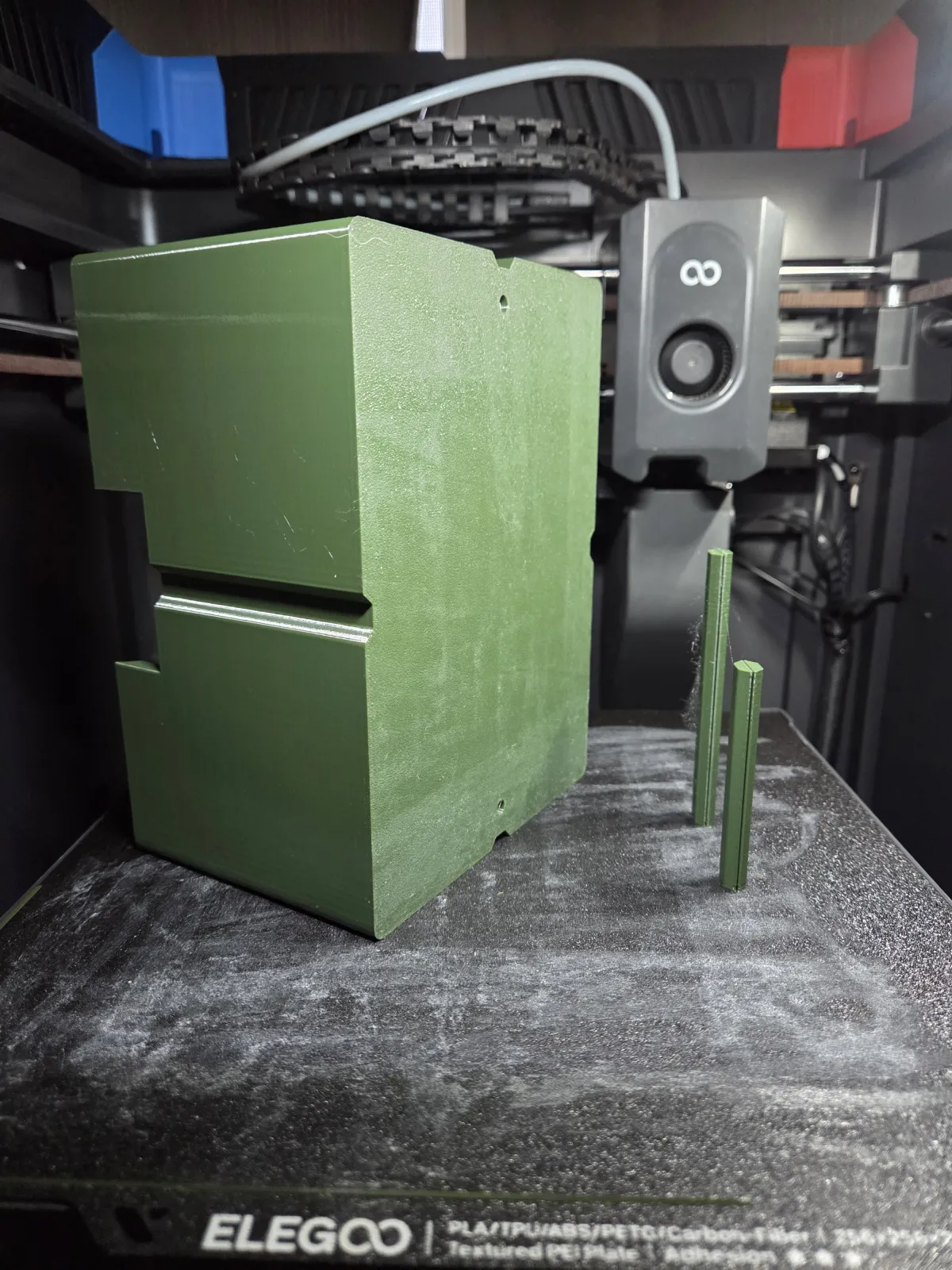

• Double-Dovetail Joints: Features sliding locking tracks on all four outer faces for infinite X/Y grid expansion.
• Dual-Length Bowtie Pins: Includes a full-length connector pin for vertical stacking, and a custom "stubby" pin for horizontal connections that hides perfectly behind the side cutouts.
• Zero-Snag Lead-in Funnel: The internal front lip features a mathematically calculated chamfer that flares outward. It acts as a guide ramp, automatically catching and centering the box as you slide it in.

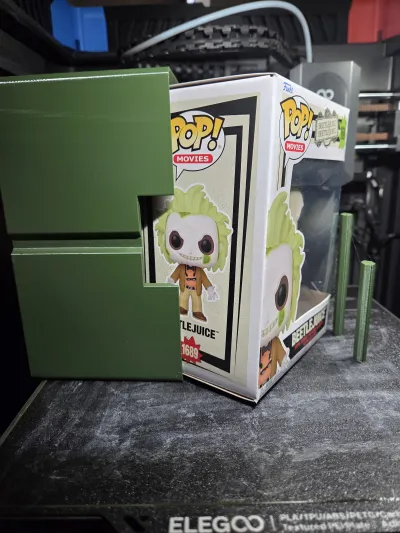

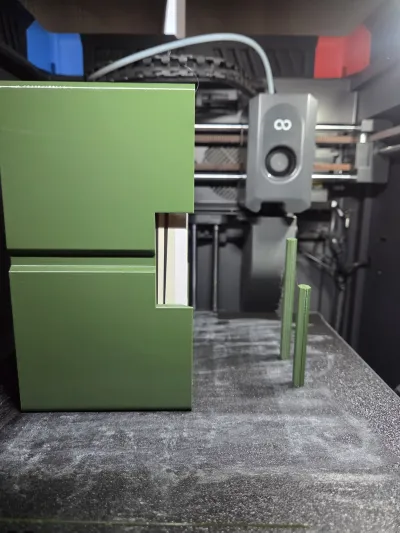

• Half-Moon Extraction Scoops: Features deep, 25mm radius cutouts on the side walls, allowing you to easily pinch and extract the box without touching the delicate front viewing window.
• Floating Open-Back Flanges: Uses integrated top/bottom mounting flanges rather than a solid backplate, saving massive amounts of filament while letting your wall color show through behind the figure.
