  • Working turbine

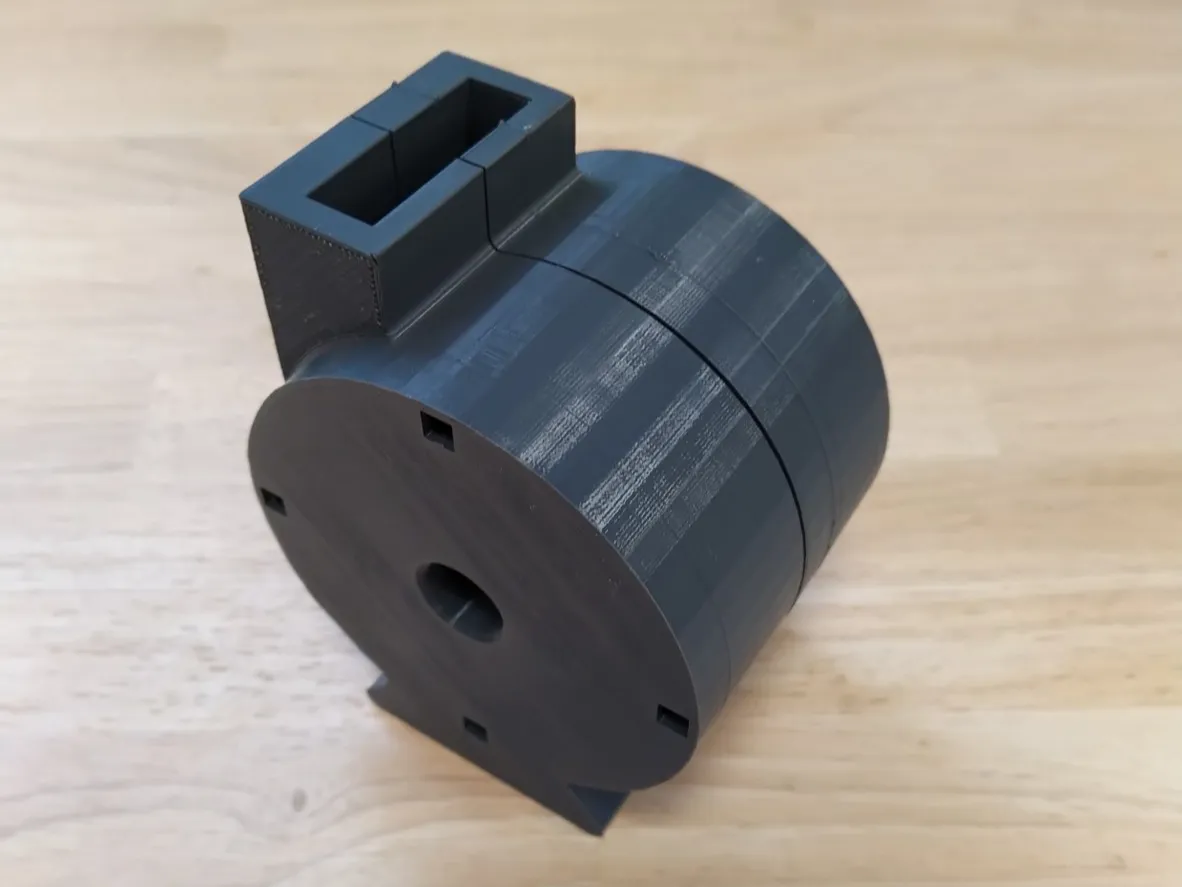

This is a set of files for a two-side turbine housing. This design is intended to house a radial impeller (fan wheel) and efficiently direct the airflow, creating high pressure suitable for cooling or blowing applications.

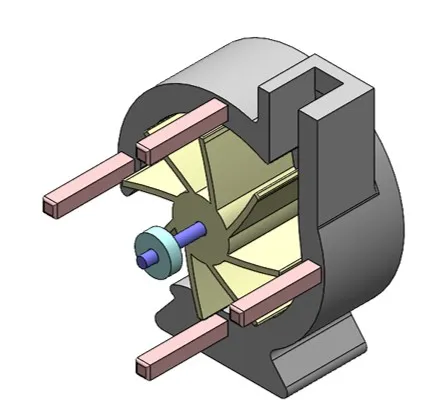

  • Design: The model consists of two separate halves (front and back) that securely lock together with the connector pins. It's recommended to use somme glue.
  • Usage: Perfect for electronics enthusiasts, you connect the turbine with compressed air. You can connect the turbine to a motor to generate electricity.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(5)

  • model file image
    working turbine in 2 parts.3mfDesigner

    92.12 KB

    2025-12-17

  • model file image
    turbine body left and right connector.STLDesigner

    3.79 KB

    2025-12-17

  • model file image
    turbine rotor .STLDesigner

    43.05 KB

    2025-12-17

  • model file image
    turbine body right.STLDesigner

    68.73 KB

    2025-12-17

  • model file image
    turbine body left.STLDesigner

    69.52 KB

    2025-12-17
