Design

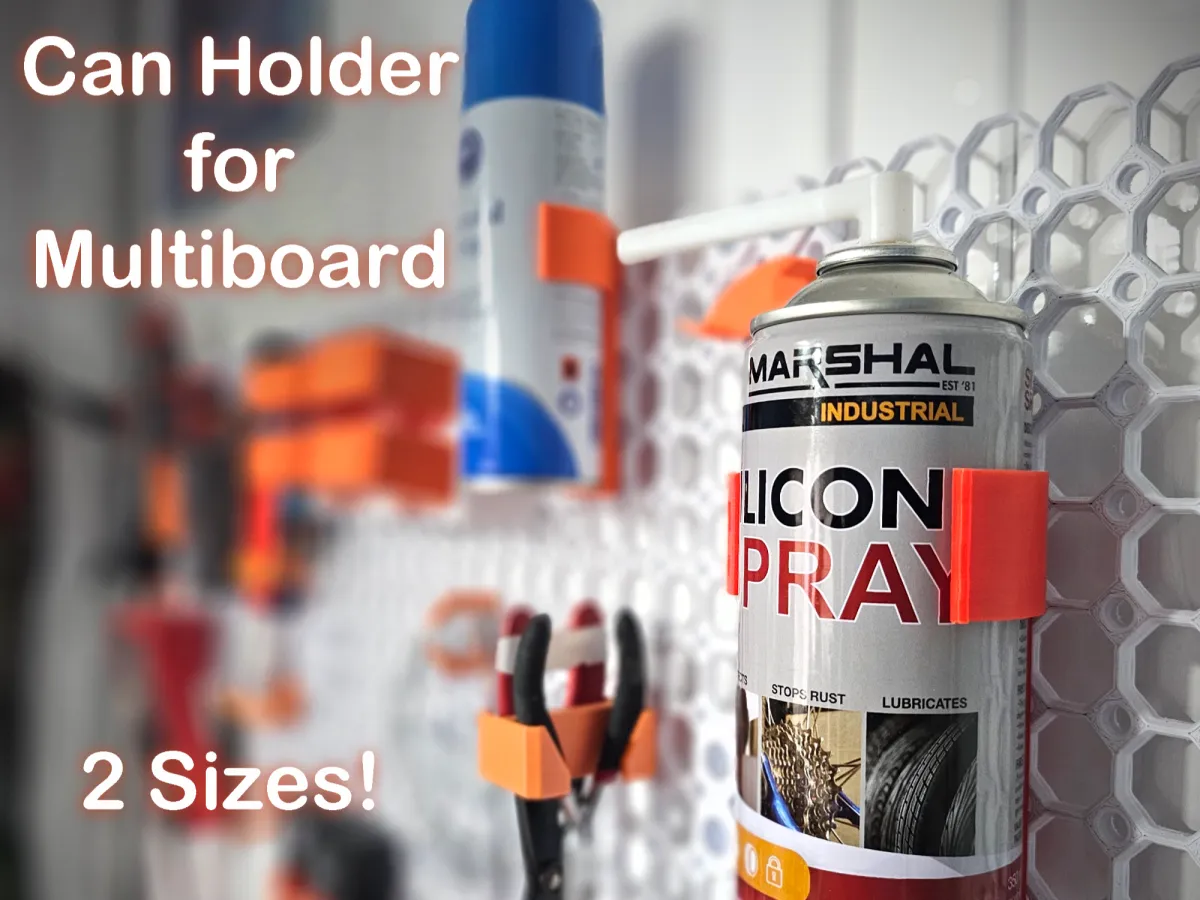

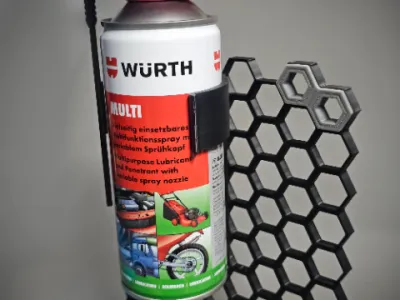

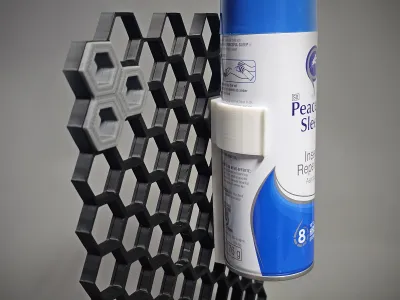

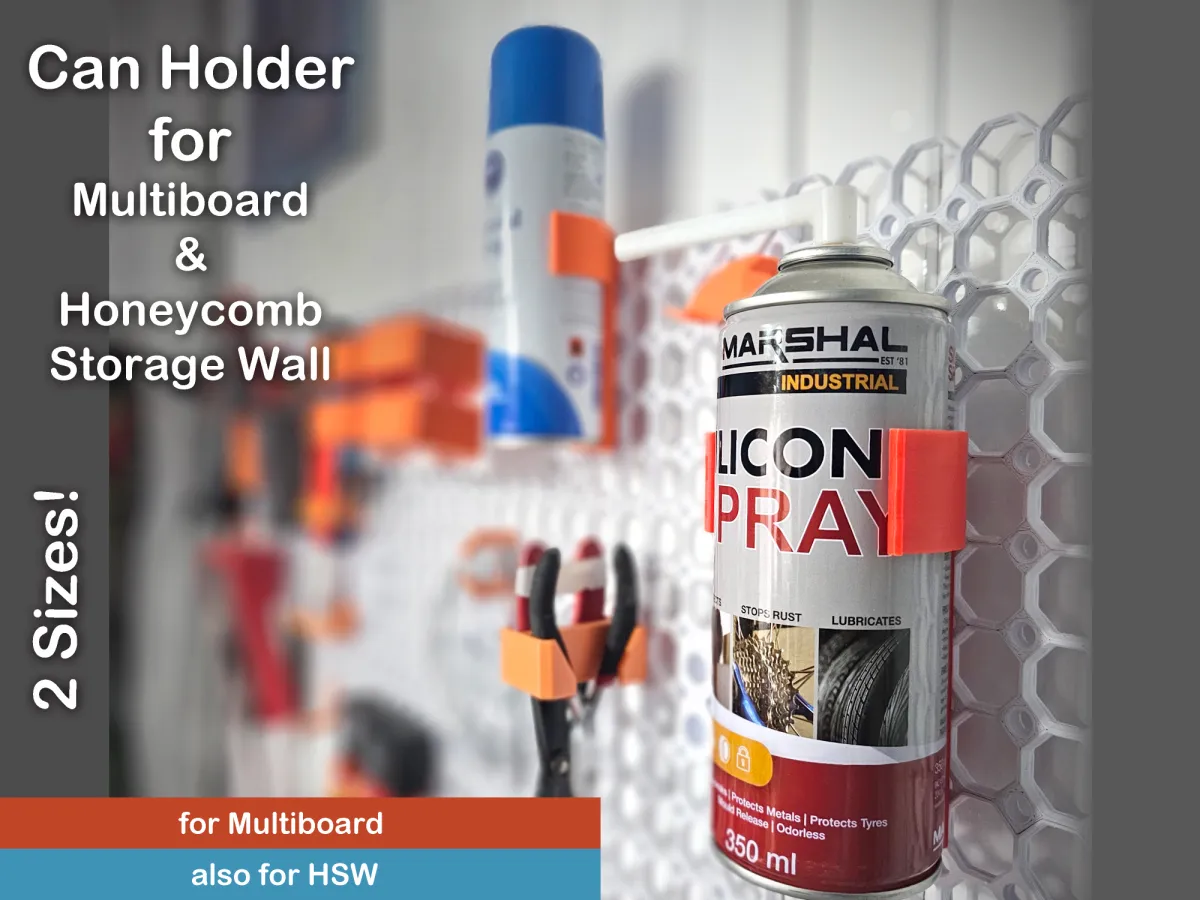

This holder is perfect for keeping aerosol cans such as insect repellent, spray paints, or air fresheners conveniently accessible and organized on the Multiboard System. It is ideal for use in homes, garages, workshops, or studios.

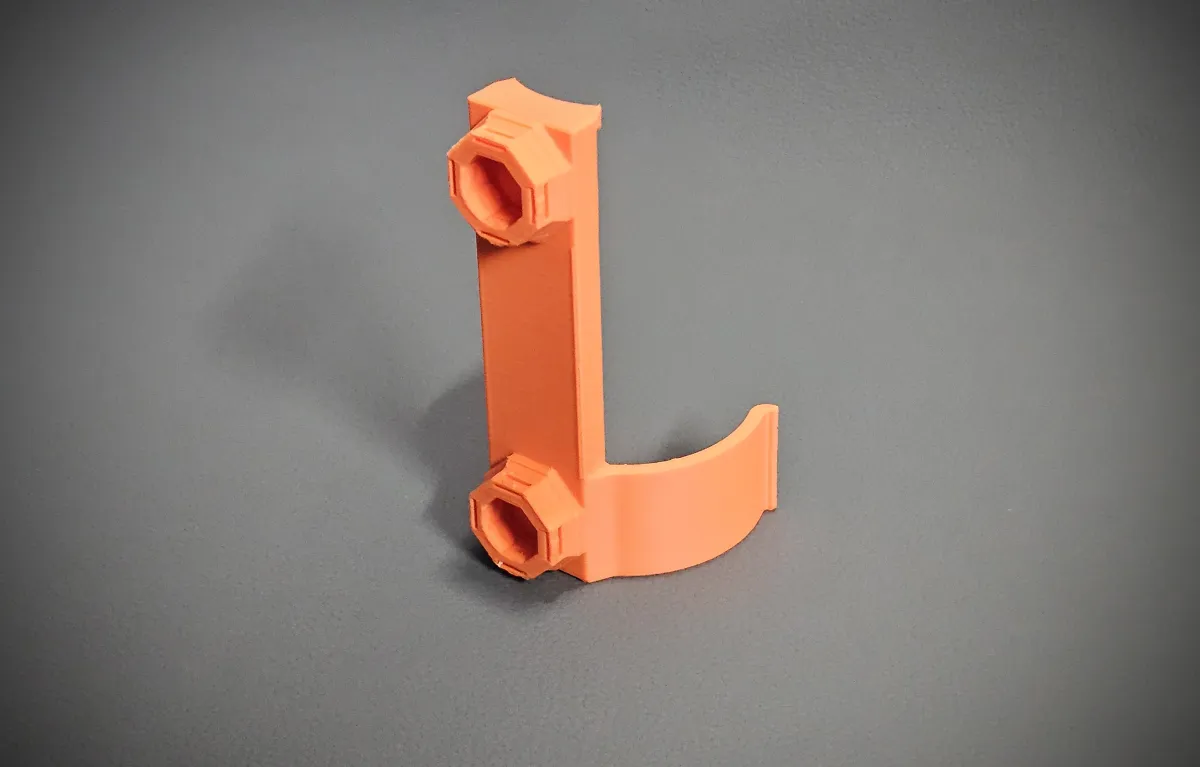

I took my wall mounted version of this holder and added Multiboard Snaps to the back.

180ml for aerosols, deodorants ect.

350ml for larger cans such as lubricants, spray paints ect.

Printing

Print it upright with tree support on critical regions as shown above or use my 3mf file. Also add a 3mm brim to help with adhesion.

Print with 3 walls and 15% infill.

These settings use about 26g of filament and take about 54m on the K1C.

Assembly Instructions

After printing, you can easily remove the supports and just SNAP the model into place on your Multiboard.

The Multiboard system can be found at multiboard.io

If you find this model useful in any way... Please leave a 'LIKE' and post some makes - I'd love to see your prints!
