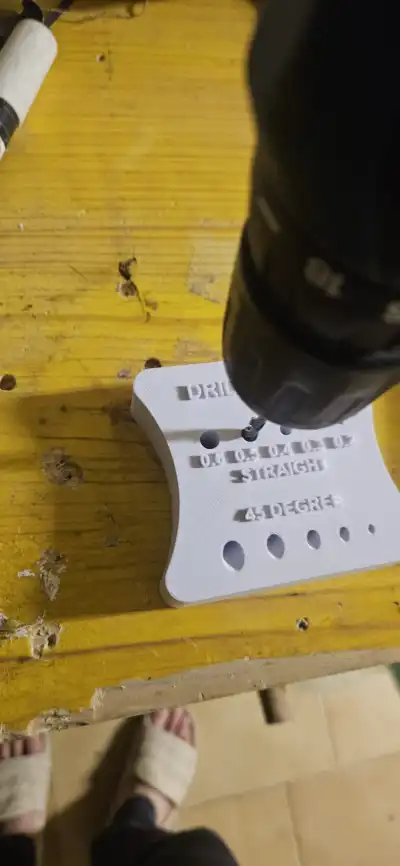

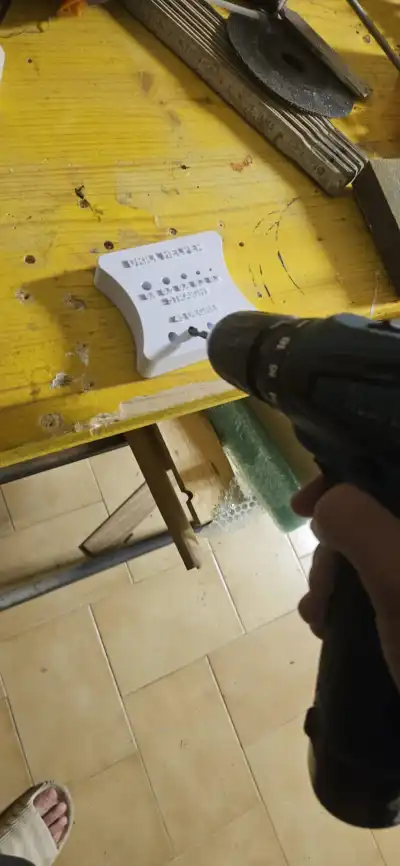

Micro Drill Helper – 0.2 to 0.6 mm Drill Guide (90° & 45°)

3D Printable Precision Tool for Makers, PCB Work & Miniatures

This compact Micro Drill Helper is designed for precise drilling with micro drill bits from 0.2 mm to 0.6 mm, ideal for electronics, PCB prototyping, jewelry, scale modeling, and other fine-detail work.

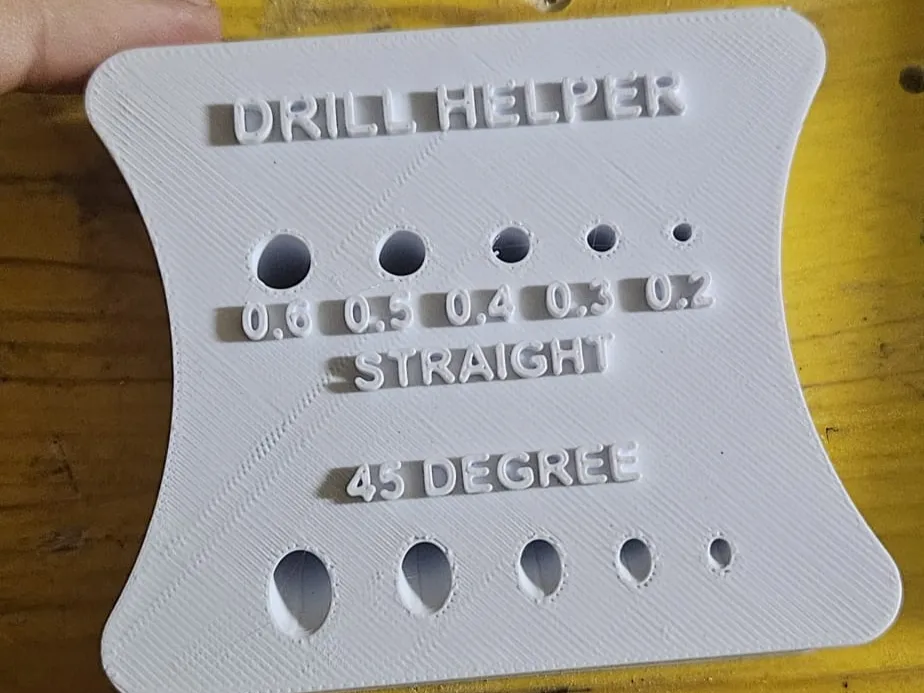

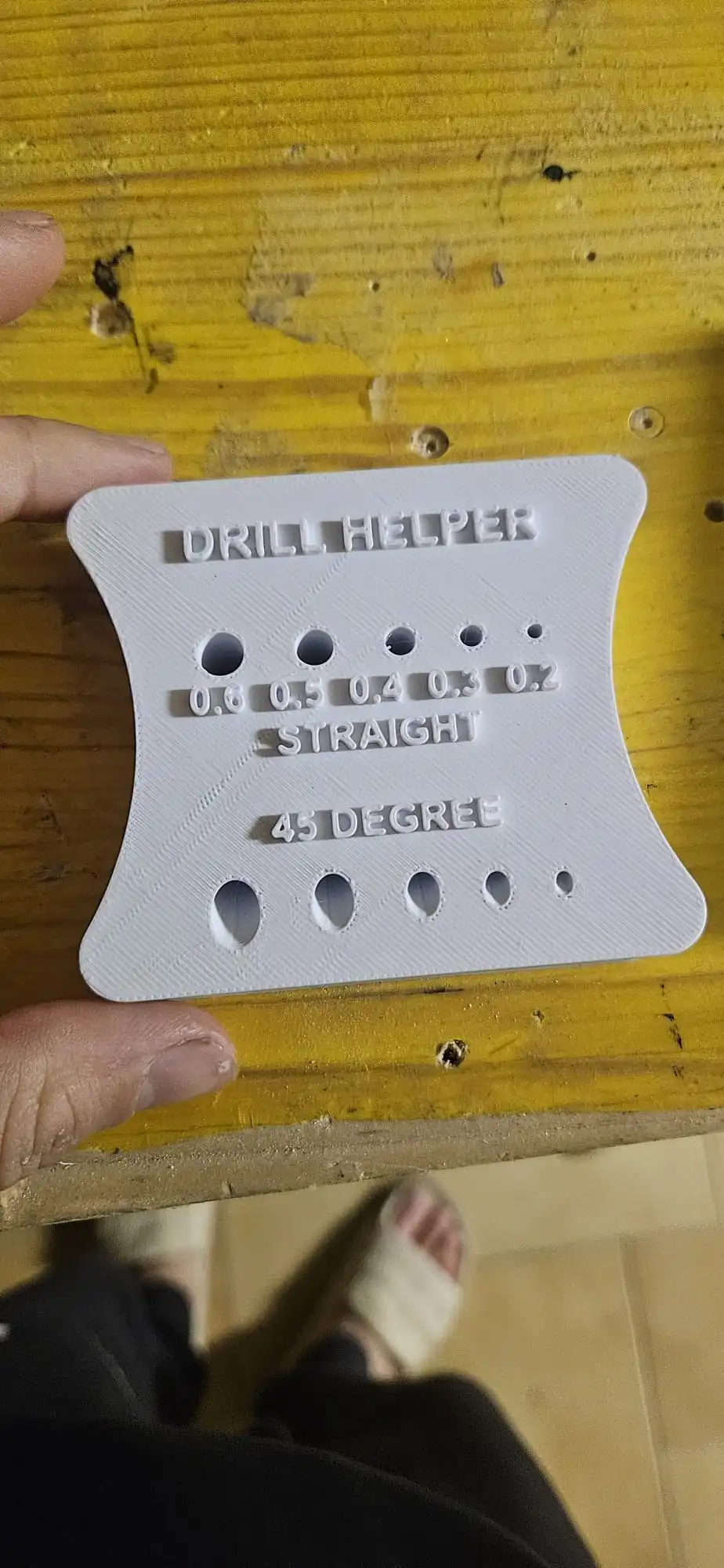

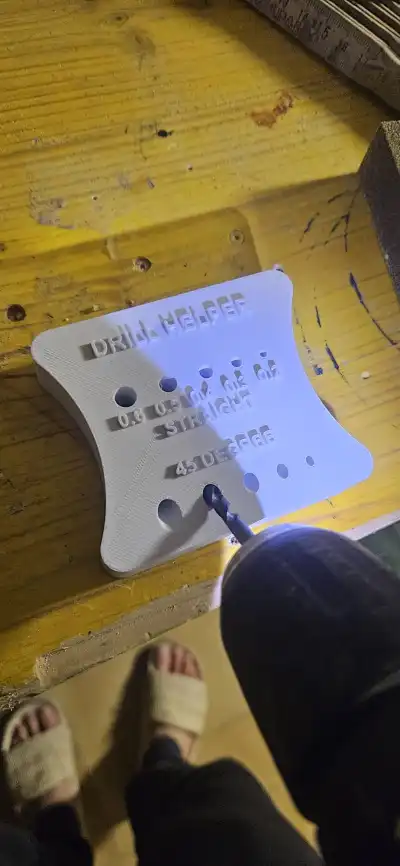

The model includes dual-angle guides at 90° and 45°, allowing perfectly straight or angled holes even on small, delicate surfaces.

Key Features

  • Supports micro drill sizes: 0.3 – 0.6 mm
  • Two drilling angles:
    • 90° vertical drilling
    • 45° angled drilling
  • Stable base for accuracy
  • Thin guiding channels for reduced wobble
  • Compact, ergonomic shape
  • optimized for FDM 3D printing
