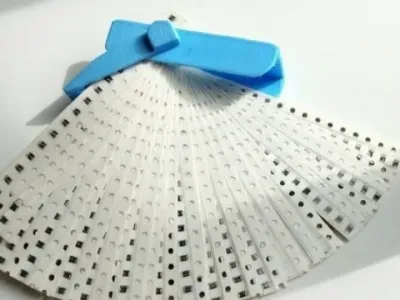

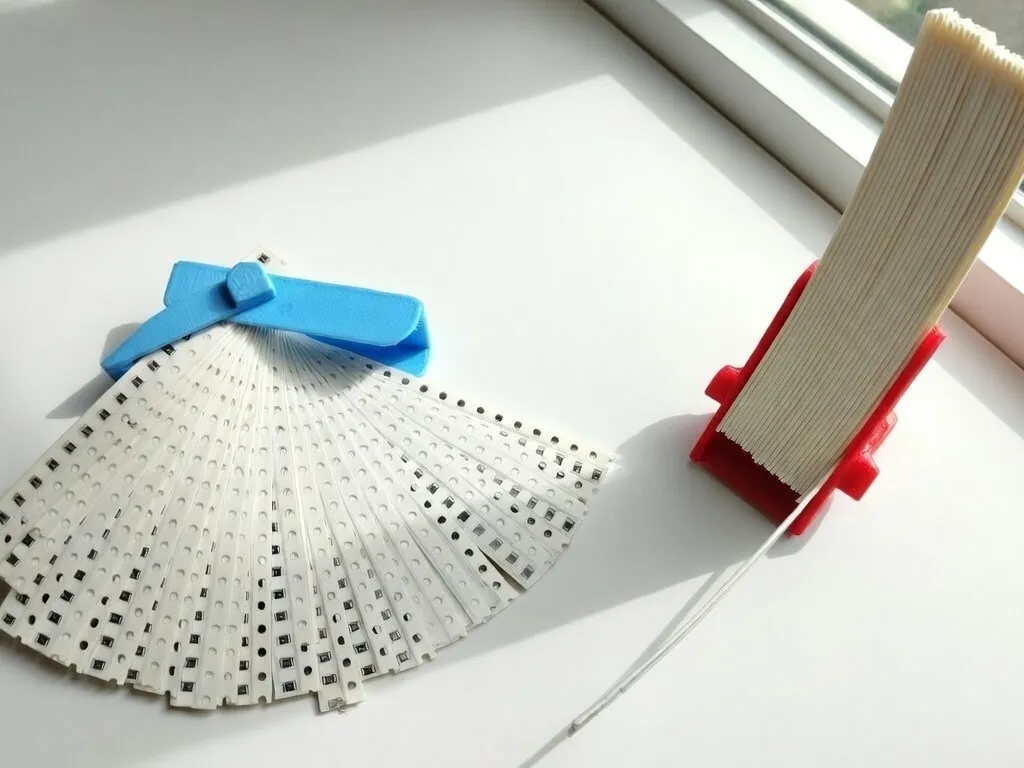

This holder was designed to help organize sets of SMD component strip tapes (for example, this one: https://s.click.aliexpress.com/e/_c3ccHf43). It works with standard 8 mm SMD tapes, keeping your components neatly sorted and easy to access.

With this organizer, your resistors, capacitors, and other SMD parts stay sorted by value, making component selection faster during projects. It also saves space compared to traditional SMD storage books.

The design is compact, practical, and easy to use—simply place your strip tapes in the holder and keep your components organized and ready whenever you need them.

Features

• Compatible with 8 mm SMD strip tapes
• Keeps components sorted and easy to identify
• Space-saving compared to large SMD storage books
• Quick and simple to load and use
• Up to 25 values.

You'll need a 1mm rod: https://s.click.aliexpress.com/e/_c4q4Mryx or electrical wire f 1.5mm (this size still works). This needs to be cut with 30mm.

Installation instructions:

Sort your resistors and prepare the 1mm rod (or 1.5mm electrical wire) cut with 30mm

Pass the wire throw the 10º hole of your SMD strip

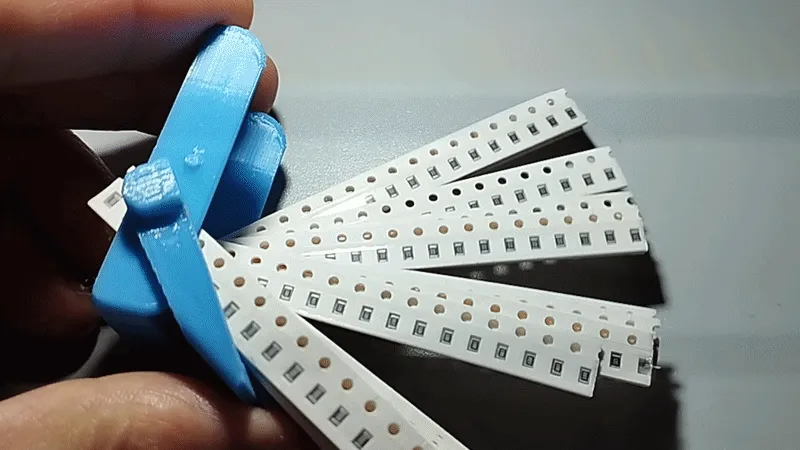

Slide the tape inside the printed base until the wire touches the corner:

Holes are now aligned, remove the wire and put it throw the pin hole:

Cover it with the lever:
