5‑cylinder aircraft engine
- 0.2 mm layer height, 2-wall walls, 10% infill density
13-disc
PETG
Designer
33
4

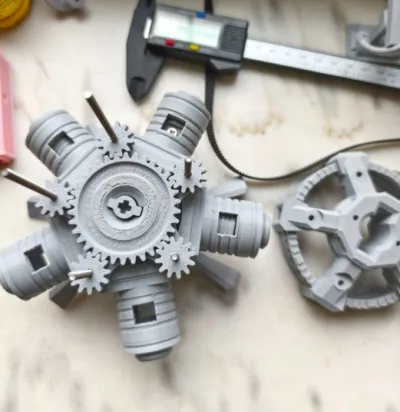

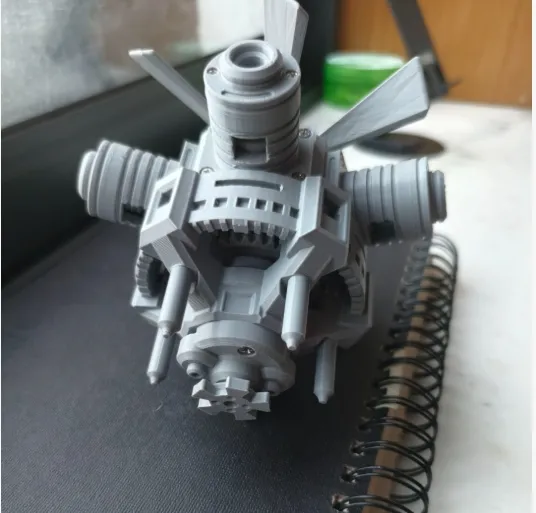

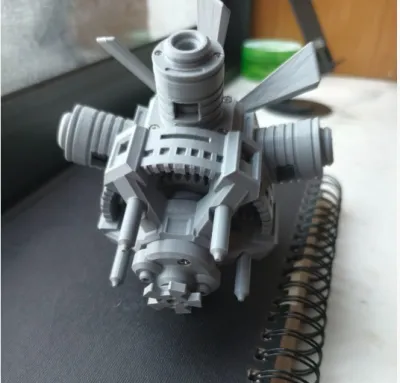

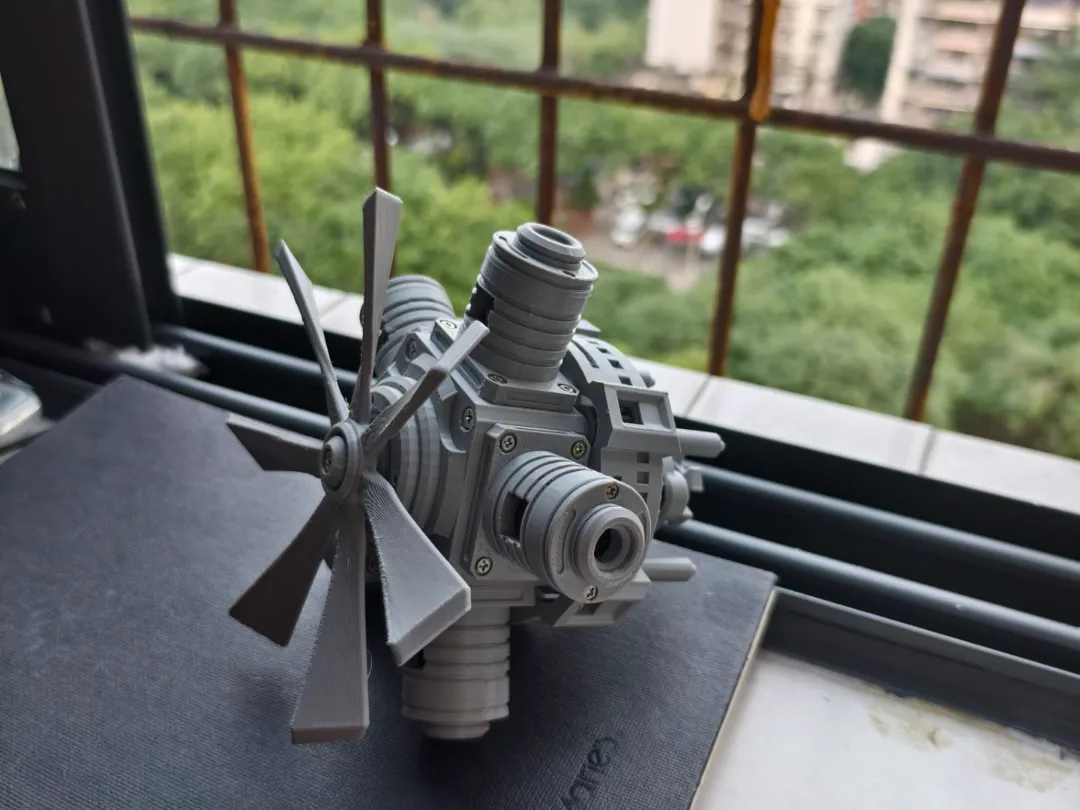

The 3D‑printed aircraft engine, designed in-house, features a five‑cylinder radial configuration. The installation process is straightforward, with the following key operational steps: When assembling the crankshaft and piston assembly, first install the intermediate crankpin, then secure all components using screws to complete the assembly.
3M 80mm, 5 pcs per set
3M 14mm, 14 pcs per set
2M 10mm, 30 pcs per set
We recommend using PETG.
Bill of materials
- NameQuantityNotes
- 13M80mm5
- 23M14mm14
- 32M10mm30
