Thread Test 0.03mm 0.2in chamfer
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

1

0

3

1

Released 2026-06-16
Details
Files(3)
Makes & Comments (0)

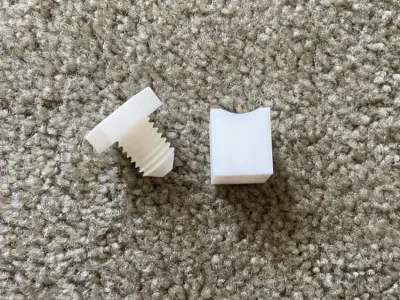

Printing threads on a 3d printer is a sign of true expertise in modeling and tuning in your settings. This is a test model that has 0.03mm tolerances as well as having a 0.2in chamfer on the top of the hole and bottom of the bolt. The chamfer is crucial because it enables you to actually screw the bolt in, without it the bolt has to be perfectly aligned with the hole.

comment if more variations on tolerances or chamfers are desired.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(3)

  • model file image
    screw+test.3mfDesigner

    442.47 KB

    2026-06-12

  • screw+test.f3dDesigner

    197.61 KB

    2026-06-12

  • model file image
    screw+test.stlDesigner

    1.35 MB

    2026-06-12
