Alignment jig for decking screws
Print Profile(1)
  • 0.2mm layer, 5 walls, 15% infill

    1-disc

    PLA

    Designer

0

0

4

0

Released 2025-11-27
Details
Files(1)
Makes & Comments (0)

Design Concept

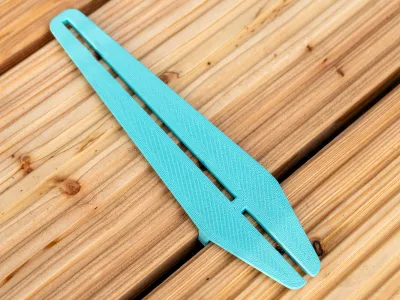

The alignment jig is designed to ensure precise spacing and alignment of screws for decking installations. Its simple yet efficient design allows for quick and accurate placement.

Use

This tool is essential for professionals and DIY enthusiasts working on decking projects. It guarantees consistent screw alignments, enhancing the overall appearance and stability of the deck.

Assembly Instructions

No assembly needed. The jig is ready to use right after printing. Place it along the decking boards and insert screws in the provided notches.



Made for 145mm planks or narrower.

With 7mm spacer.
