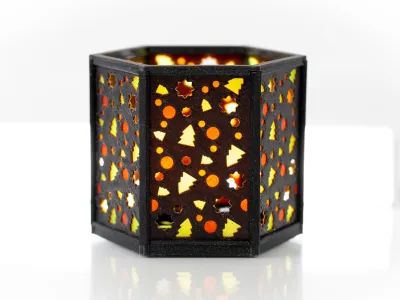

Decorate your room with a lamp featuring a beautiful pattern design by Gaby Katten. The print requires no glue and because of the multipart design, you can print it in endless colour combinations.

Safety Note: Avoid PLA with Real Candles

Avoid using PLA if you plan to place real candles in the lantern, as PLA has a low melting point and can easily catch fire. PETG is safer, but place real candles inside a small glass holder to prevent heat from reaching the lantern frame. Ensure the outer temperature of the glass holder stays below 80ºC.

Printing Guide

Frame Parts

Begin by printing the frame components on plate 1 in a single color, like Black, as shown in the photos:

Side Panels

The side panels on plate 2 are designed for manual multi-color printing with filament changes, allowing you to add a touch of personalization. To get the same look as shown in the the photos:

• Layer 1-2: Transparent Yellow or Green PETG
• Layer 3-4: TRansparent Red PETG
• Layer 5+: Opaque Black PETG

Assembly Instructions

1. Start with the Base

Place the bottom frame on a flat surface. Insert the first side panel into its groove, ensuring a snug fit.

If the panel does not slide in the groove, use a fine sandpaper and remove material from the backside of the panel frame until it has a tight fit.

2. Add Side Panels Alternately

Next, continue with the second panel, but flip the orientation to align with the snowflake pattern.

3. Secure Panels with Clamps

Slide a clamp (LR2187-2) over each pair of adjacent panels, securing them in place.

Repeat until all panels are connected.

4. Attach the Top Frame

Carefully slide the top frame (LR2187-4) over the panels, ensuring they align with the grooves. Press gently or use a wooden block to apply even pressure if needed.
