6 Fiber Trunk Guide - Stackable
Print Profile(1)
  • 0.2mm layer, 4 walls, 10% infill

    1-disc

    PLA

    Designer

0

1

8

1

Released 2025-09-16
Details
Files(2)
Makes & Comments (0)

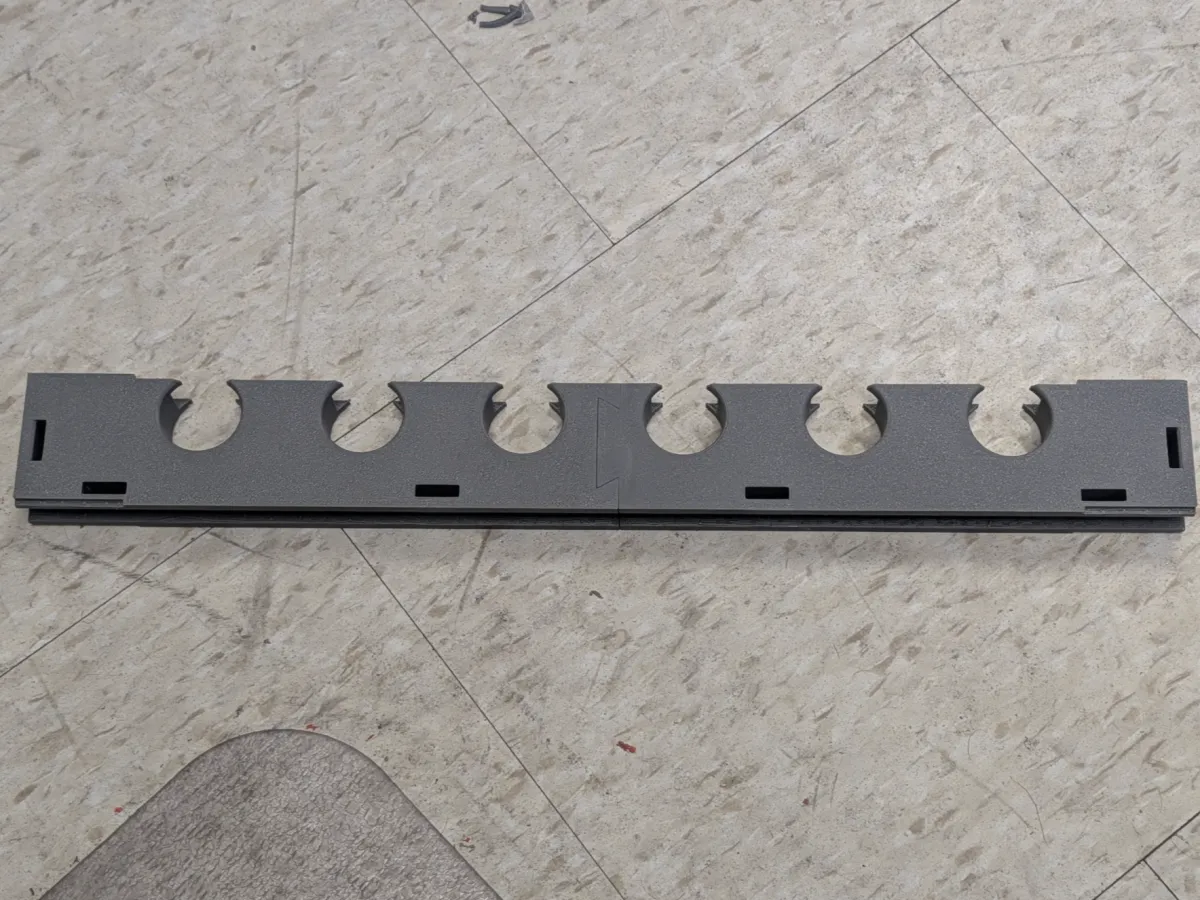

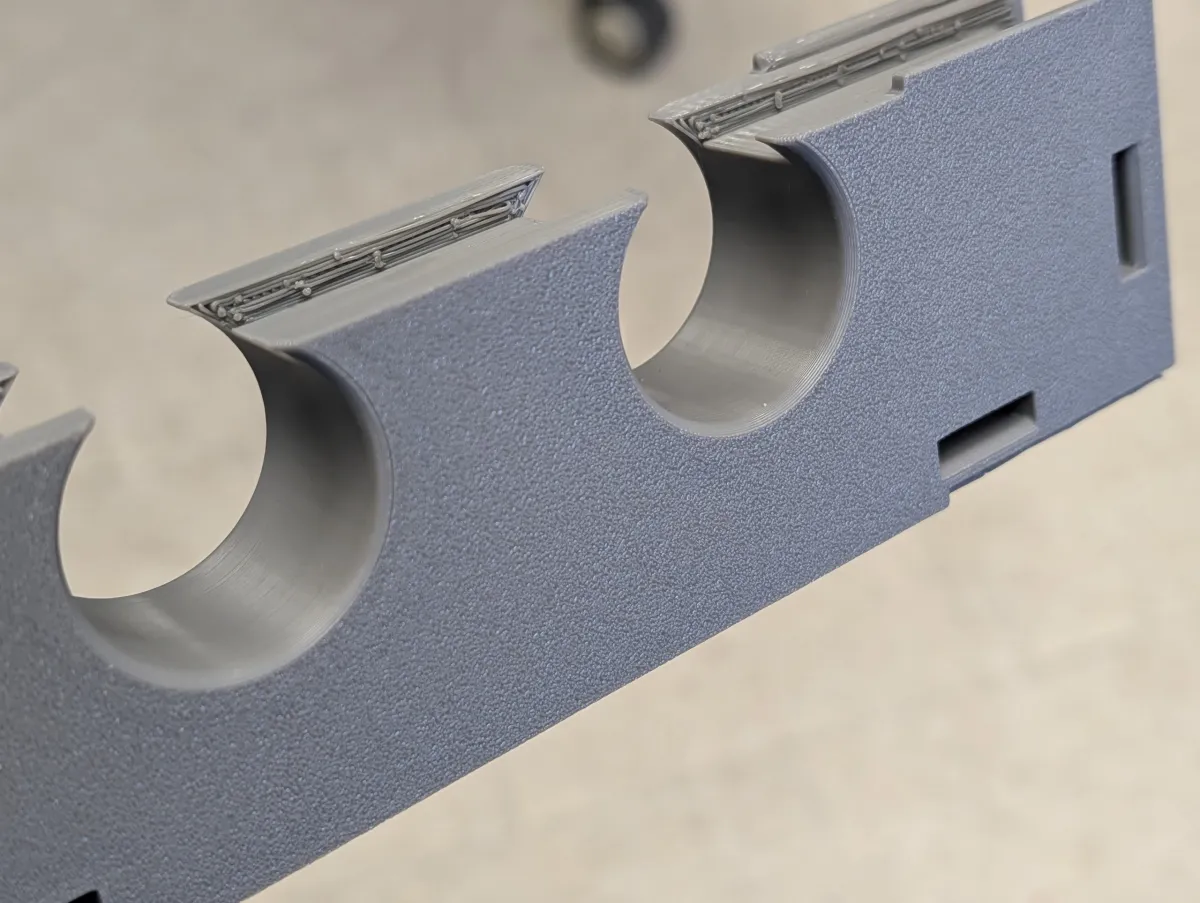

These are guides to keep fiber trunk cables in the correct order in the trays while pulling and to assist with pulling around corners. There are slots for velcro to attach to the rack, a channel for velcro to run around the entire guide to hold everything in, and alignment tabs for stacking multiple guides together. This is similar to my other model but has smaller openings to work better for fiber trunks.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Standard Digital File License

This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.

Models(2)

  • model file image
    6 Fiber Trunk Guide - Stackable.3mfDesigner

    270.67 KB

    2025-09-14

  • model file image
    6 Fiber Trunk Guide - Stackable.stlDesigner

    871.47 KB

    2025-09-14
