Artillery X1 - Directly wiring motherboard manager
Print Profile(1)
  • 0.2mm layer, 3 walls, 20% infill

    1-disc

    PLA

    Designer

2

1

11

1

Released 2025-09-04
Details
Files(1)
Makes & Comments (0)

This 3D-printed design helps you directly wire the extruder and X-axis of your Artillery X1 to the motherboard, solving the common ribbon cable issues these machines face.

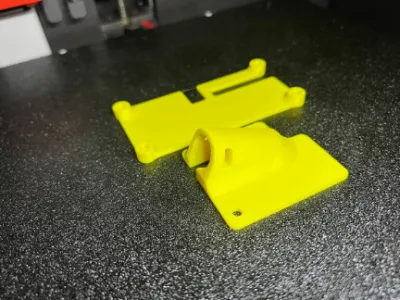

The design consists of two simple pieces. The first piece secures to the bottom of the printer's case with two screws. The second piece, or top cover, holds the new wiring and attaches to the first piece with two more screws. This simple yet functional design provides a clean and reliable way to manage your cables, offering a permanent fix for the frustrating problems caused by the stock ribbon cables.



BILL OF MATERIALS





Enjoy it

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    Screw M3x10
    4
  • 2
    Heat Insert Nuts M3xD4.6xL4.0
    4

Originality of the Model

The author declares that this work is their personally original model
