Arduino UNO project box case
Print Profile(0)

  • Earn points by adding print configurations

0

0

48

2

Released 2025-08-19
Details
Files(2)
Makes & Comments (0)

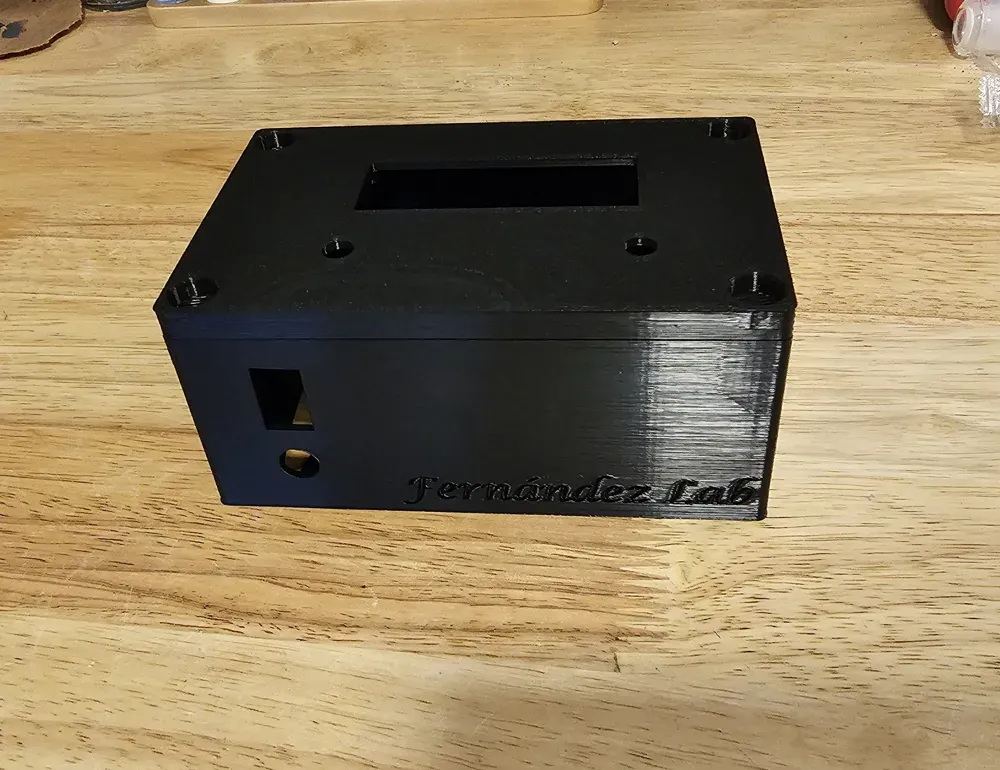

Another arduino case. This one with lots of room for hardware and holes for two potentiometers and 1602 lcd display.

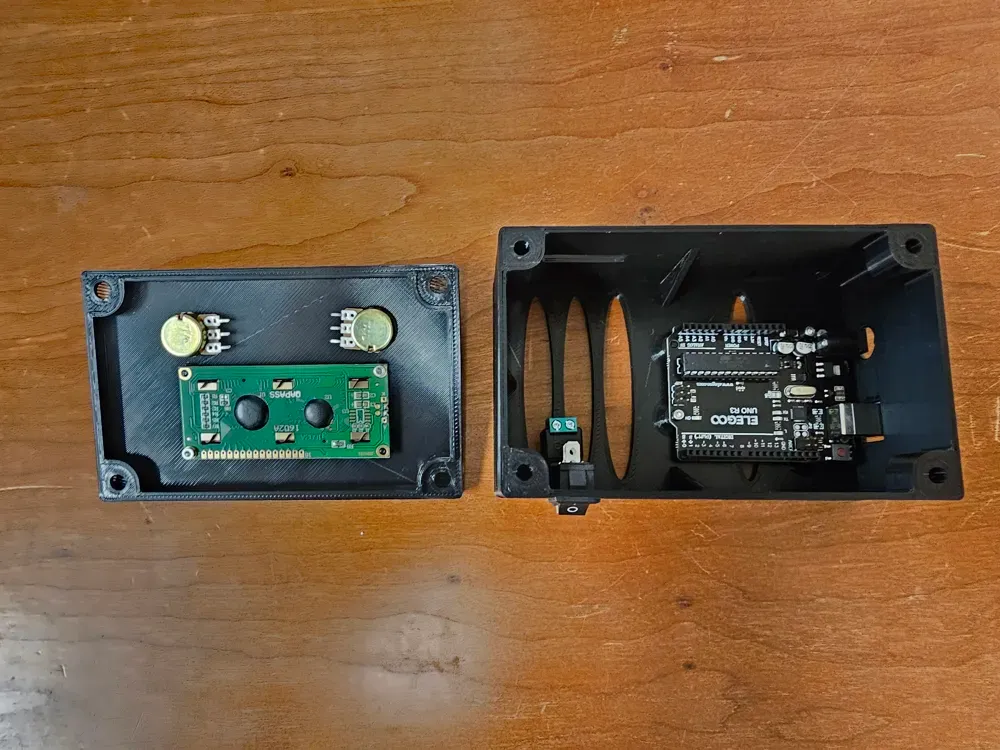

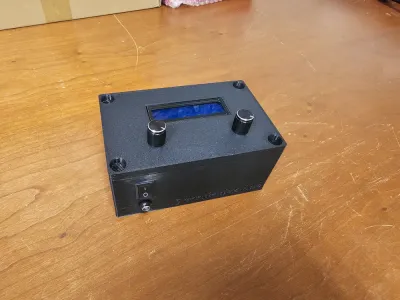

This box holds an arduino UNO with plenty of space for added shields and electronics. Box top has mounting for 1602 A lcd screen and two B10k potentiometers. Front of box has holes for a power switch rocker and power jack. M6 screws for mounting top to bottom, and to optionally mount the box to t slot or v slot aluminum. M2.5-M3 screws used for mounting arduino and LCD, holes may require some hand drilling to make room for M3 screws.



Prints without supports

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(2)

  • model file image
    box+top.stlDesigner

    889.34 KB

    2025-08-16

  • model file image
    Arduino_box_base.stlDesigner

    1.05 MB

    2025-08-16
