“The roar of the mecha engine is my signal—that means I’m here!”
Back when MW held a tissue box contest, I didn’t have much of an idea and ended up skipping it. Then, right after that, MO decided to run an identical contest… Fine, fine—what’s done is done!
Looking back, the more I think about it, the more I realize I missed out. If only I’d just held on a little longer—how I’ll regret it later!!!
I’m getting this built—today, I’m making it happen!!
Is this the kind of project that mech enthusiasts dream about?
- The design still channels the SRU Panyan Universe aesthetic (drawing inspiration from the launch pad area of my own pinnacle-powered LF-1 Outpost—where LP-01 refers to Launch Pad No. 1).
- A modular design ensures all four decorative panels are interchangeable (though due to material shrinkage, you may need adhesive to secure them in place—oil-based contact cement is highly recommended).
- The lid and main body connect via magnetic snaps; you’ll need eight 6x2mm round magnets.
- The box offers two versatile functions:
- It perfectly accommodates standard-sized pocket tissues.
- It doubles as a personalized storage container—I even added a four‑grid grid pattern; see the print settings for details.

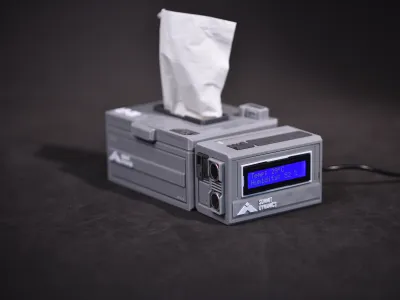

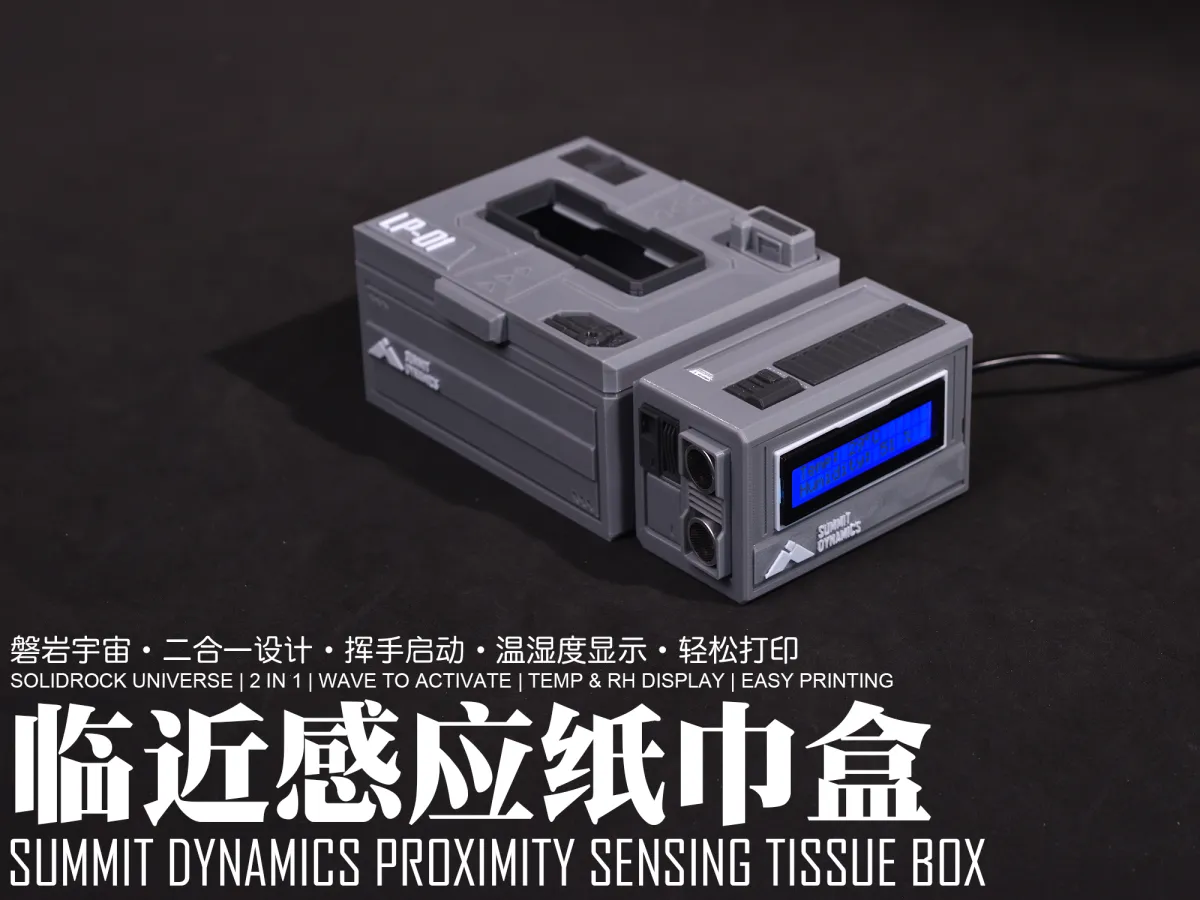

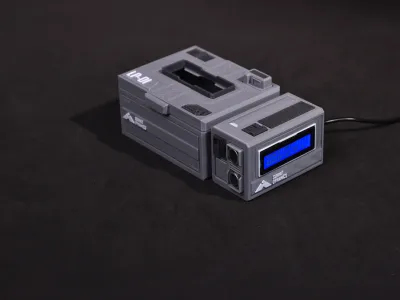

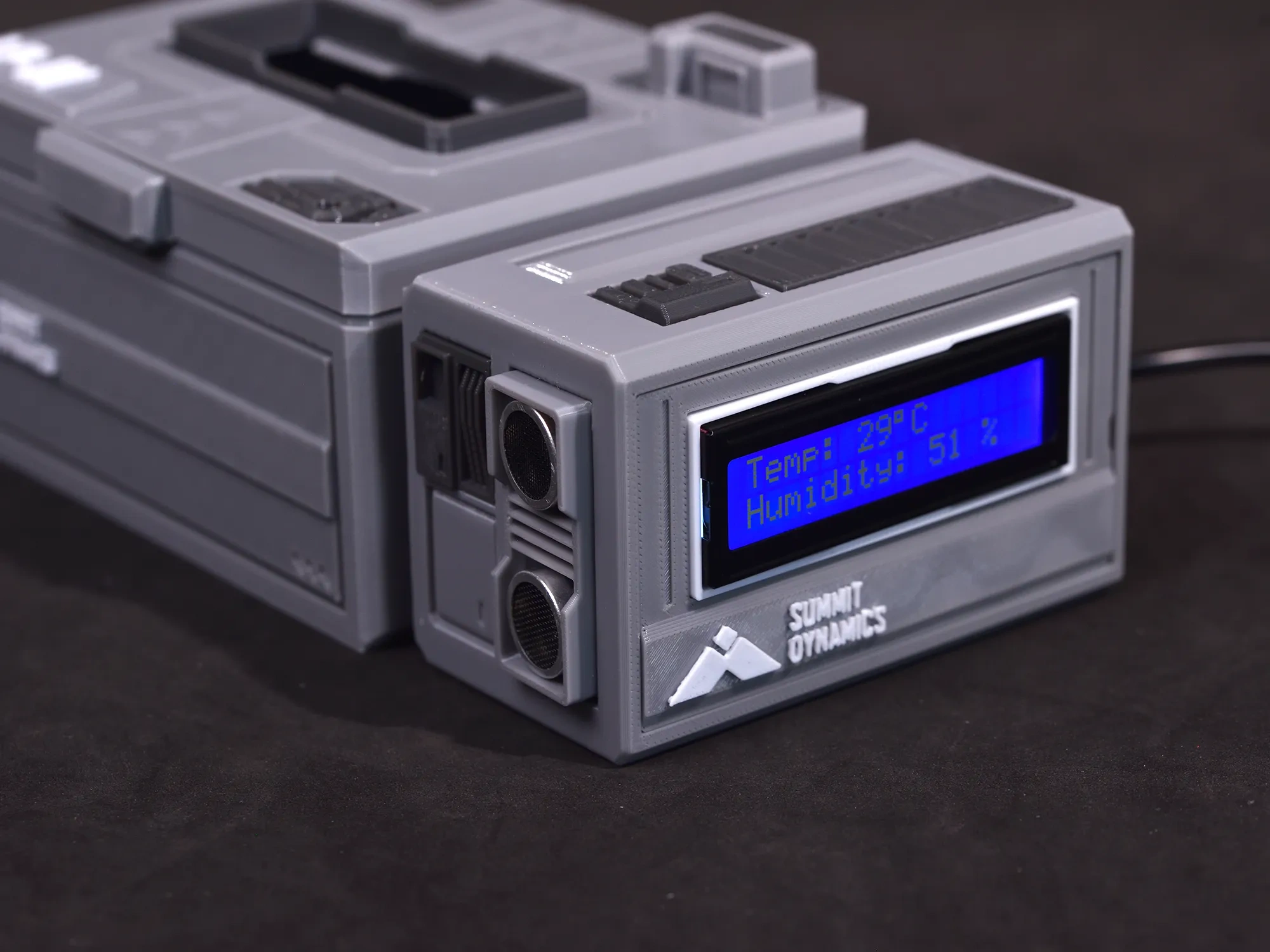

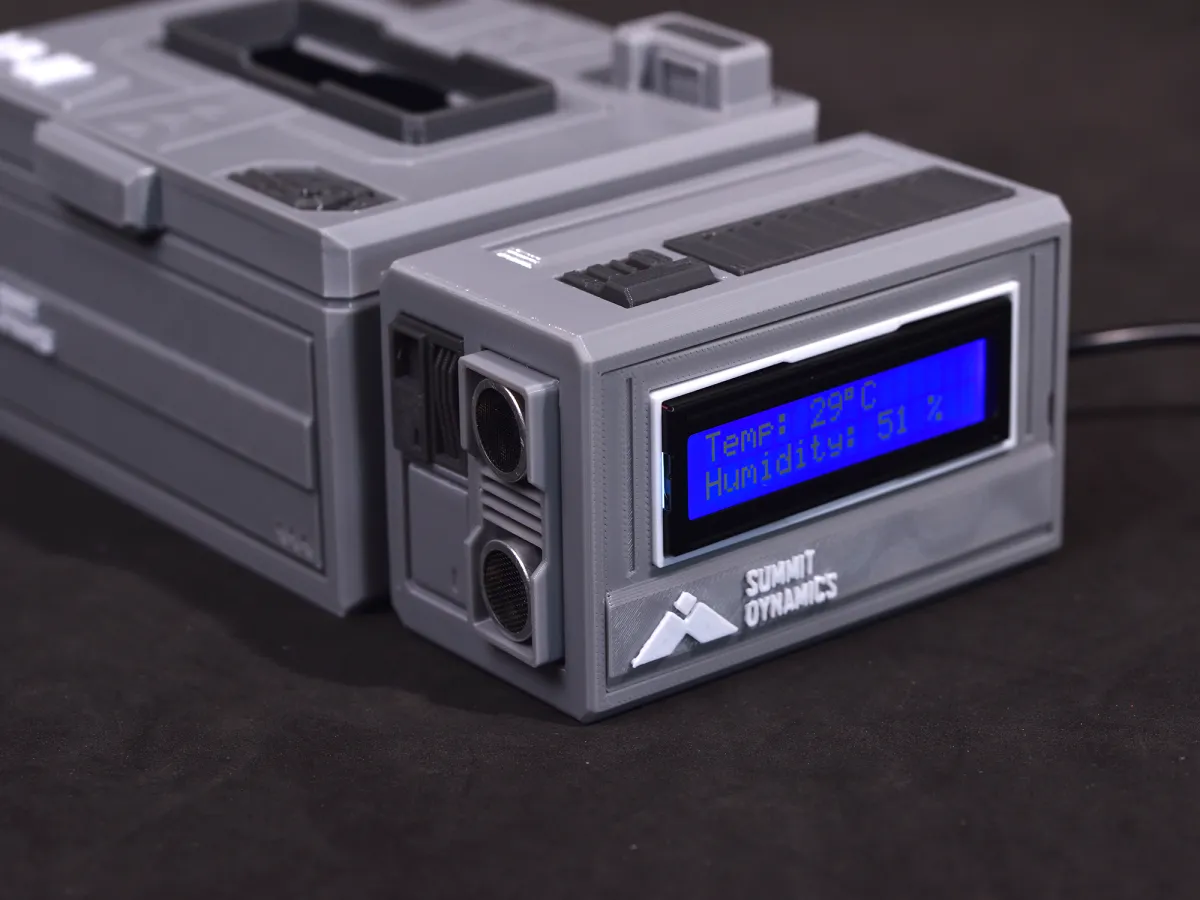

- [Updated April 20, 2025] Epic Upgrade—Ultrasound Sensing Module!

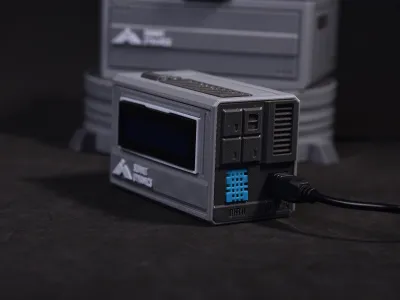

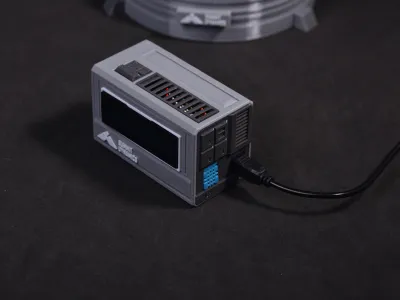

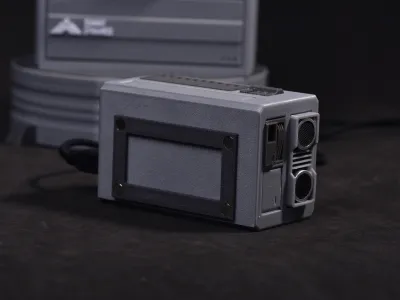

- Connects to the side of the tissue box via a new magnetic docking mechanism—and can also stand alone as a stylish decorative piece.

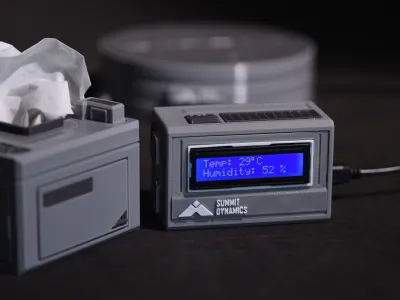

- Displays indoor temperature and humidity with stunning visual flair.

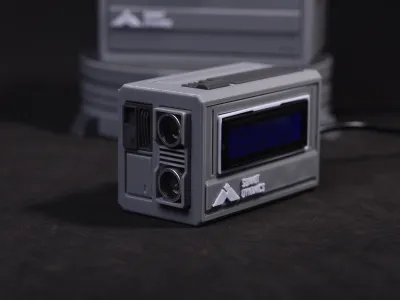

- Utilizing ultrasonic ranging technology, simply wave your hand within 10 cm of the front of the tissue box to activate the display, which will remain active for 8 seconds.
- Requires an Arduino UNO development board.
- Needs several DuPont jumper wires—male-to-female type, roughly 15 cables.
- Requires a soldering iron and related soldering accessories.
- Needs a DHT11 temperature and humidity sensor module.
- Requires an SR04 ultrasonic ranging module.
- Needs a 1602A LCD screen (not the IIC version—this one has 16 pins).
- Requires the Arduino IDE development software (I’ve already written the code for you—see Document 1).
- Accurate wiring is essential—refer to Document 2 for detailed instructions.
Bill of materials
- NameQuantityNotes
- 1Arduino UNO1(只需要纸巾盒本体的话就不用这个)
- 21602A屏幕1(只需要纸巾盒本体的话就不用这个)
- 3DHT11温湿度模块1(只需要纸巾盒本体的话就不用这个)
- 4SR04超声波模块1(只需要纸巾盒本体的话就不用这个)
- 56*2mm圆形磁铁8(只需要纸巾盒本体的话就不用这个)
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
Models(2)
巅峰动力货柜收纳盒.3mfDesigner432.64 KB
2025-08-14
智能温湿度模块.3mfDesigner220.25 KB
2025-08-14
