Simple Dial Indicator Mount for MGN, HGH rails

Print Profile(1)

0.2mm layer, 4 walls, 25% infill

3-disc

PLA

Designer

Released 2025-08-16

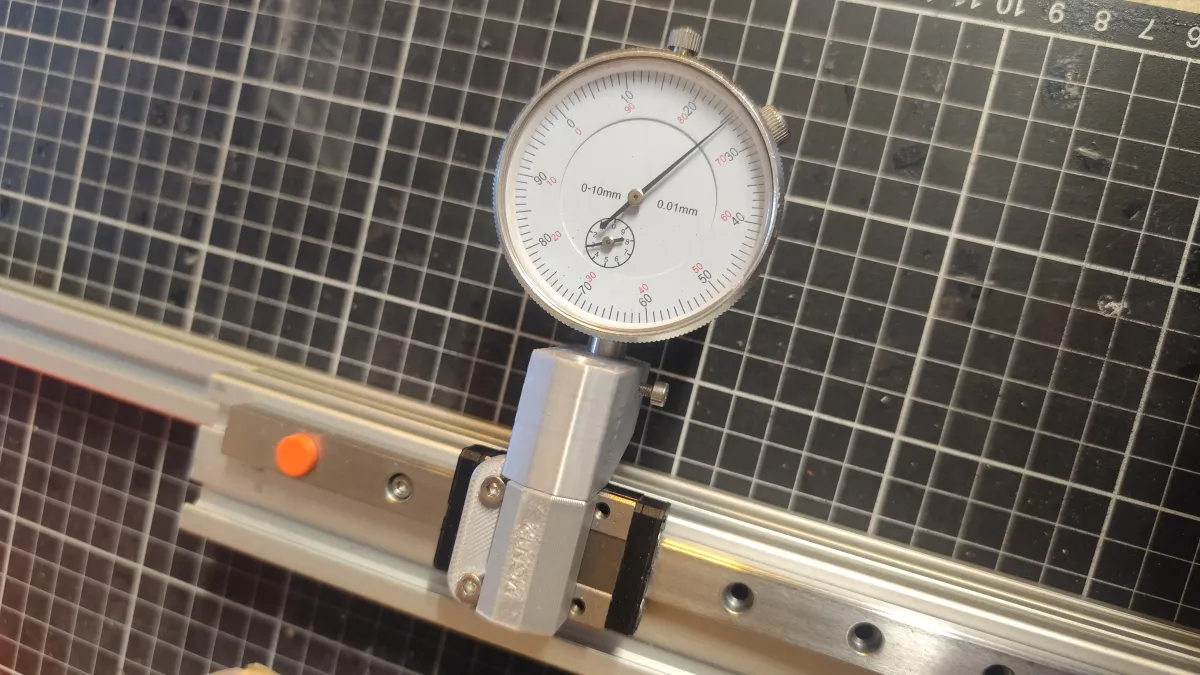

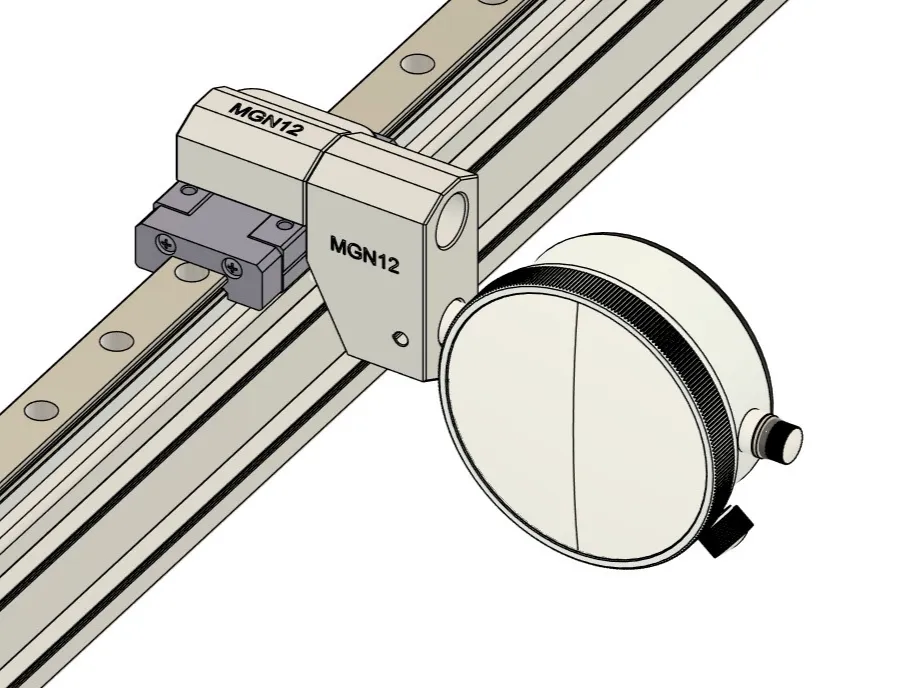

I created a simple mount for dial indicator, so this way I can check the parallelism of my linear rails without a special magnetic mount.

Currently I uploaded for MGN9(H/C), MGN12(H/C) and HGH15CA rails.

You will need 1pcs M5x20-40mm screw and 1-2pcs m3x5-6mm screw.
