Update 6/4/2017
- Made zip tie holder slightly larger; small (2.6mm x 100mm) zip ties did not fit in notches
Update 5/12/2017

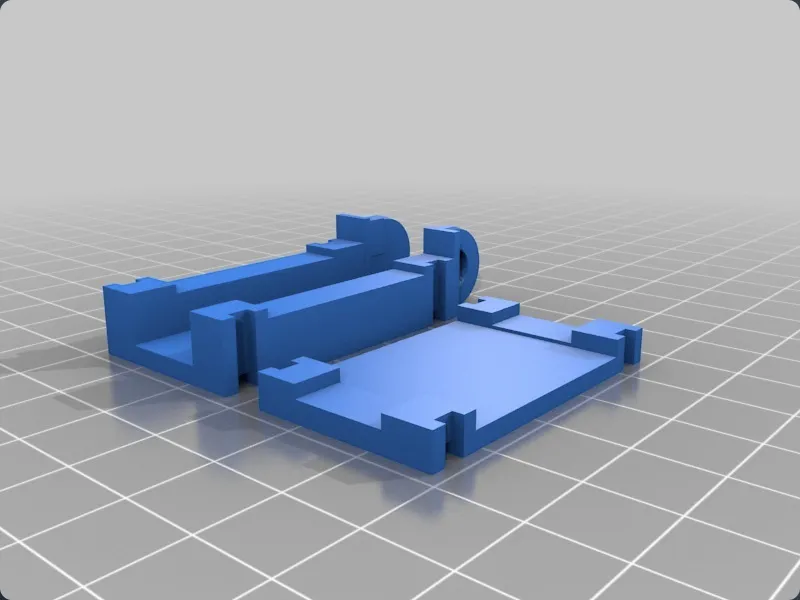

- Created left side and right side for underbed mount
- Base is now 3mm on both extend and corner piece.
- Base issue doesn't load in Cura 15.03; A bug: https://ultimaker.com/en/community/16787-cura-150602-does-not-create-infill-in-shaft

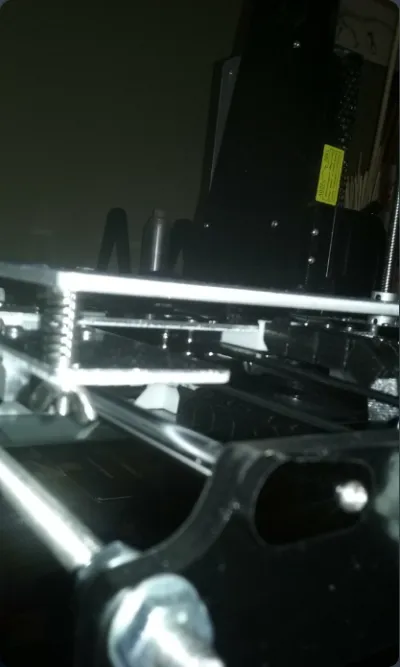

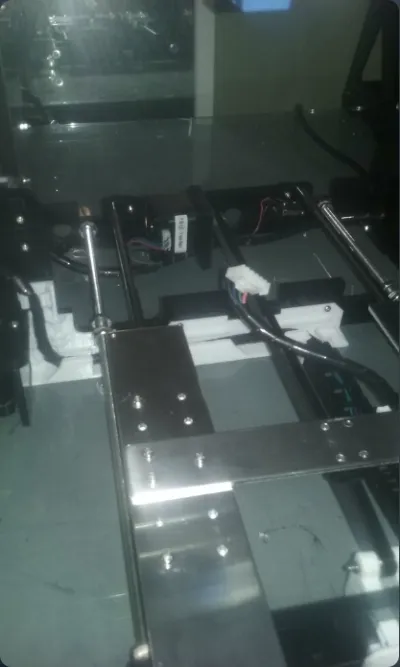

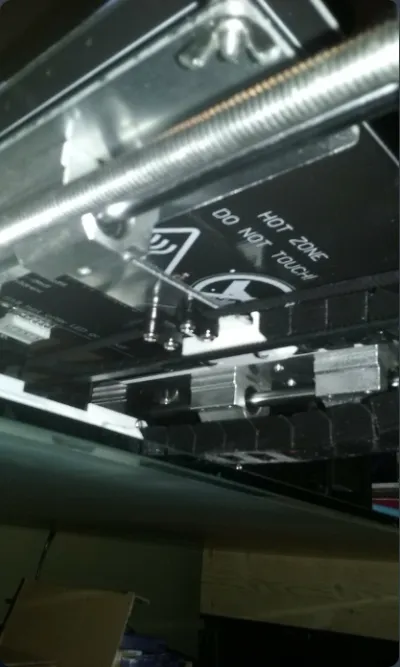

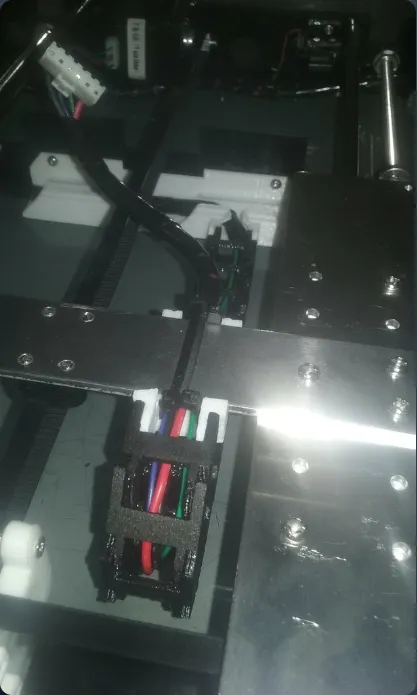

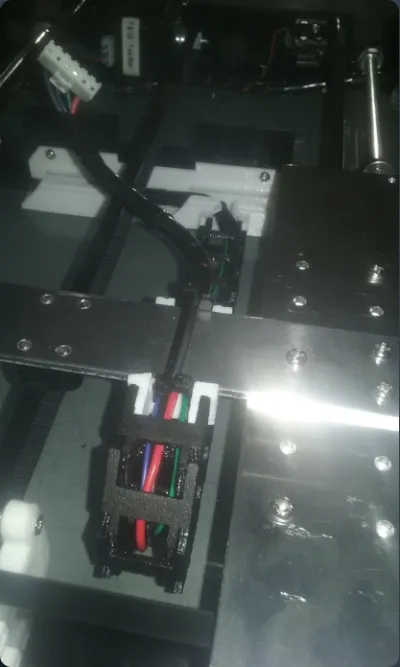

LexDK had a great vision putting the cables under the bed. I just took his idea and extended it. I've made it easier to mount the end chain to the bracket by making it a two piece (I'm made two versions; a zip tie one and a nut and bolt mount). I've also opened the management trays so it easier to add/remove wire and extended it to make secure it better. I've also didn't want to run the wire under the frame so I decided to use ryks corner bracket and modify it a little for this setup.
Originality of the Model
The author declares that this work is their personally shared model
This model is licensed under the following terms:
Credit must be given to the creator
Models(7)
Anet_A8_Y-axis-wire_corner_guide.stl423.42 KB
2025-07-18
Anet_A8_Y-axis-wire_end_chain_bracket_with_screws.stl9.83 MB
2025-07-18
Anet_A8_Y-axis-wire_end_chain_bracket_with_zipties.stl147.45 KB
2025-07-18
Anet_A8_Y-Axis_chain_mount_extended.stl3.04 MB
2025-07-18
Anet_A8_Y-Axis_chain_mount_leftside_extended.stl4.54 MB
2025-07-18
Anet_A8_Y-Axis_chain_mount_rightside_extended.stl3.04 MB
2025-07-18
Chain_x4.stl1.26 MB
2025-07-18
