CC1 Riser and Lowered Canvas
Print Profile(0)
263
24
Released 2026-06-12

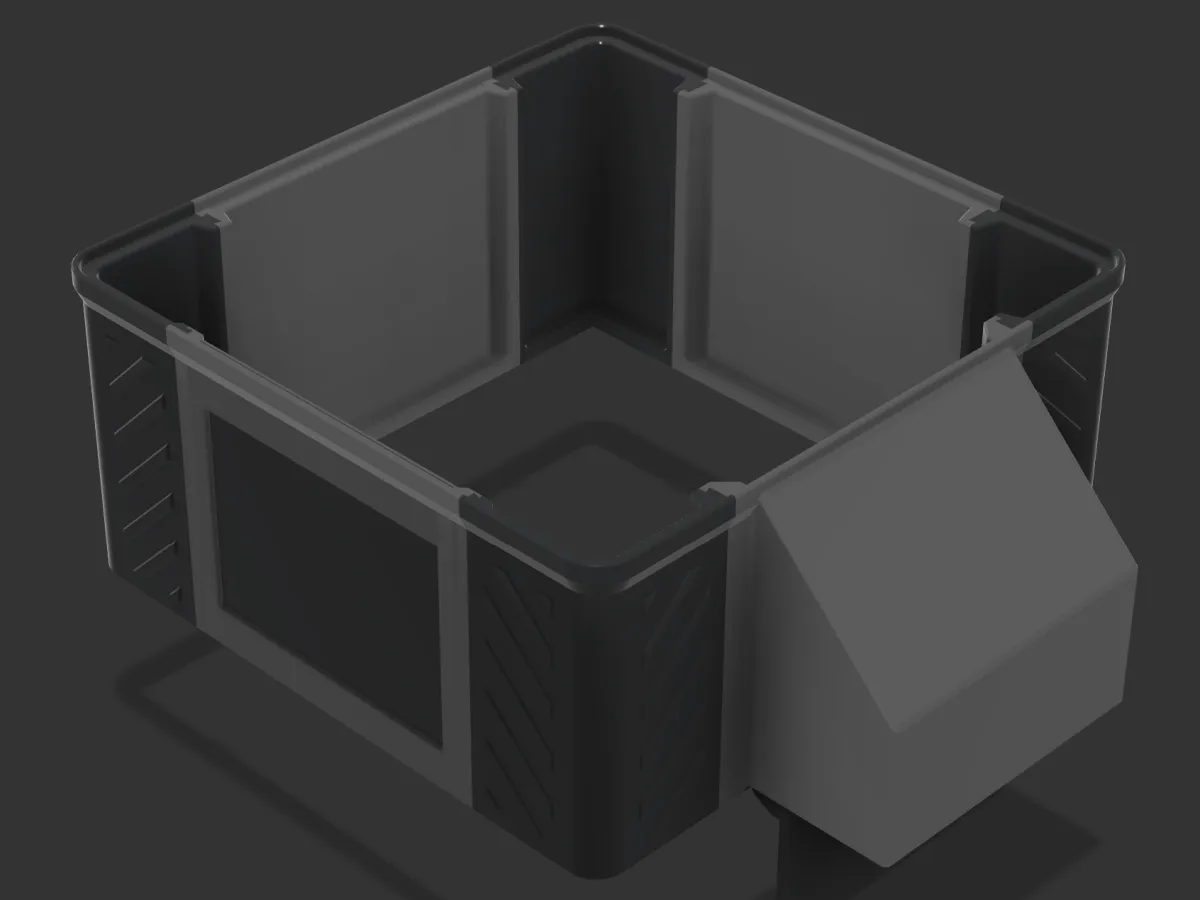

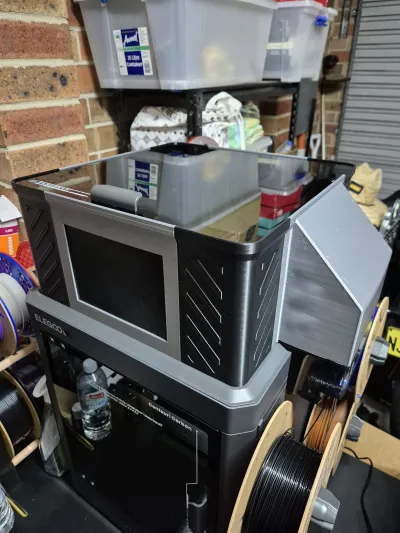

I lowered the canvas and created a riser that puts the height around 670mm including handle similarly to the CC2 Emoji.

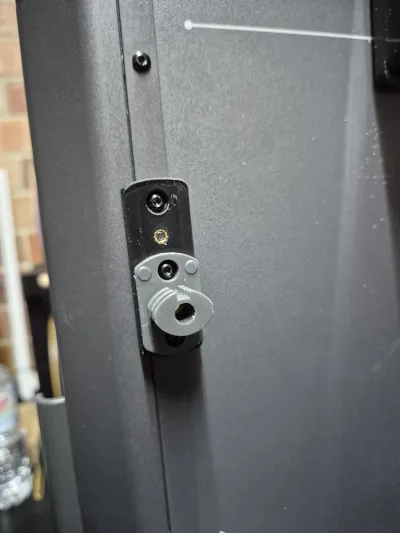

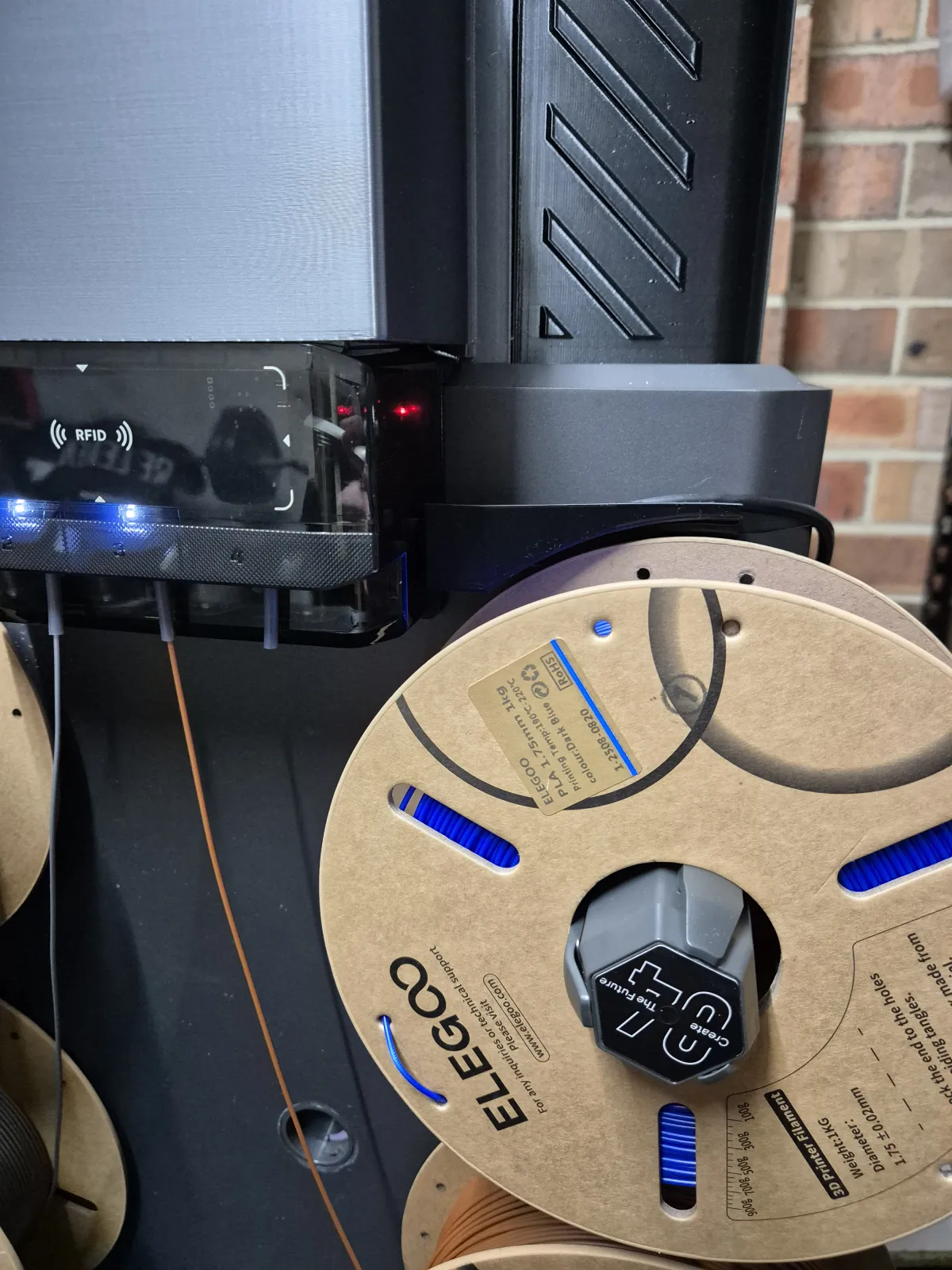

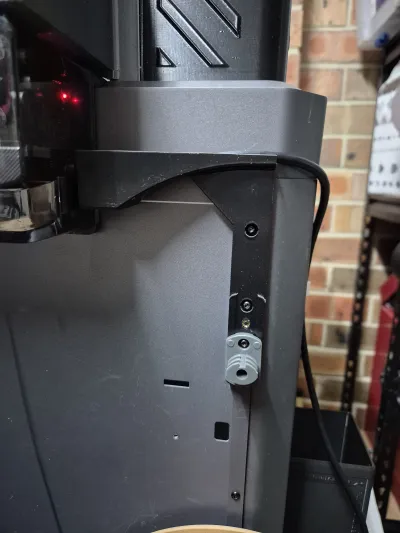

The top spool brackets are lowered and the rear bracket has a shield to protect the canvas cable when swapping spools.
Hardware for lowering brackets
- 4x M3x4 heatsets
- 2x M3x6 countersunk screws
- 2x M3x8 screws
Originality of the Model
The author declares that this work is their personally remixed model
Adaptation source:https://github.com/OpenCentauri/cad
This model is licensed under the following terms:
Credit must be given to the creator
Models(5)
Canvas Riser and Bracket.3mfDesigner
538.87 KB
2026-06-12
- Canvas Lowering.3mfDesigner
267.65 KB
2026-06-12
- Canvas Riser.3mfDesigner
282.27 KB
2026-06-12
Canvas Riser.stepDesigner1005.32 KB
2026-06-12
Canvas Lowering.stepDesigner260.25 KB
2026-06-12
