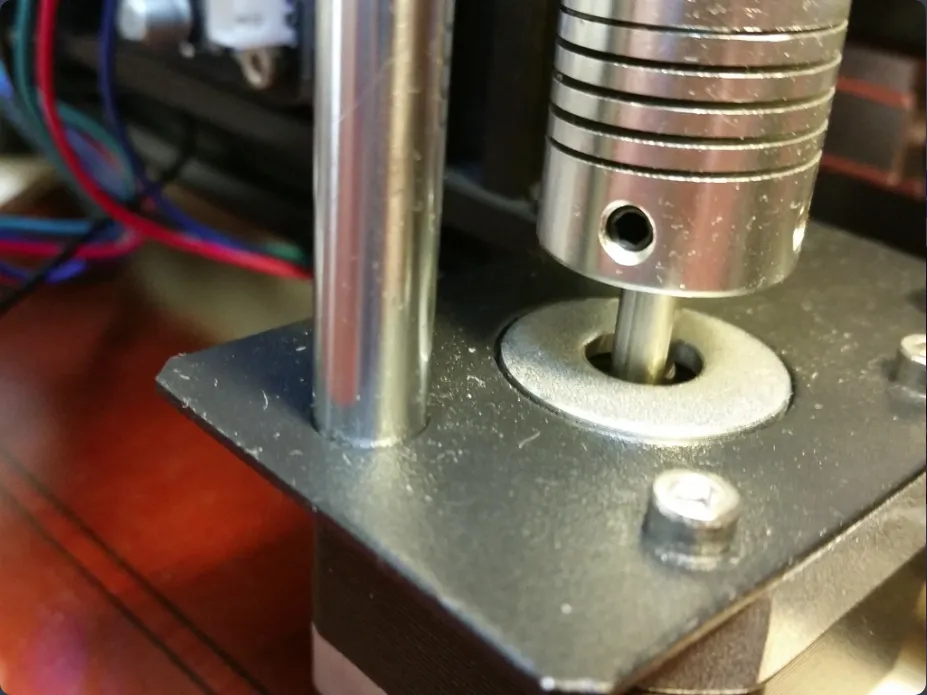

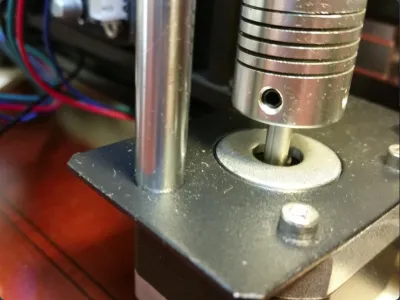

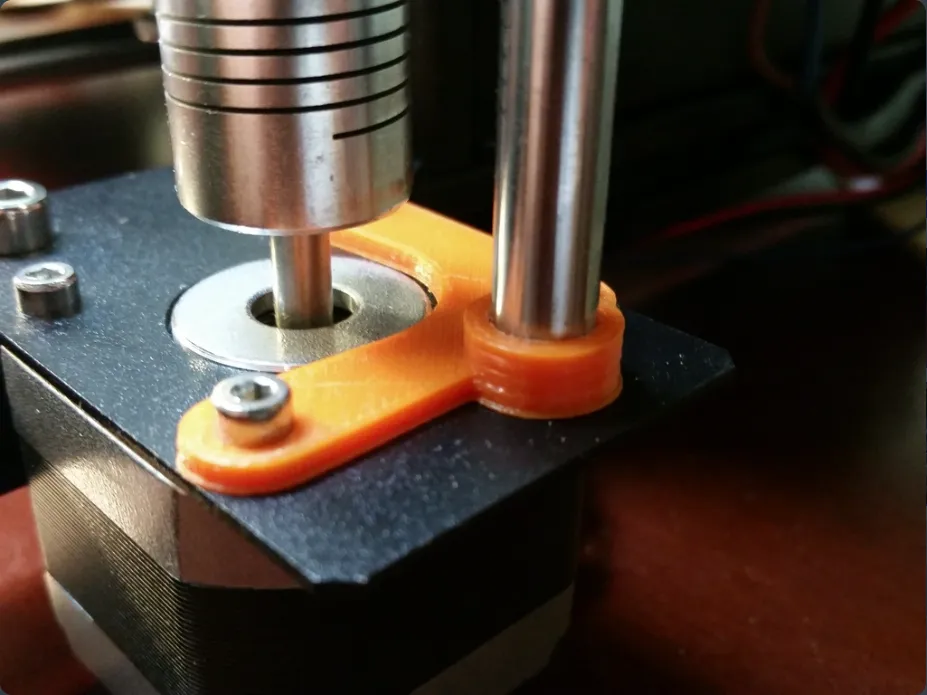

Brace to keep bottom end of the smooth Z-Axis rods from popping out of the metal stepper motor mounting bracket. The mount is barely .5mm thick and I noticed that mine would come out with the Z-Hop when moving around prints.

You will need to print one as is and mirror the brace to produce one for the opposing side.

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
daks07

This model is licensed under the following terms:

Credit must be given to the creator

Models(1)

  • Z-Braces.stl

    233.28 KB

    2025-07-18
