Bench grinder tool rest

Print Profile(0)
10
1
Released 2025-07-21
Inspired by so many grinder rest tool designs, but based on the one described @ http://thesorteddetails.blogspot.co.nz/2011/02/grinder-tool-rest-free-plan.html
I decided to design my own plastic version.
v. 2 - Updated the bolt hole in the base as it wasn't big enough for a round head bolt.
Originality of the Model
The author declares that this work is their personally shared model
Reprint source:https://www.thingiverse.com/thing:2614656
This model is licensed under the following terms:
Credit must be given to the creator
Models(5)

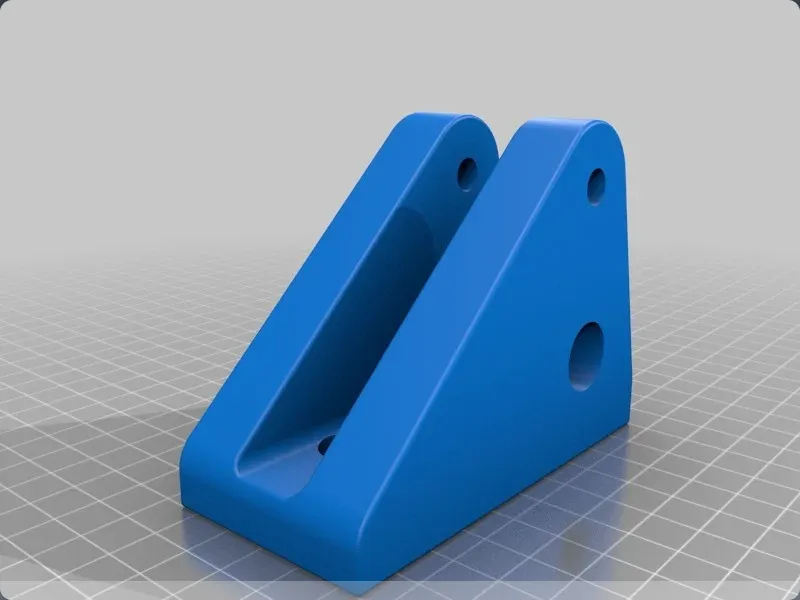

Base.stl716.49 KB
2025-07-04
Big_Knob.stl1.05 MB
2025-07-04
Platform.stl319.52 KB
2025-07-04
Tool_rest_Drawing.pdf422.05 KB
2025-07-04
Top_Platform.stl273.13 KB
2025-07-04
