3D PCB Clamp

Clamp
PCB

3D PCB Clamp

Perinski

Print Profile(2)

0.1mm layer, 2 walls, 100% infill

3-disc

ABS

Designer

0.08mm layer, 3 walls, 100% infill

3-disc

PLA-CF

Designer

Released 2025-06-19

Details

Files(2)

Makes & Comments (0)

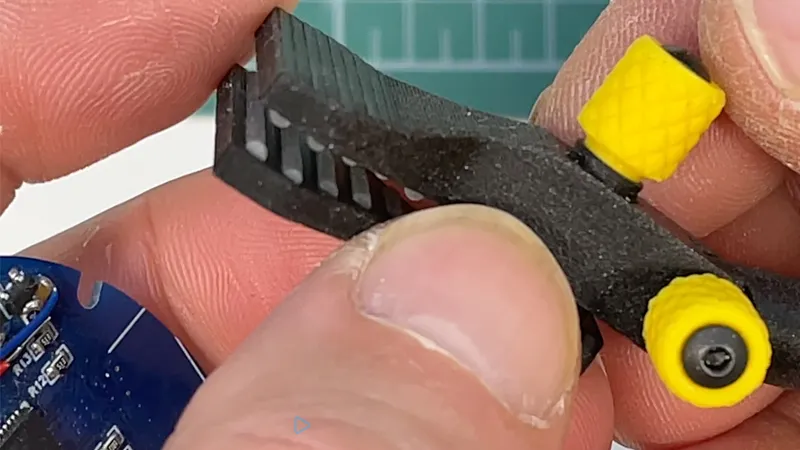

Reliable clamps for soldering, filming, and pure satisfaction

While working on one of my projects that involved fine-pitch soldering—specifically of the kind of chips you see in the photo—I ran into a classic issue: how to hold a board securely while keeping it accessible from all angles? Especially when it’s not a one-off build, but a series of small-batch or one-off setups that require a lot of hand-wiring.

I’ve got plenty of alligator clips. But they’re always a compromise—flimsy, awkward, or just plain ugly on camera. And I need this not just for working, but for showing the process too. For you, and for myself.

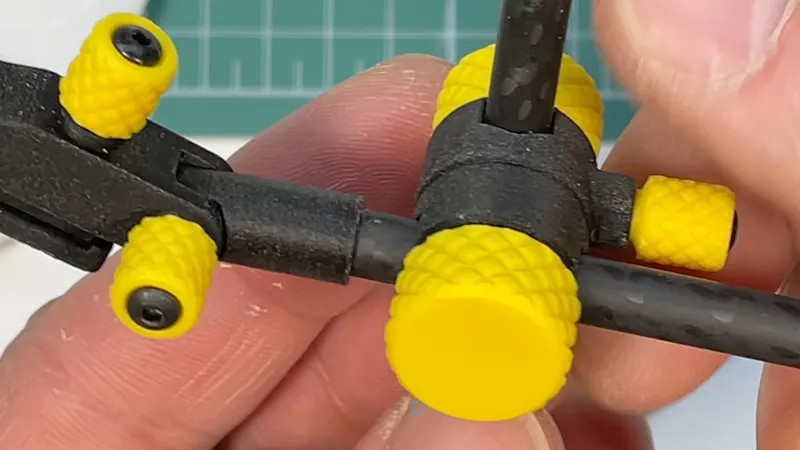

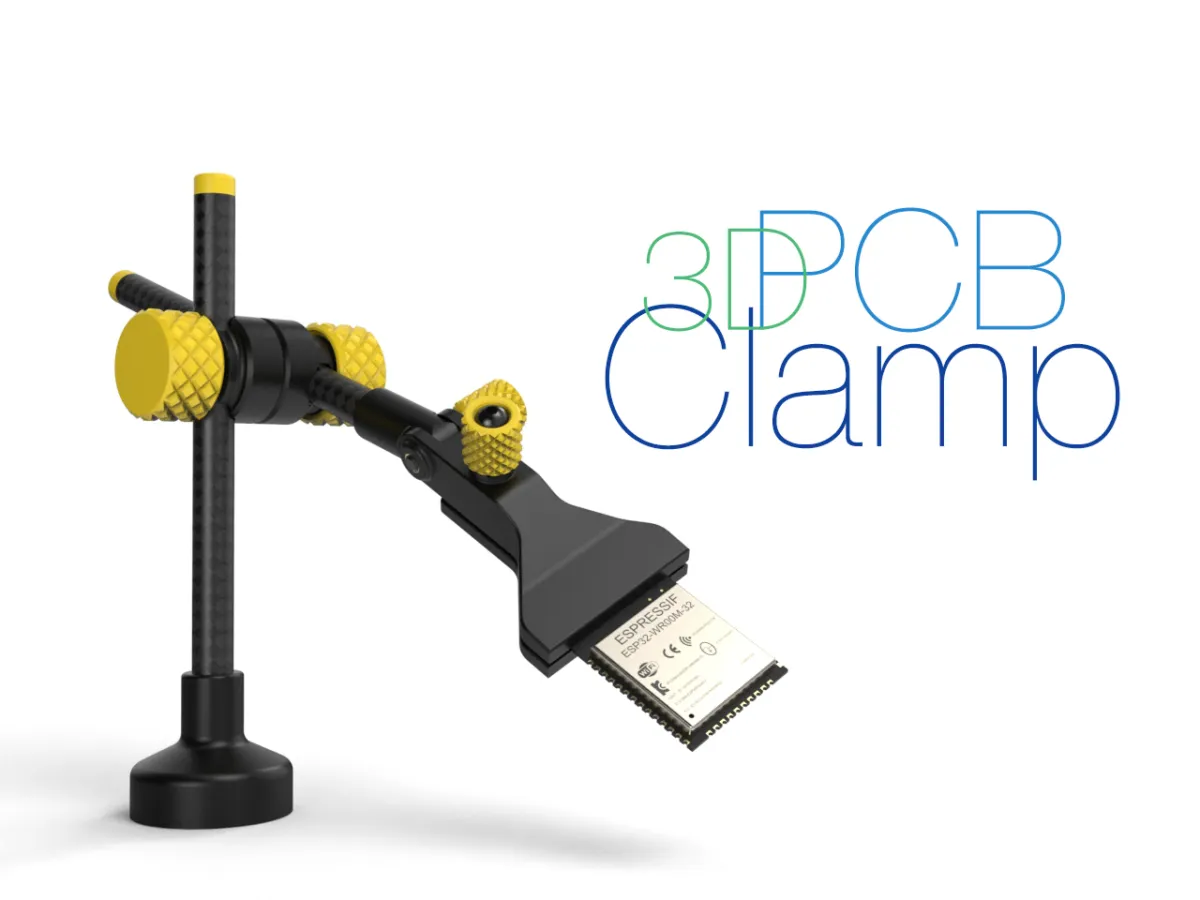

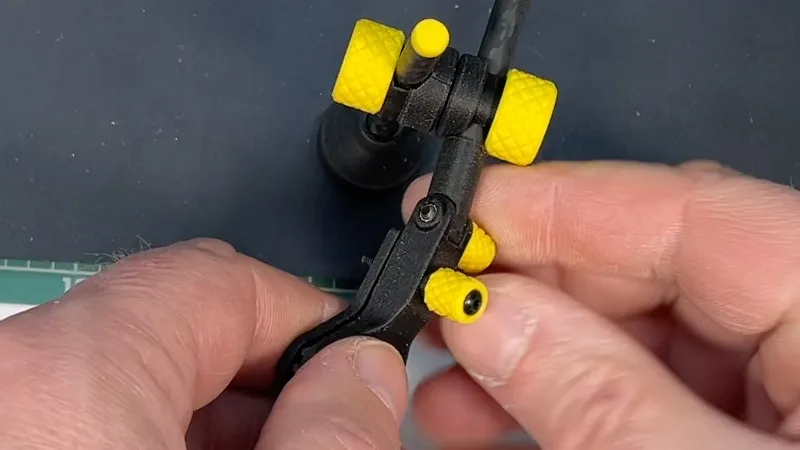

That’s how the idea for these 3D clamps came to life. Fully articulated and lockable in any orientation. Upside down? Angled? Straight? No problem. It made soldering way more comfortable—and filming, a breeze.

A bit about the design

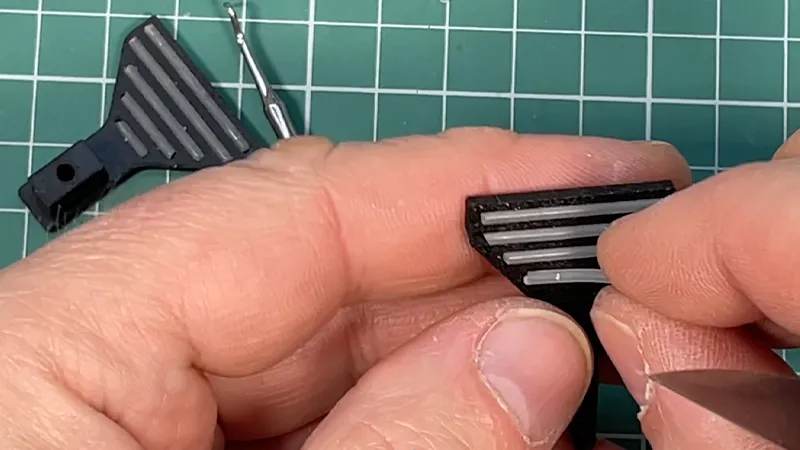

At the core are carbon fiber tubes I had left over from another project. They called for grippy, reliable clamps—and I went through three design iterations:

First version: O-ring rubber tension. Holds, but too shaky.
Second: magnetic grip. Better, but not quite there.

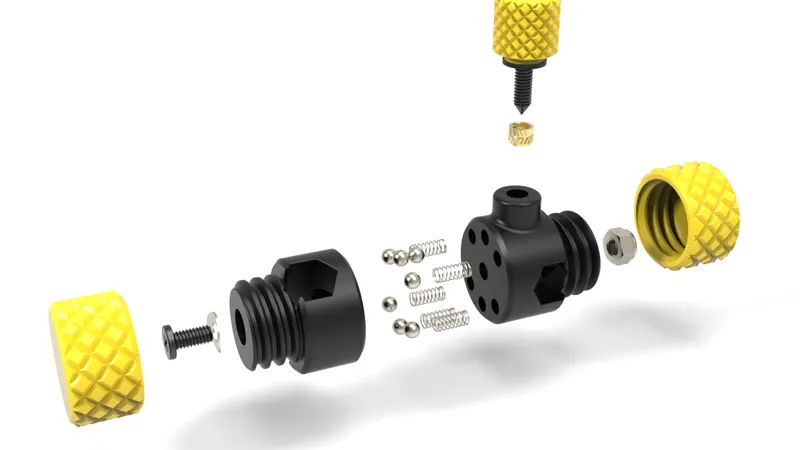

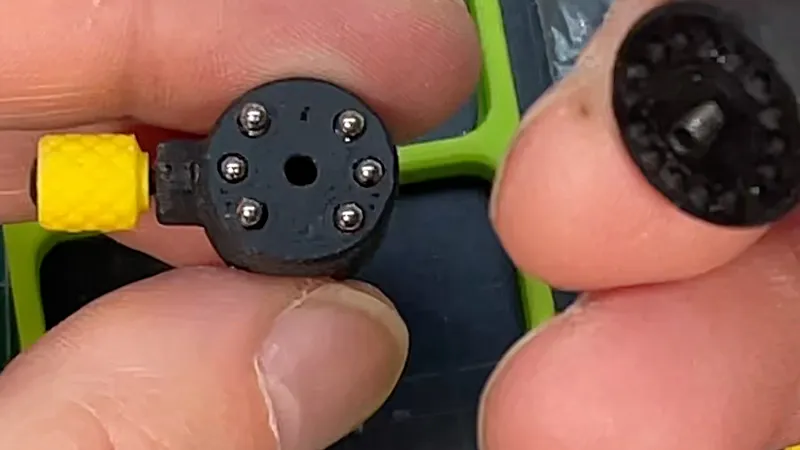

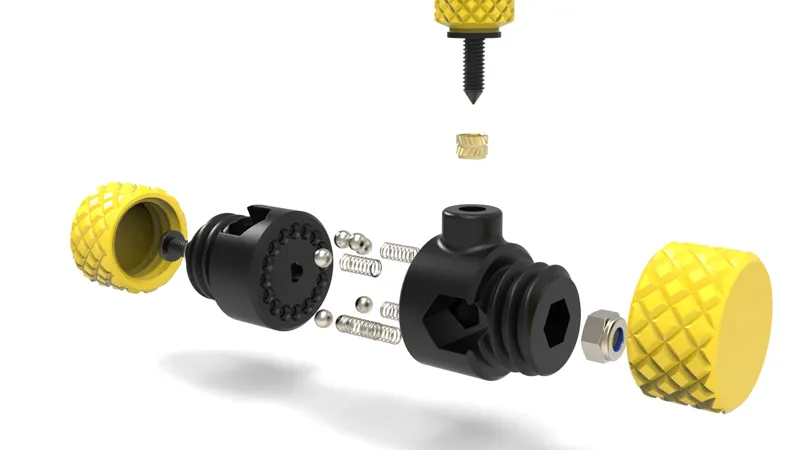

Third: ball-and-spring detents. That’s the sweet spot. Locks the board firmly but lets you insert it effortlessly.

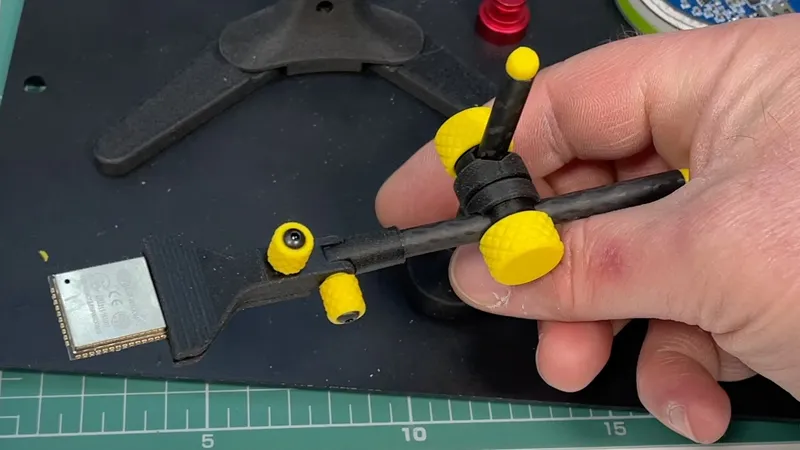

The base is a thick metal plate, with the clamp held in place by a strong magnet. Stability? Rock solid. I printed all the black parts in PLA Carbon—stiff, strong, and sharp-looking. The yellow knobs are ABS for a bit of texture and contrast.
