📏 Digital Dial Indicator Mount for Anycubic Kobra S1 Combo

Compatible with this indicator:

🔗 0.01mm/0.0005" Digital Dial Indicator – Amazon USA

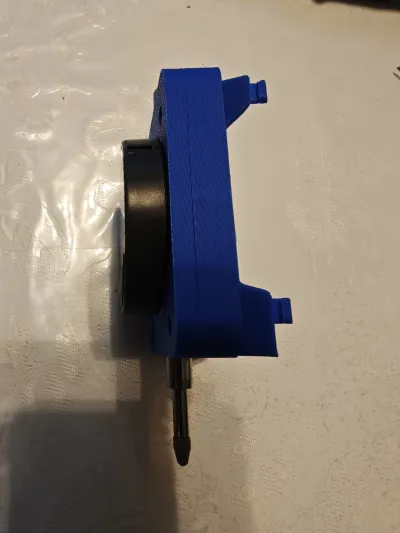

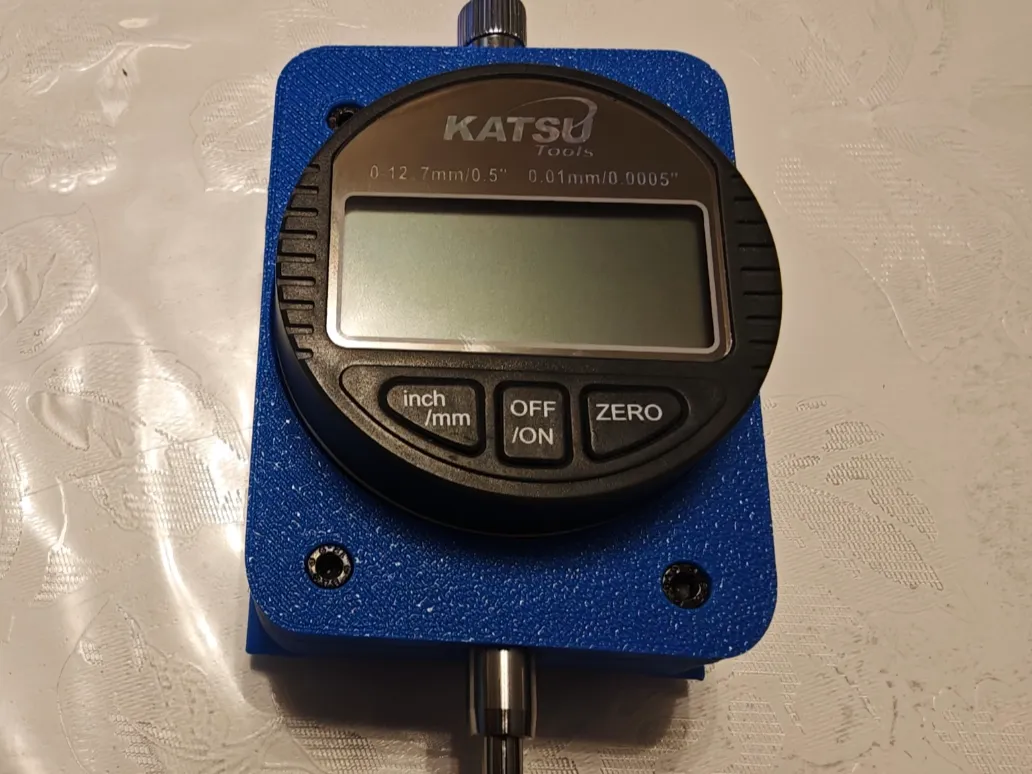

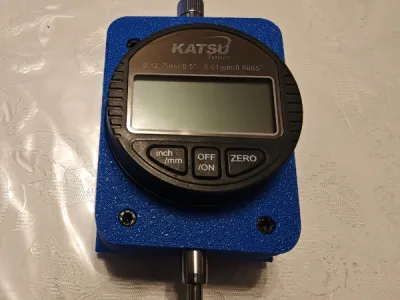

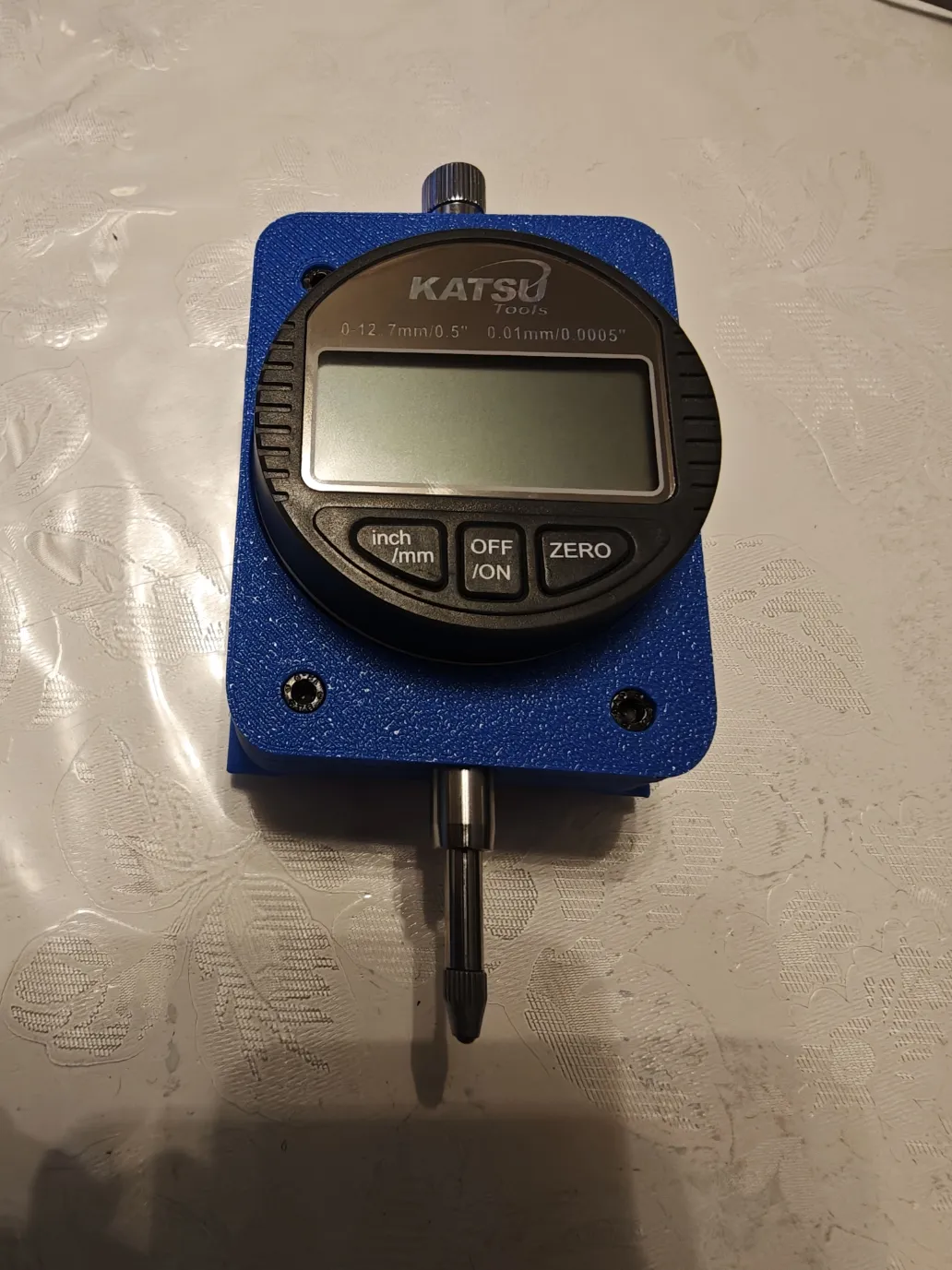

This is a custom-designed digital dial indicator mount made specifically for the Anycubic Kobra S1 Combo. It is tailored to fit the 0.01mm / 0.0005" digital dial indicator (linked above) and fits securely into the front cooling fan slot of the printer's printhead assembly.

🧩 Features:

• Designed exclusively for the Anycubic Kobra S1 Combo.

• Compatible only with the linked digital dial indicator (8mm shaft diameter).

• Printed in two separate parts, to be assembled using 4x M3x6 screws.

• Mounts directly into the fan opening of the printhead.

• Provides a rigid and precise platform for bed leveling using digital readouts.

🛠️ Assembly:

1. Print both parts.

2. Secure them together using four M3x6 screws.

3. Insert the digital dial indicator.

4. Snap the mount into the printer's front fan slot.

📐 Print Settings:

• Material: PLA, PETG, or ABS

• Layer height: 0.2 mm

• Infill: 20–30%

• Supports: ✅ Required

• Print orientation: Flat on the base for best accuracy and fit

💡 Usage Instructions:

• Install the mount on the printhead.

• Zero the dial indicator at the center of the bed.

• Move the printhead to different corners and adjust your bed until the readings are consistent.

⚠️ Notes:

• This mount is not compatible with other different dial indicators.
