NOTE: This is a cross-posted remix model from Printables site, which can be found here

A remix of a very nice IEM case from @KnifeLover_2335150 (from Printables) with larger dimensions!



This remix require 6mmx3mm magnets instead of 6mmx2mm in the original



Both a regular case and a case with a divider have been included in the remix. The regular version now has larger interior dimensions at 64Lx80Wx31H. The version with the divider (V2) has been updated to accommodate Fiio BTR13 and other BT dacs with dimensions smaller than 64Lx20Wx31H, with the IEM portion having 64Lx60Wx31H in total

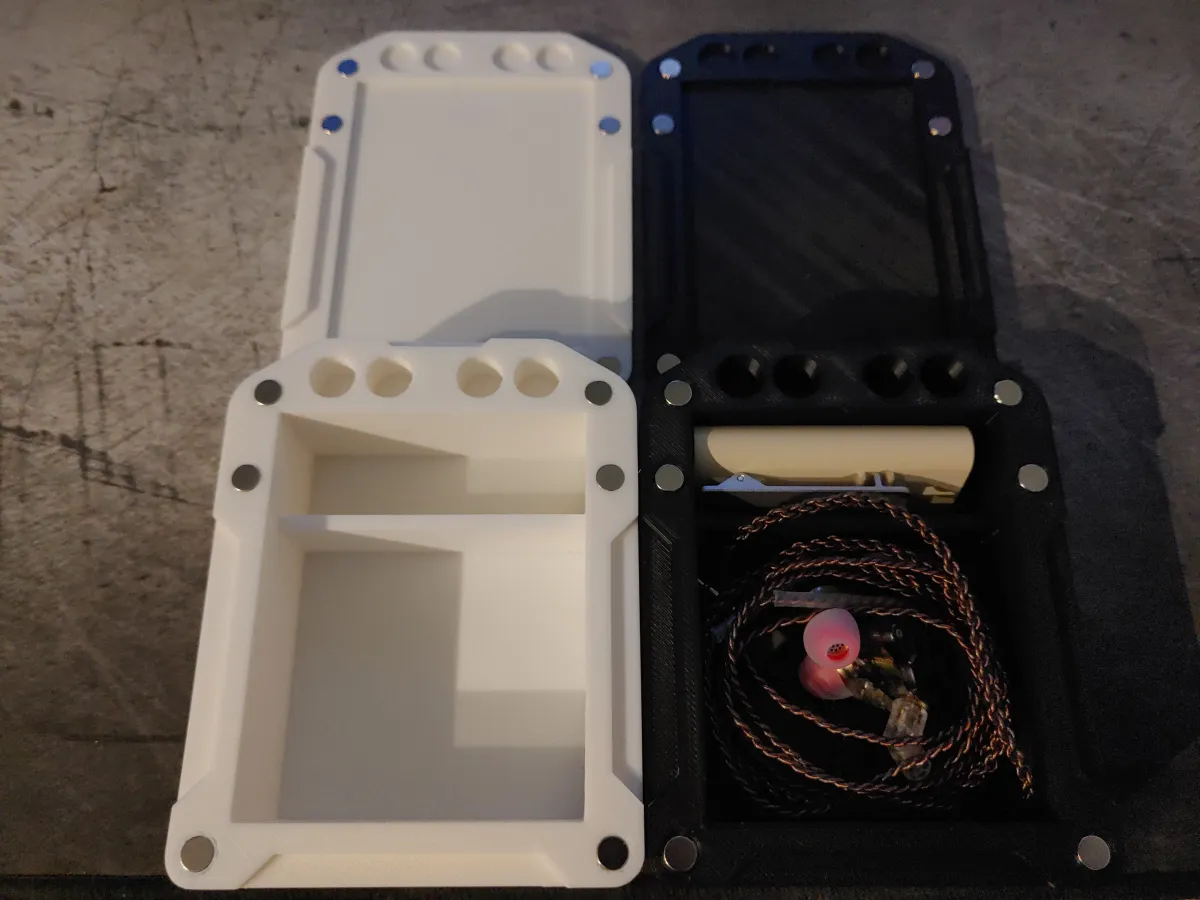

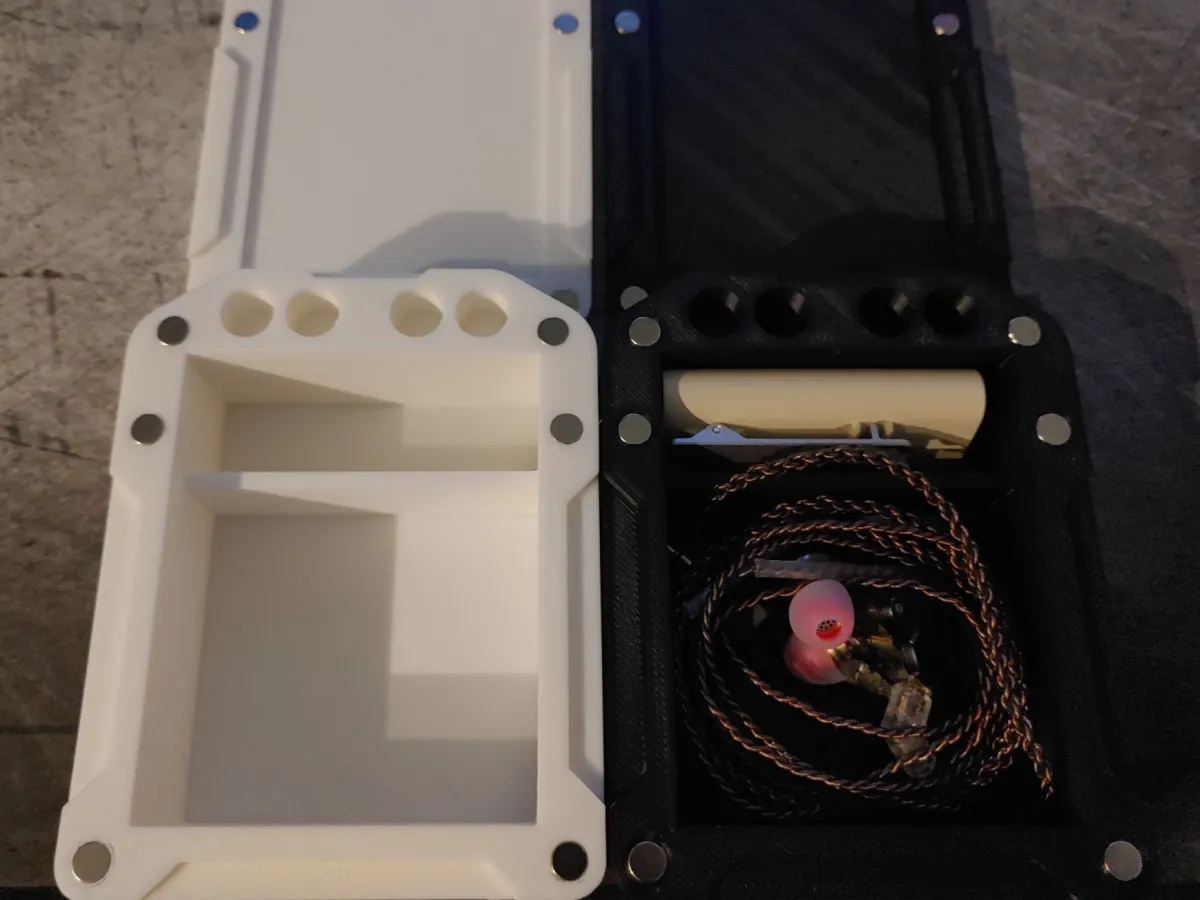

For reference, the photo has Hiby W3 II and KZ ZSN Pro for scale



Depending on the print accuracy, 6mmx3mm magnets can be either inserted easily, thus needing superglue to hold them in the cavity, or they would require strong enough of a force to push them inside for a snug fit

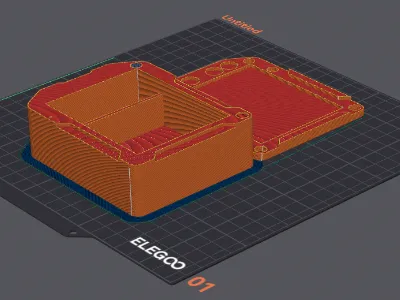

Printed using Elegoo PLA+ filaments at 0.2mm layer height and 25% infill, no supports

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    6mm x 3mm Neodymium magnet
    12

Originality of the Model

The author declares that this work is their personally remixed model

Original creator:
KnifeLoverFlyingButter

This model is licensed under the following terms:

No Copyright.

Models(4)

  • iemcasecap_64lx80w_6x3mmmagnets.stlDesigner

    169.22 KB

    2025-05-09

  • iemcasebody_64lx80wx31h_6x3mmmagnets.stlDesigner

    161.70 KB

    2025-05-09

  • iemcasebodyv2_64lx80wx31h_6x3mmmagnets.stlDesigner

    162.58 KB

    2025-05-09

  • model file image
    EN3PRO_IEMMagneticBox.3mfDesigner

    141.68 KB

    2025-05-09
