Dewalt drill (DCD800/805/999/1007) bit holders
Print Profile(1)
  • Left and right bit holders

    3-disc

    ABS

    Designer

0

6

57

11

Released 2025-05-09
Details
Files(1)
Makes & Comments (0)

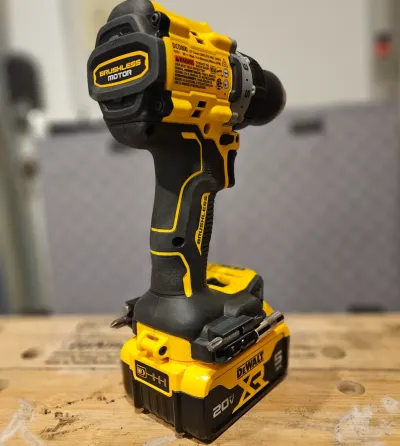

Made this pair of drill bit holder attachments for my trusty DCD800 since I like having half a dozen bits on me.  The DCD800 has the newest design for Dewalt drills along with the DCD805, DCD999, and DCD1007, so these will work with all of those.

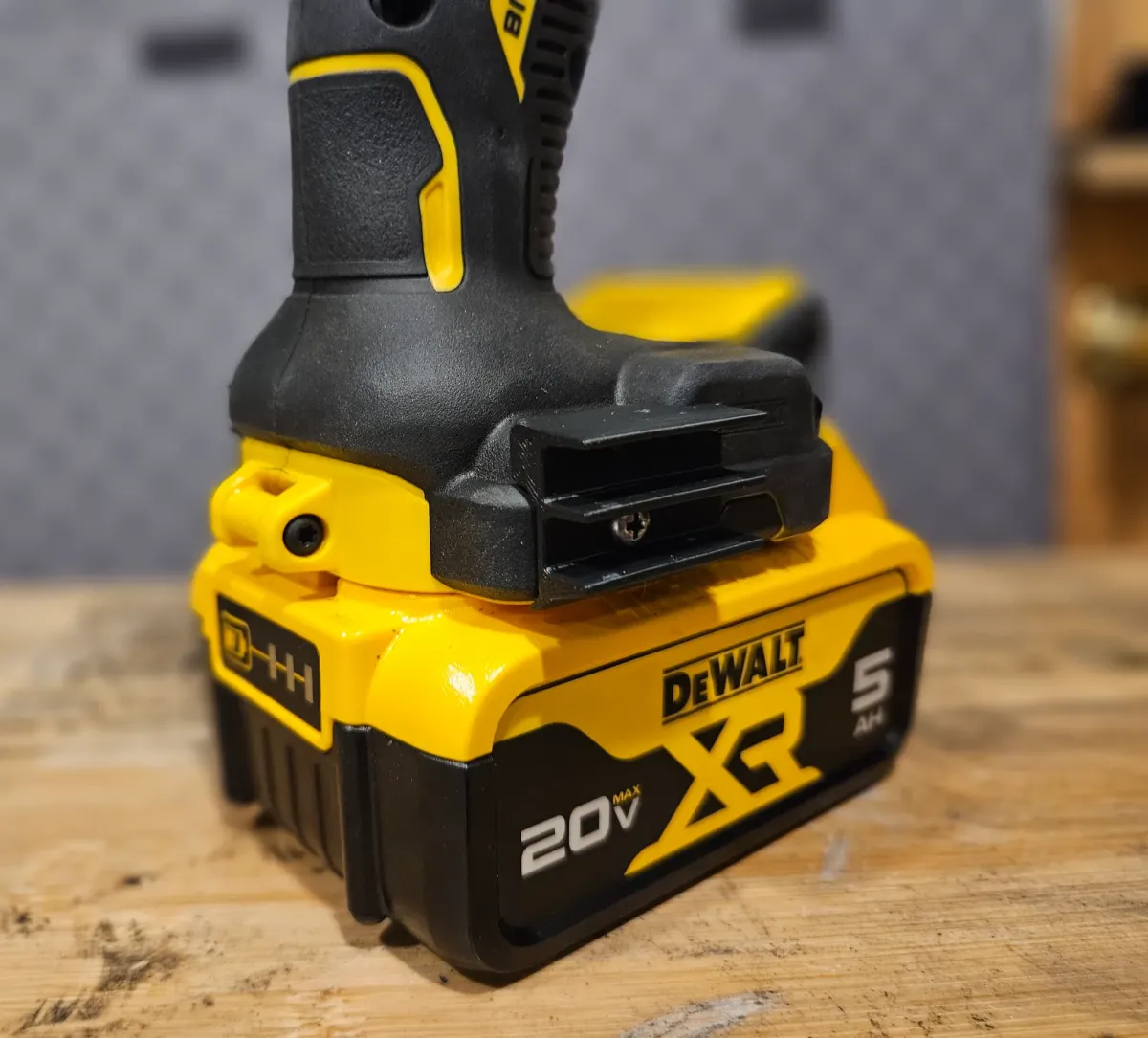

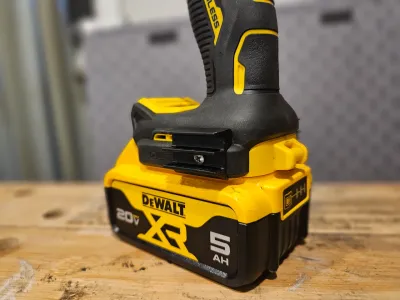

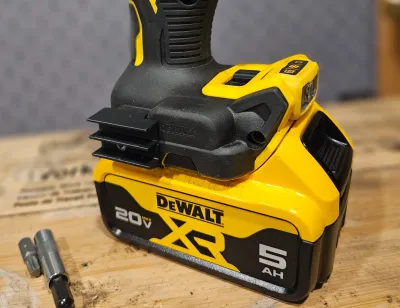

They're contoured to fit snugly and very securely, with an M3 screw (10mm long) and protruding nubs holding them on the same way that the belt clip attaches. Left and right attachments are unique due to the design of the drill. They're actually quite stable without screws entirely. I suggest using a material with some flex like ABS or ASA, but just about anything will work.

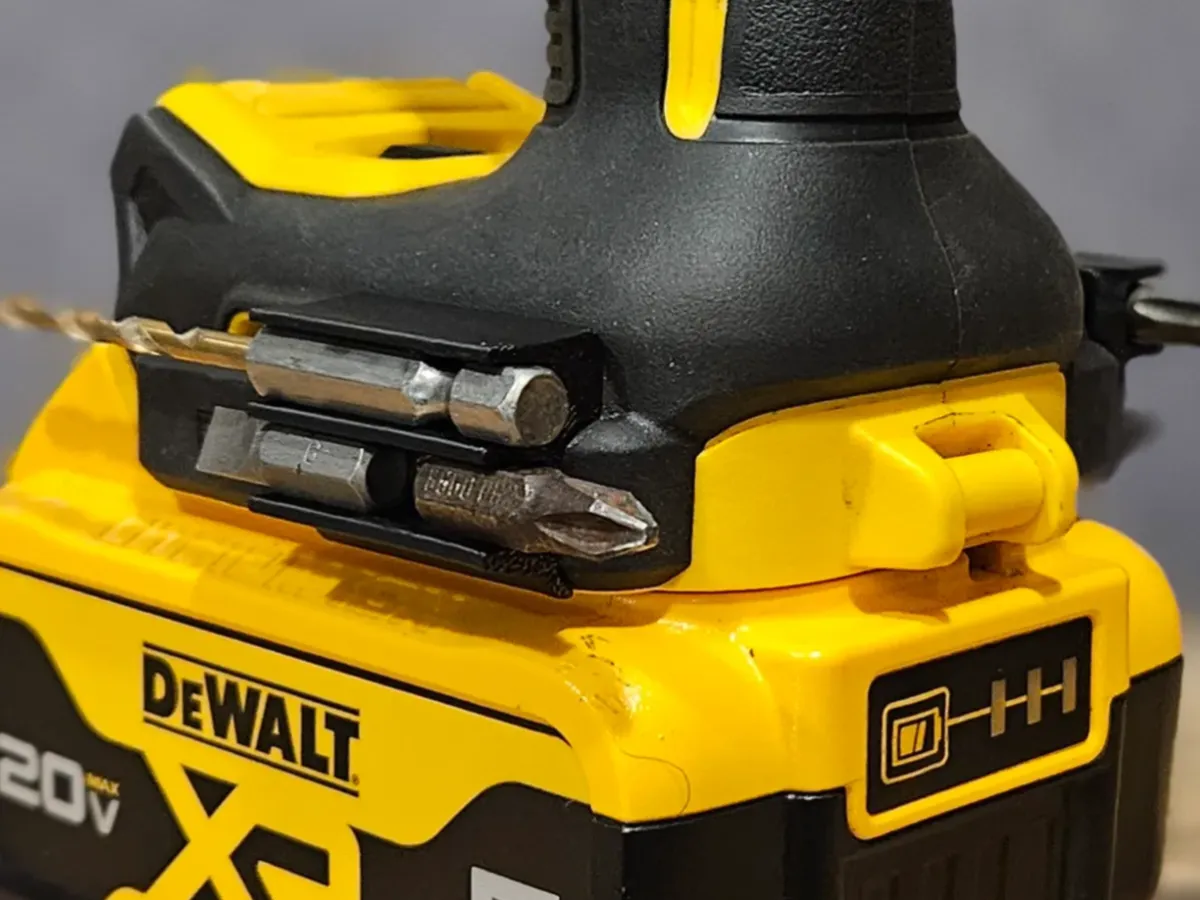

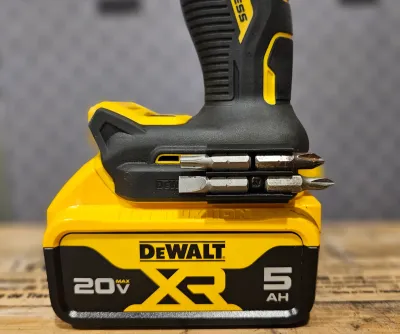

To keep the bit holder as sleek as possible, the head of the screw is not countersunk into the bit holder - it takes up some of the space that could be used for bits on the bottom row, but you can still fit bits on either side.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    10mm M3 screws
    2
    8-10mm screws required
