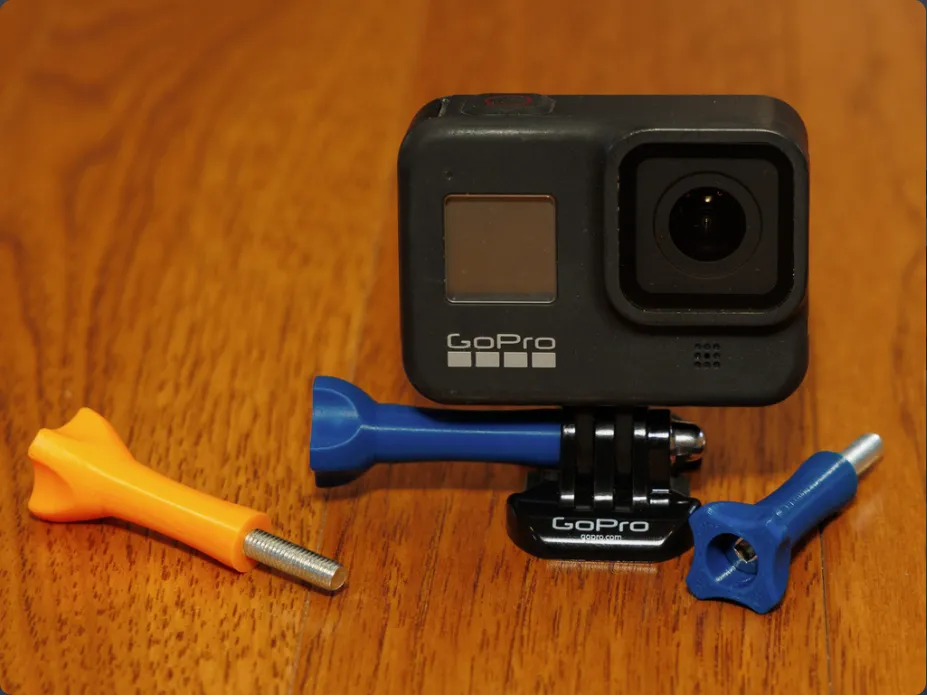

I wanted to print some knobs to attach my GoPro to it's base, but most of the knobs on here assume you're using hex-head bolts. My local Home Depot only had pan-head screws, so I designed this.

There's a threaded portion at the bottom, so you just need to screw the screw/bolt into place. There are three versions attached, for M5x30, M5x40, and M5x50 screws. I've also attached the Fusion 360 file, so if your screws don't have a 9.15 mm diameter head, you can just change “screwHeadDiameter” to match your screw. There's also a “screwLength" parameter you can adjust if you want to make these for M5x35 (or if, as in my case, your cheap Home Depot screws are actually M5x49).

Originality of the Model

The author declares that this work is their personally shared model

Original creator:
jcwalton

This model is licensed under the following terms:

No Copyright.

Models(4)

  • GoPro_Screw_v7.f3d

    1.78 MB

    2025-06-13

  • m5x30-pan-head.stl

    2.78 MB

    2025-06-13

  • m5x40-pan-head.stl

    4.37 MB

    2025-06-13

  • m5x50-pan-head.stl

    2.85 MB

    2025-06-13
