  • Monitor stand

  • Computer Peripherals

  • Visa 75

VESA mount 75x75 with a 120mm riser
Print Profile(1)
  • 0.24 mm layer height, 3-wall thickness, 25% infill density

    1-disc

    PETG

    Designer

0

1

1

0

Released 2026-06-05
Details
Files(1)
Makes & Comments (0)

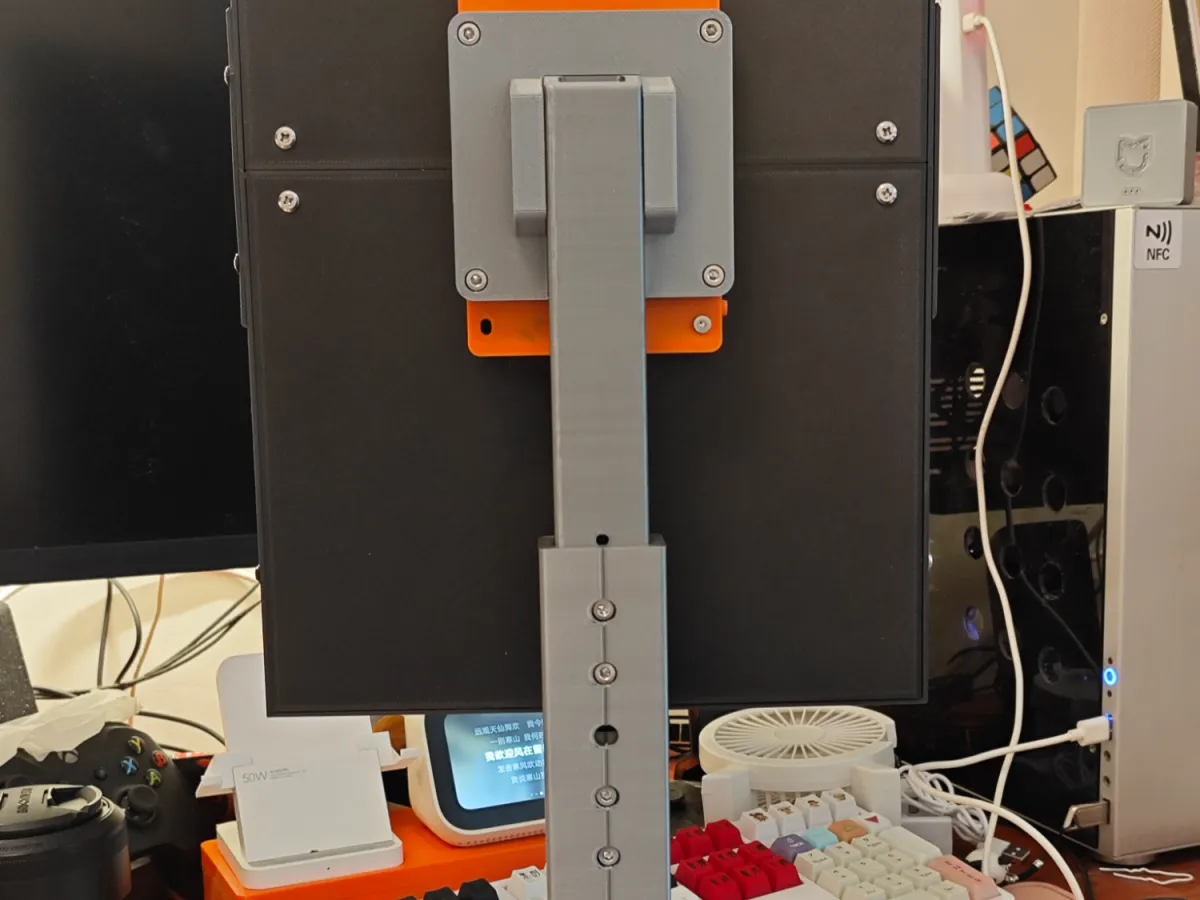

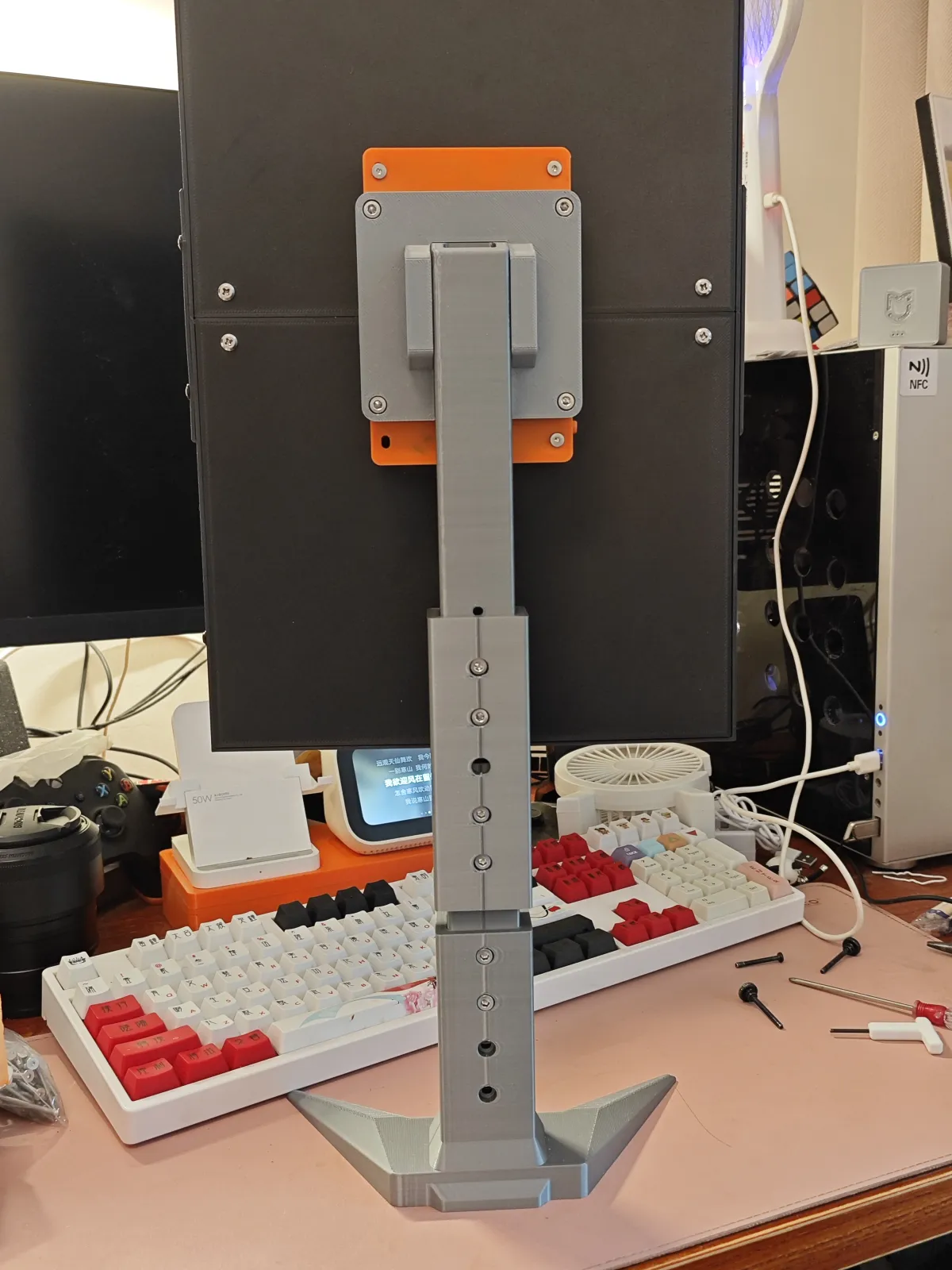

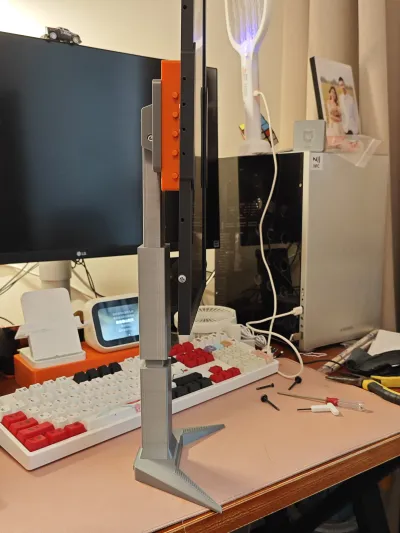

A VESA 75×75 mount was designed for the earlier portable monitor, featuring an adjustable riser up to about 120 mm high to facilitate portrait orientation.

15.6-inch Samsung display + universal driver board converted into a portable setup, with VESA 75×75 mounting holes – Qing Huajiao You Dian Ma | Nexprint: Free 3D Model Downloads

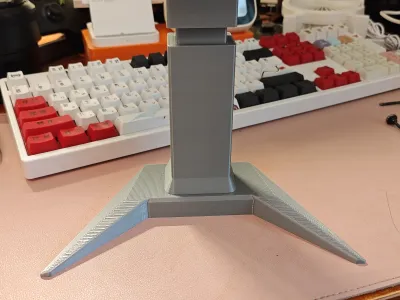

The base and adapter rod were sourced from 3dlabfasano.

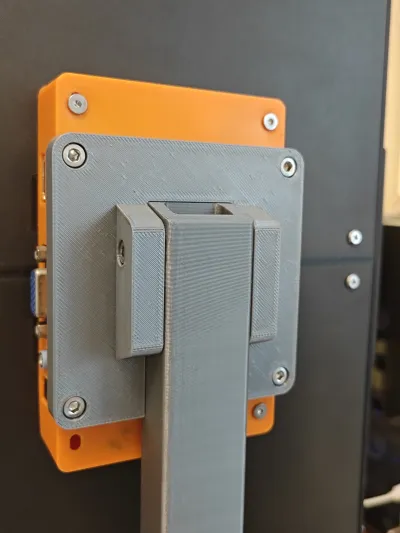

The riser and the 75×75 VESA mount were custom-designed by me.



Several M4×12 cup-head screws are required.

The overall structure may exhibit slight warping, but stability remains uncompromised.

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license

Models(1)

  • model file image
    VESA支架75x75带增高整体.3mfDesigner

    363.93 KB

    2026-06-04
