Cord Wrap with Wall Outlet and Surface Mount Box
Print Profile(0)

  • Earn points by adding print configurations

2

2

16

3

Released 2025-07-07
Details
Files(6)
Makes & Comments (0)

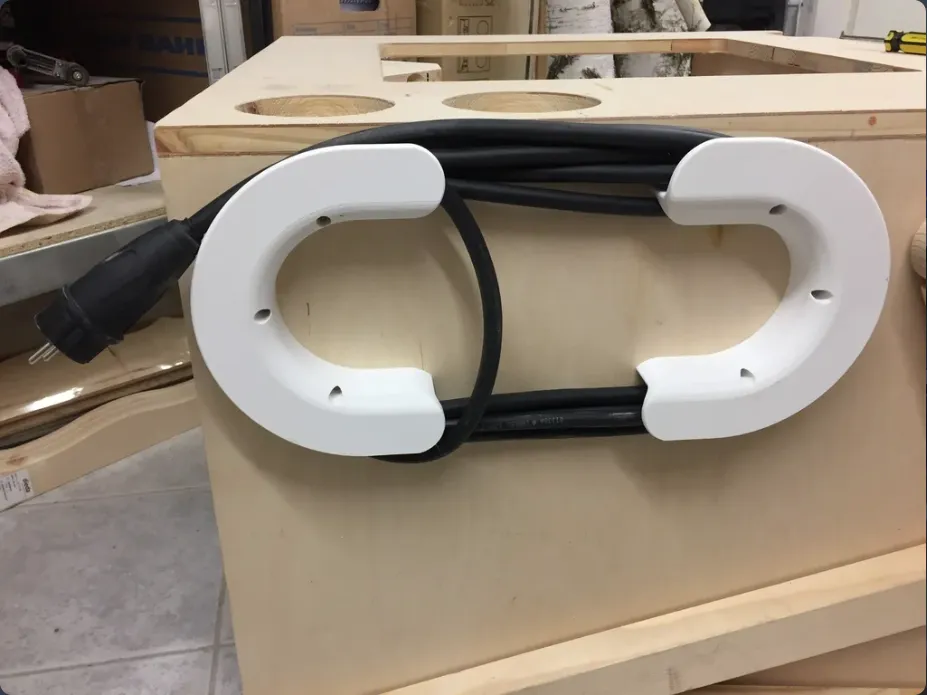

This is a cord wrap, which I designed for a woodworking project of mine. It features a wall outlet for a main power cord with up to 14mm diameter. I used a 3 x 2.5 sqmm cable.

For the entire assembly you need the following metall parts:

Wood screws:

  • 6x Spax 4x30mm (to mount the cord wrap wings)
  • 2x Spax 4x20mm (to mount the surface mount box)
    Machine screws:
  • 4x Pan head M4x18mm (to mount the surface mount cover to the corpus)
  • 2x Pan head M4x18mm (to mount the strain relief)
    Nuts:
  • 4x M4 (to mount the surface mount cover to the corpus)
  • 4x M4 (to mount the strain relief)
