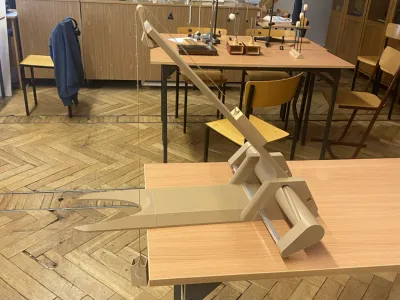

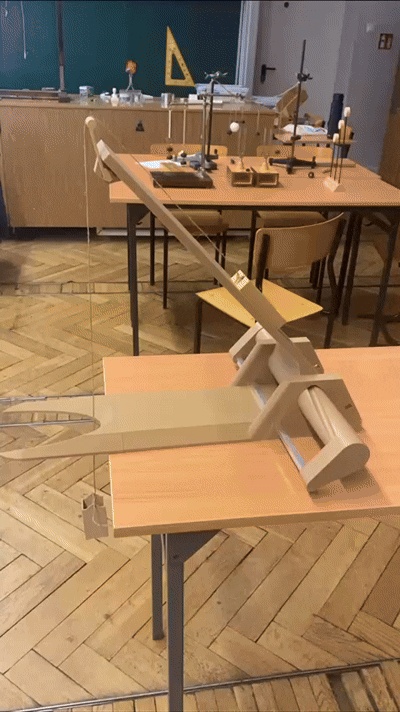

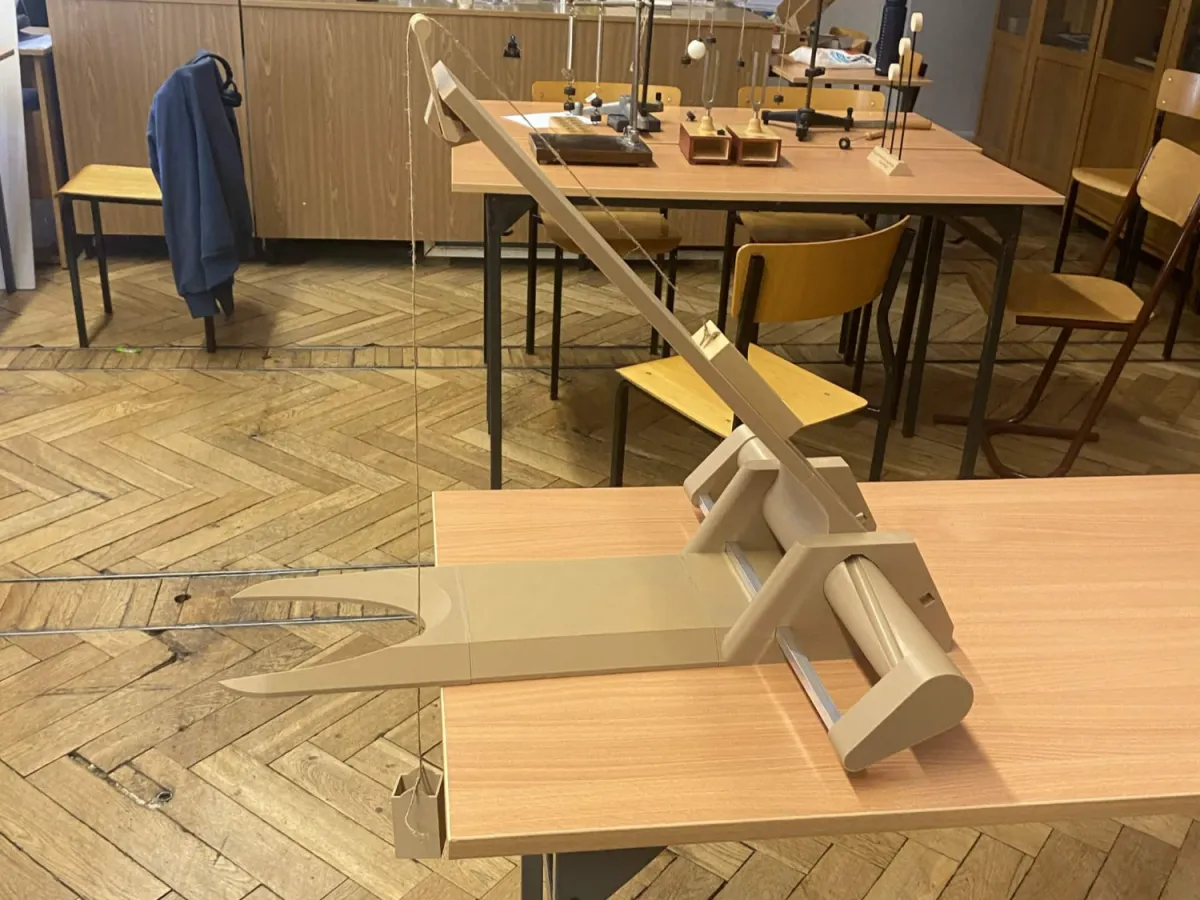

Large Adjustable Inclined Plane – Physics Laboratory Edition


From a Classroom Model to a Real Experimental Platform


This project started as a small educational inclined plane designed for physics demonstrations. After successful classroom testing, I decided to create a much larger and more capable version that allows for longer experiments, greater precision, and significantly more flexibility.


With a 60 cm long track, a 0–90° adjustment range, and a unique screw-driven angle control system, this model is designed for real experiments rather than simple demonstrations.


Whether you’re a student, teacher, physics enthusiast, or maker, this project provides a versatile platform for exploring mechanics in a hands-on way.




Key Features


Large Experimental Surface


The track measures approximately:


  • 600 mm length


  • 120 mm width


The increased size allows objects to travel for a longer time and distance, making measurements easier and more accurate compared to smaller classroom models.

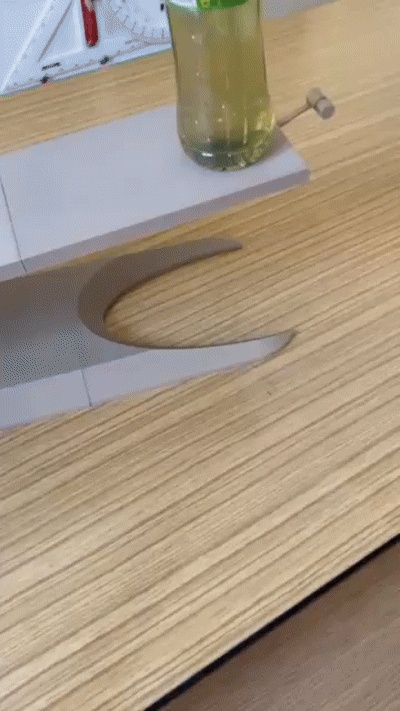

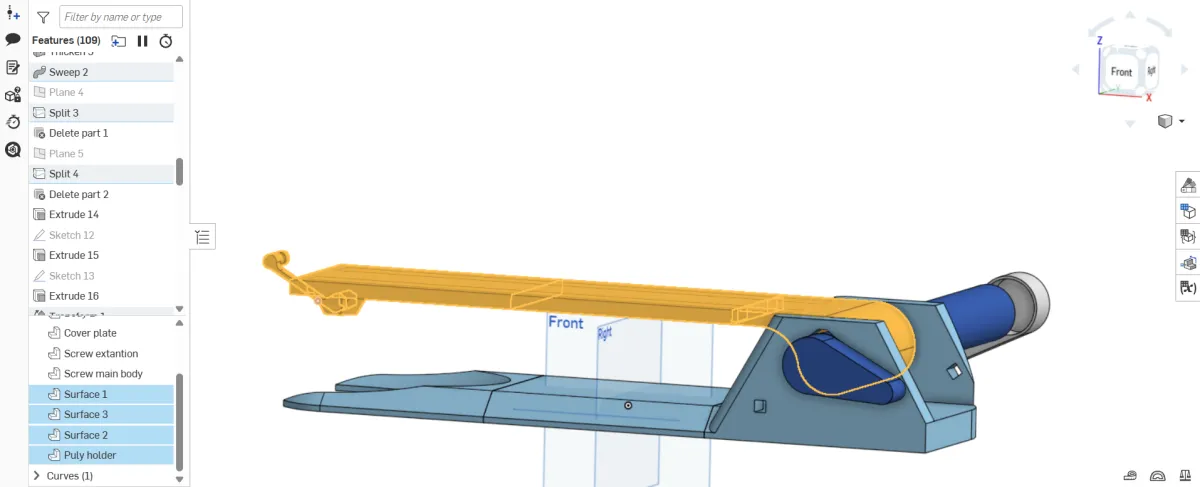

Unique Screw-Driven Angle Adjustment


Unlike most inclined planes that rely on hinges, pins, or fixed-angle supports, this design uses a custom screw-driven lifting mechanism.


The angle can be adjusted continuously from:



  •

  • up to 90°


The relationship between screw travel and angle is approximately:


1 cm screw movement ≈ 3.75° angle change


This allows the user to calculate and reproduce angles with remarkable consistency using nothing more than a ruler.




Repeatable Measurements


The system was designed with repeatability in mind.


To set a desired angle:


  1. Measure the screw displacement from its starting position.


  2. Move the screw to the required position.


  3. Repeat the same measurement whenever the setup is needed again.


No dedicated angle scale is required.


Typical practical accuracy is around:


  • ±1 mm measurement precision


  • roughly ±2° angle deviation even under load


The limiting factor is usually the measuring tool rather than the mechanism itself.

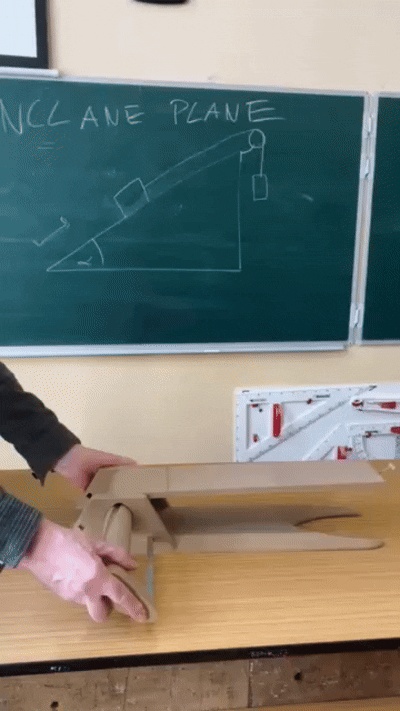

Rotating Experimental Surface


One of the most useful features is the ability to rotate the entire inclined plane by 180°.


This allows users to prepare two different surfaces and switch between them within seconds.


For example:


  • Side A: standard printed surface


  • Side B: Velcro


  • Sandpaper


  • Rubber


  • Fabric


  • Foam


  • Any custom material


This makes friction experiments significantly easier and eliminates the need to rebuild the setup between tests.




Designed for Real Physics Experiments


This model can be used for a wide variety of educational experiments, including:


Friction


  • Static friction


  • Kinetic friction


  • Coefficient of friction determination


  • Comparison of different materials


Motion on an Inclined Plane


  • Acceleration measurements


  • Distance-time relationships


  • Velocity calculations


  • Newtonian mechanics


Energy


  • Potential energy


  • Kinetic energy


  • Energy conversion


Pulley and Counterweight Systems


The top section includes a mounting point for:


  • strings


  • pulleys


  • hanging masses


allowing experiments involving connected bodies and force balance.

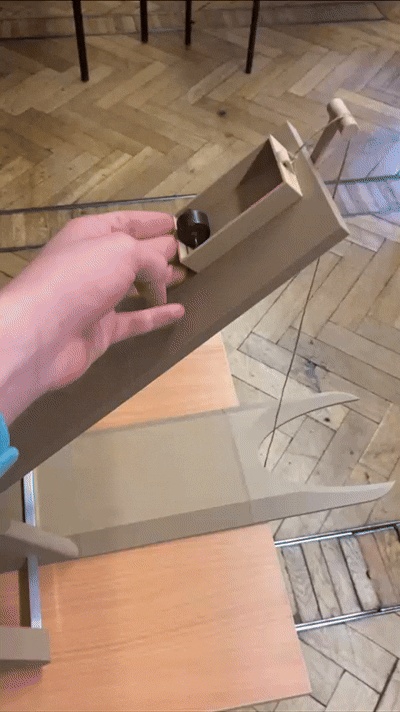

Printable Experimental Sled


Included files also contain a printable sled/container.


The sled features side walls and can be loaded with:


  • weights


  • metal parts


  • sand


  • coins


  • other test masses


This makes it easy to investigate how mass affects motion and friction.




Strength and Stability


The mechanism has been physically tested with:


  • approximately 500 g load placed at the far end of the track


The system remained stable and capable of lifting the inclined plane without structural failure.


For the smoothest operation, it is recommended to:


  • set the angle before applying heavy loads


Once adjusted, the mechanism reliably maintains its position without slipping.

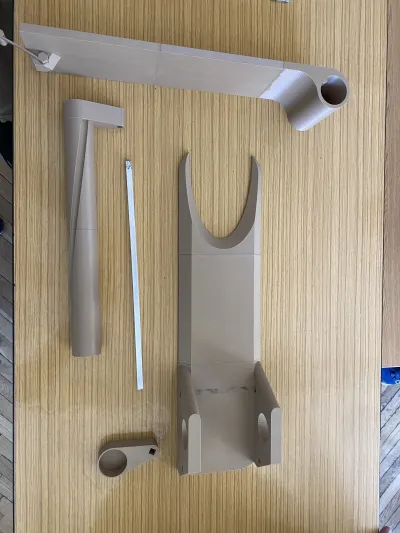

Required Non-Printed Parts


The project requires only a few additional components.


Square Rod


Approximately 1 meter of:


10 × 10 mm square rod


Recommended materials:


  • aluminum


  • steel


  • rigid plastic


Used for:


  • guide rail support


  • screw reinforcement


  • structural connections




Optional Surface Board


Recommended dimensions:


21 mm × 10 mm cross-section


Used as the inclined plane surface.


However, this part can be fully replaced with printed components if desired.




Printing Information


Supports


✅ No supports required


Material


Compatible with:


  • PLA


  • PETG


  • ABS


  • ASA


  • most common printing materials


Layer Height


Any standard layer height works well.


Estimated Print Time


Approximately:


24 hours


Filament Usage


Approximately:


800 g


depending on slicer settings.




Maintenance


The mechanism works without lubrication.


However, for best performance and reduced adjustment force, it is strongly recommended to lightly lubricate the entire screw thread using:


  • grease


  • machine oil


  • PTFE lubricant


This significantly improves smoothness during adjustment.




Educational Applications


Suitable for:


  • High school physics


  • Technical schools


  • University introductory mechanics courses


  • STEM workshops


  • Home laboratories


The model was originally developed and tested as a school physics project and proved highly effective as a practical teaching aid.




Why This Design?


Most inclined planes available online are either:


  • fixed-angle


  • very small


  • difficult to reproduce accurately


This design focuses on:


  • large scale


  • continuous adjustment


  • repeatability


  • modularity


  • ease of printing


The screw-driven mechanism provides a level of control rarely seen in 3D printable educational equipment.




Final Notes


This project was created to demonstrate that 3D printing can produce not only display models, but also serious educational tools.


If you print one, experiment with it, improve it, or adapt it for your own classroom, I would love to see the results.


Happy experimenting! 🔬⚙️📐
