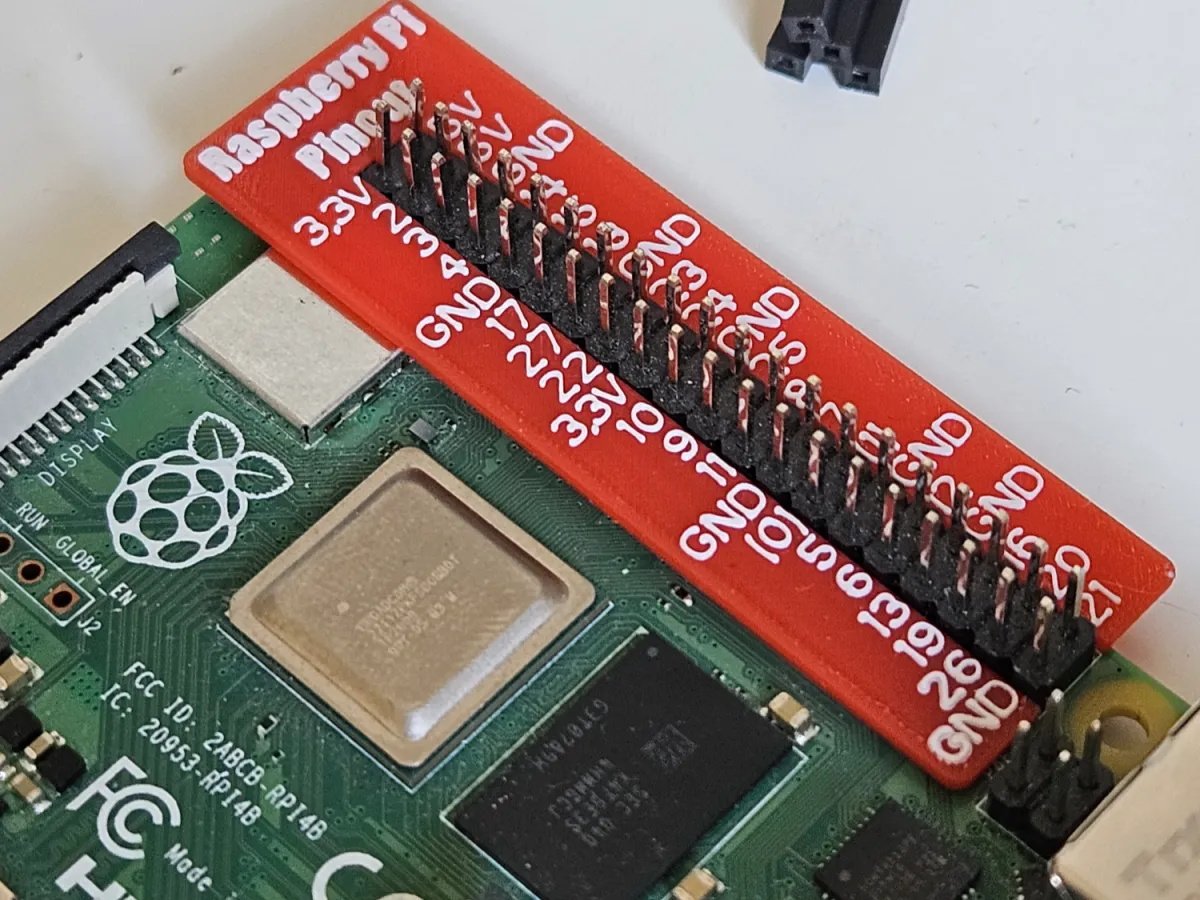

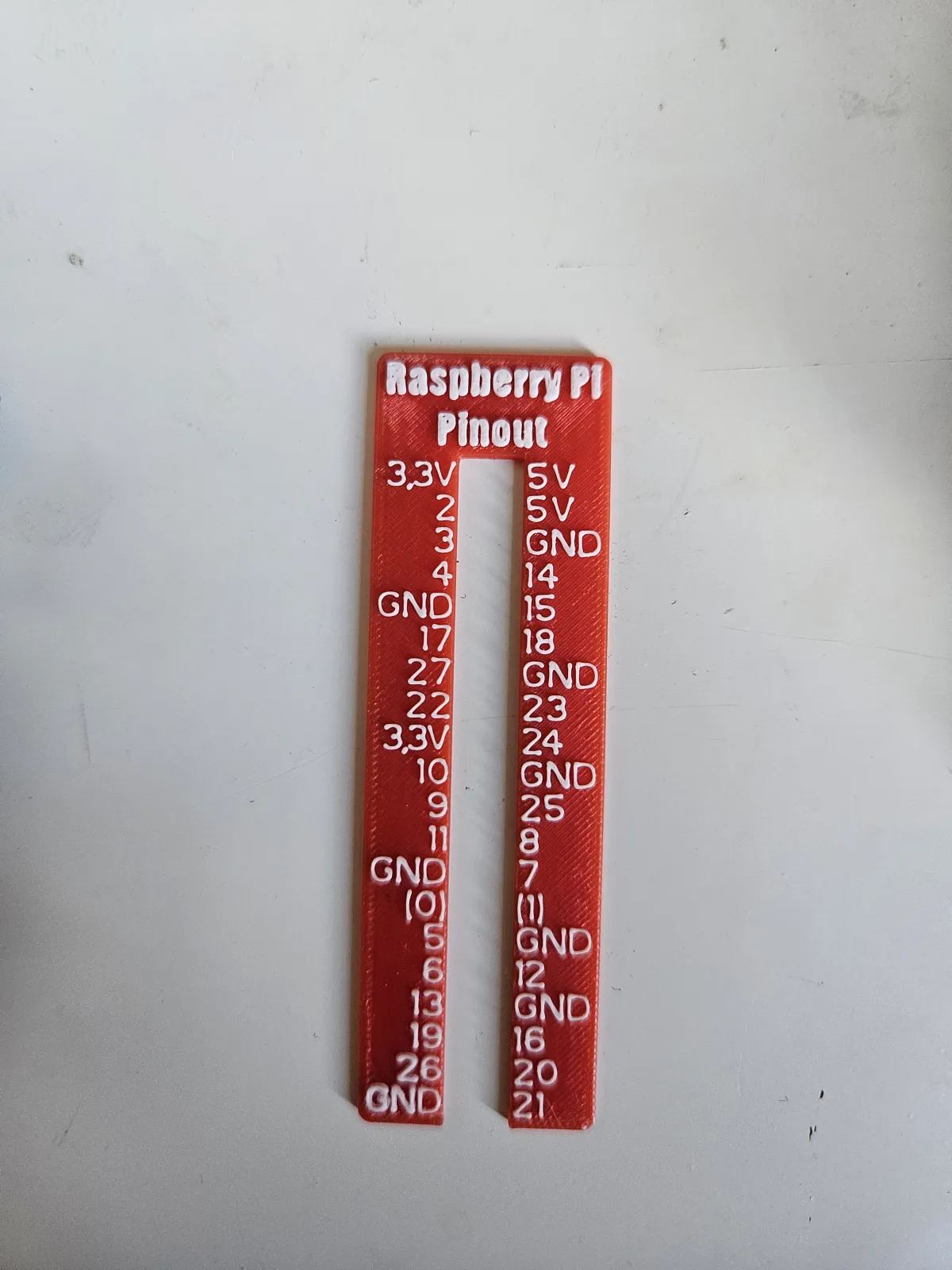

Small template for the Raspberry Pi GPIO header, with the pinout printed directly onto it.

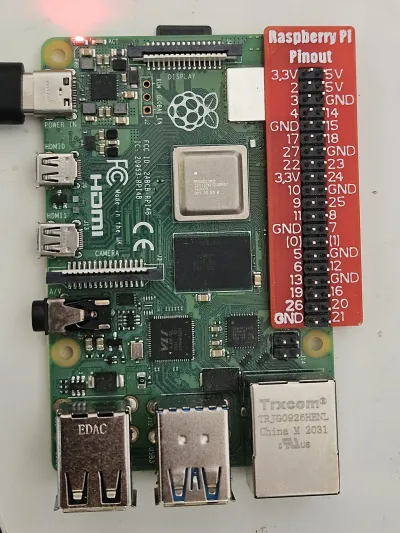

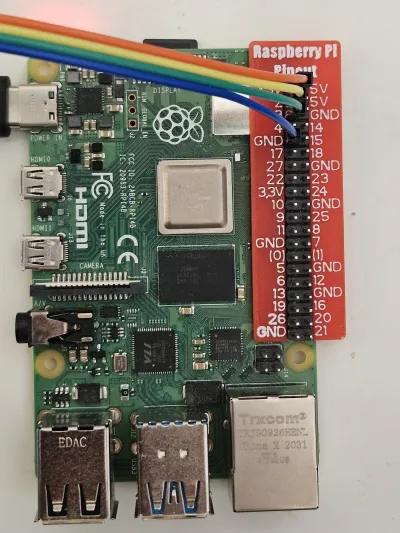

Simply slide it over the 40-pin header and read the pins immediately.

Print Settings

Required for the fine lettering:

  • 0.2 mm nozzle
  • Arachne wall generator

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted
