Osciloscope BNC protection cover for protection when working with high voltage
Print Profile(0)

  • Earn points by adding print configurations

0

0

8

3

Released 2026-05-11
Details
Files(1)
Makes & Comments (0)

Designed to help reduce the risk of electric shock when working with high-voltage circuits using an oscilloscope. It provides an isolated layer for your BNC connectors for safety during measurements.Also helps keep the BNC connectors dust free



Tested on these devices:

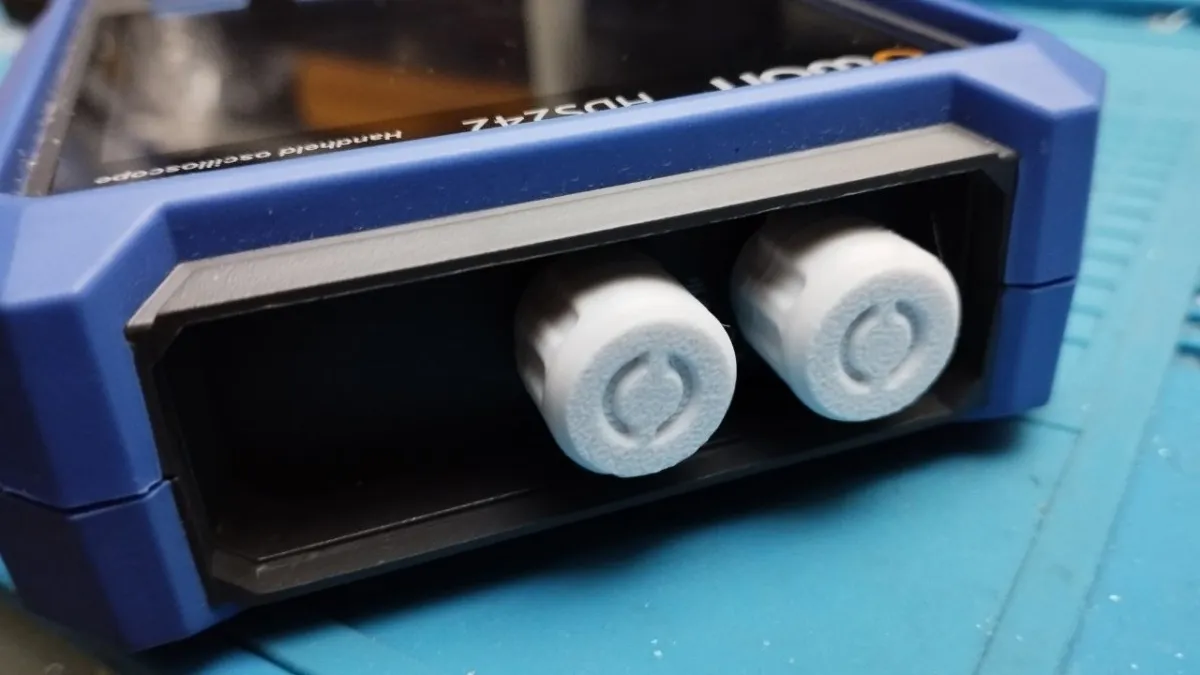

OWON HDS242S (portable) https://s.click.aliexpress.com/e/_c30Ds1fp

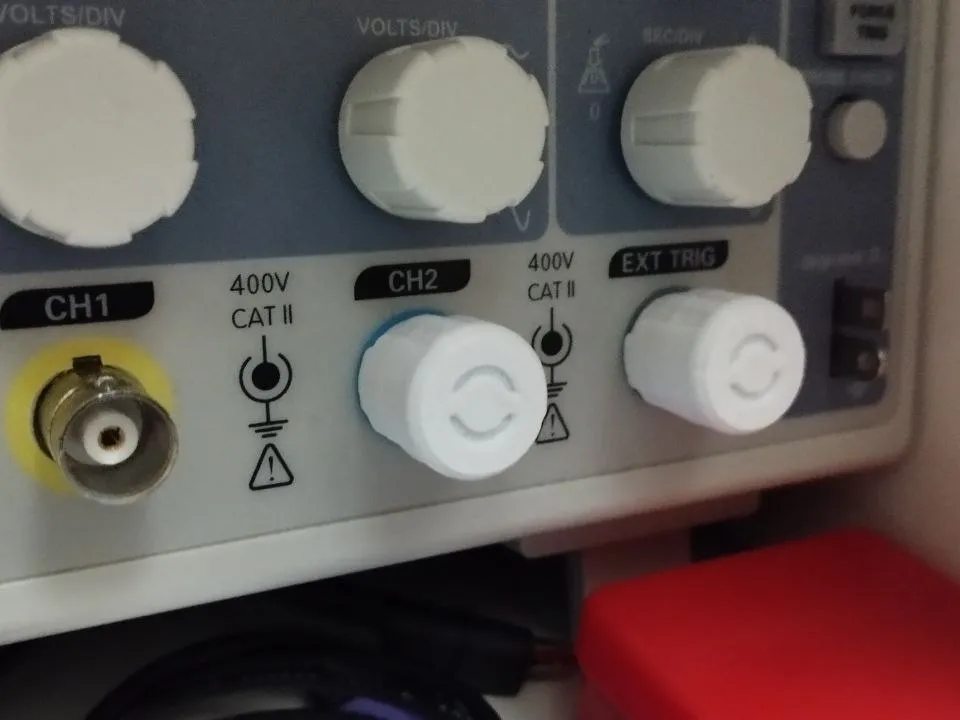

Hantek DSO5202P (bench) https://s.click.aliexpress.com/e/_c40WOlC3



But this follows the standard sizes. It has to work on every device

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(1)

  • model file image
    cap.stlDesigner

    1.40 MB

    2026-05-10
