SH1106 Display Case
Print Profile(1)
  • 0.2mm layer, 2 walls, 15% infill

    1-disc

    PLA

    Designer

0

0

18

1

Released 2026-01-26
Details
Files(4)
Makes & Comments (0)

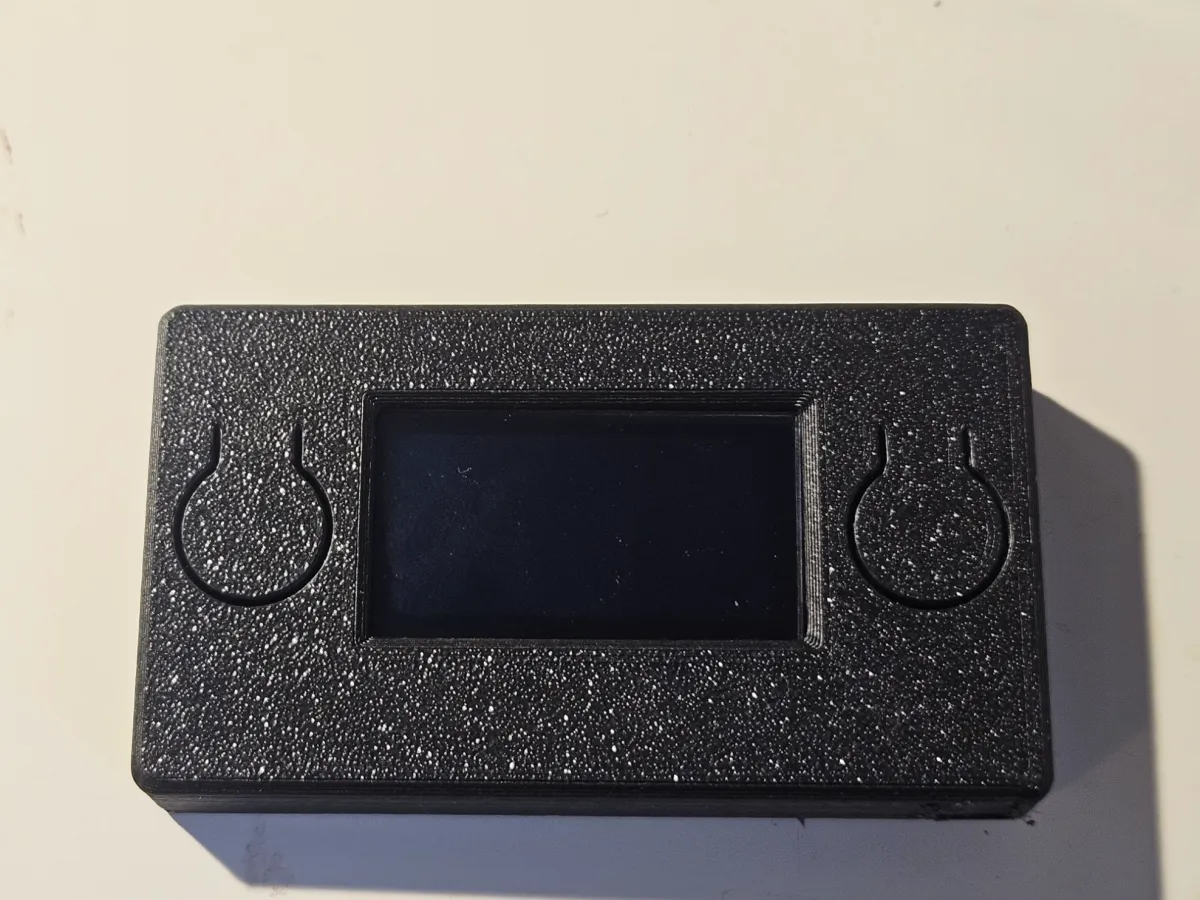

A simple case for SH1106 OLED displays (1.3", 128×64, I²C).
The enclosure protects the display and allows for clean mounting in projects using e.g. Raspberry Pi or Arduino.

The display is inserted from the front and secured with 2× M3×6 mm screws from the front.

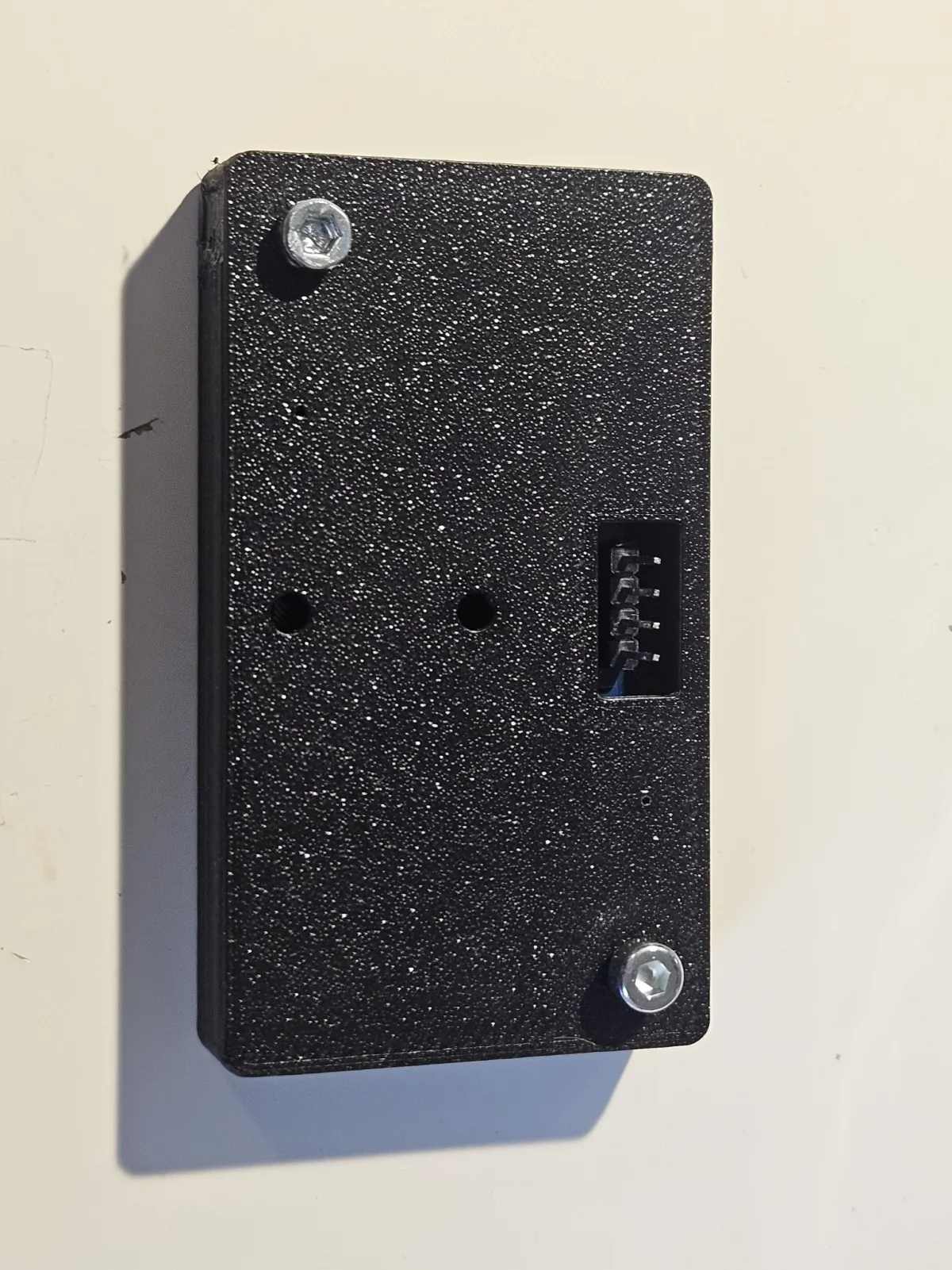

After that, the case is closed with another 2× M3×6 mm screws from the back. All connectors remain easily accessible.

Designed for 3D printing without support structures.

If you need other display variants, wall thicknesses or mounting options, feel free to reach out.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    M3x6 Screw
    4

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Models(4)

  • model file image
    halterung.stpDesigner

    25.30 KB

    2026-01-24

  • model file image
    oberteil.stpDesigner

    90.11 KB

    2026-01-24

  • model file image
    unterteil.stpDesigner

    128.38 KB

    2026-01-24

  • model file image
    sh1106Gehaeuse.3mfDesigner

    150.93 KB

    2026-01-24
