scraperholder
elegooscraperholder
magneticscraperholder

70
7

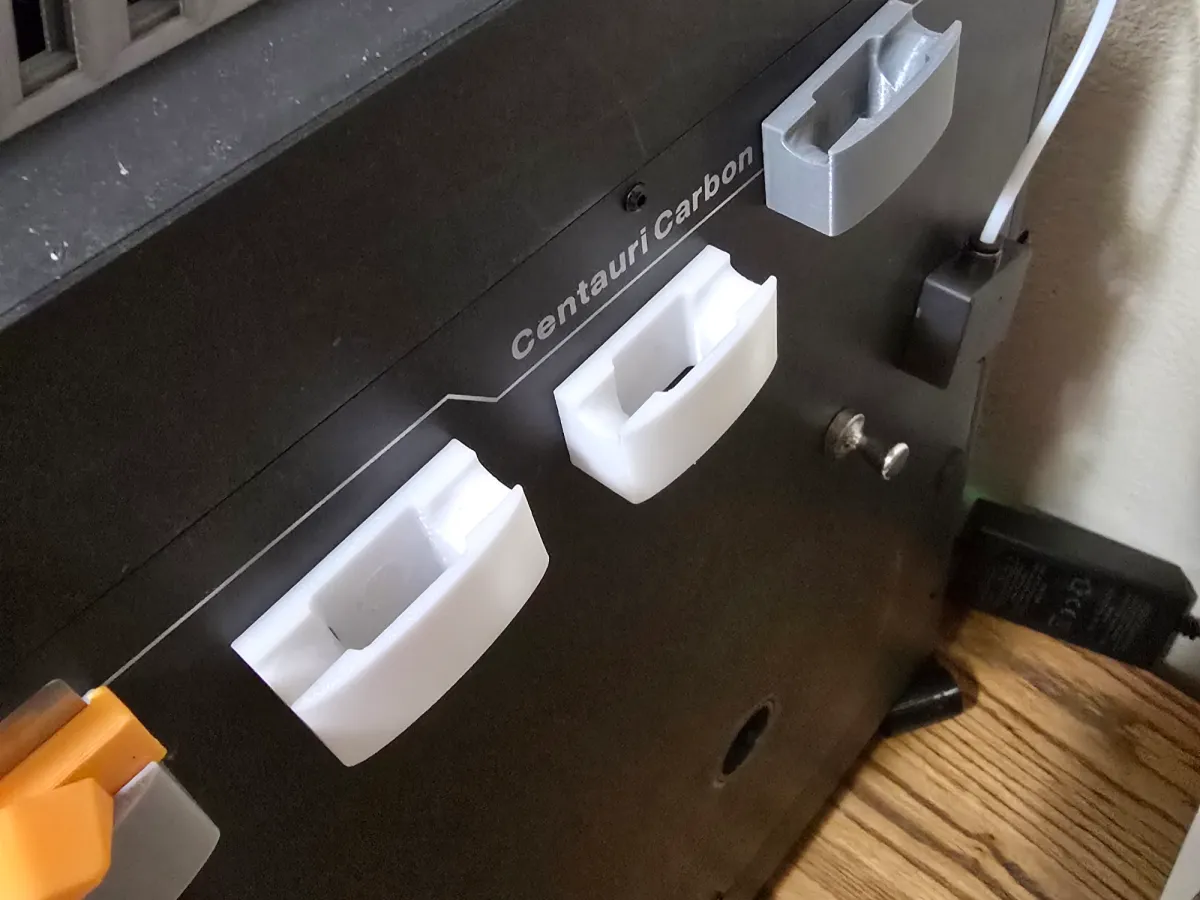

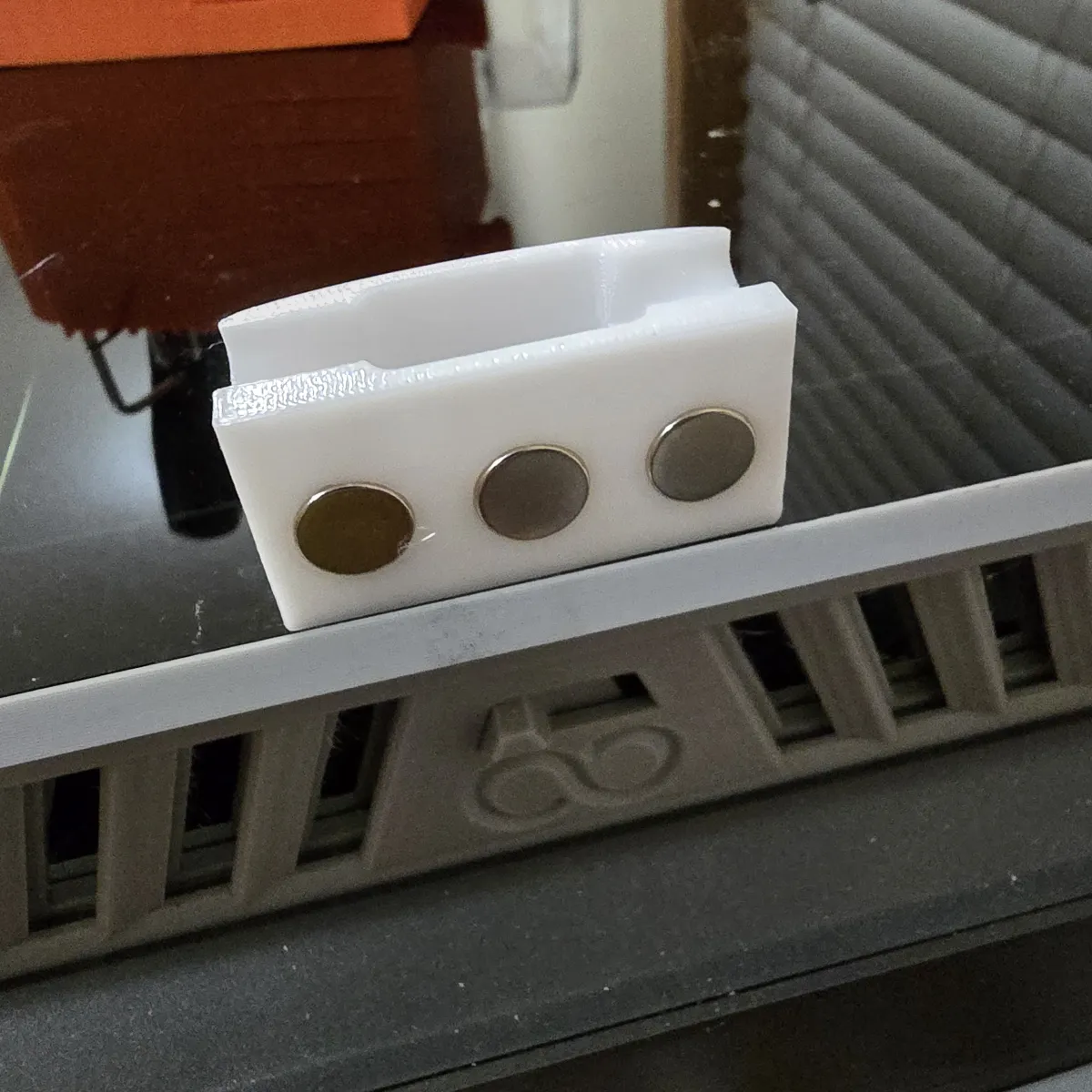

This holder is designed to fit the Elegoo scraper and affix to any ferromagnetic frame such as that for the Elegoo centauri carbon (pictured). It uses three 10mm x 3mm magnets. It has the benefit of being able to fit multiple scraper blade sizes including an extended plastic blade.
V2: changed so that the scraper can be inserted in either direction. Also, I slimmed it down to use slightly less filament. Finally, I made the magnet holes slightly smaller so that the magnets fit in snugly. I find that pushing the magnet into the holder using a flat surface like a table works best.
Bill of materials
- NameQuantityNotes
- 110mm x 3mm circular magnets3
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
Models(2)
elegoo-scraper-holderv2.stlDesigner152.91 KB
2026-05-11
elegoo-scraper-holderv2.3mfDesigner86.04 KB
2026-05-11
