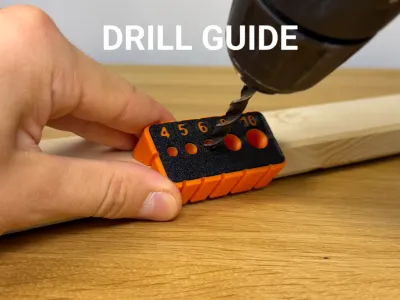

A compact drilling guide designed to help you drill accurate holes quickly and consistently.

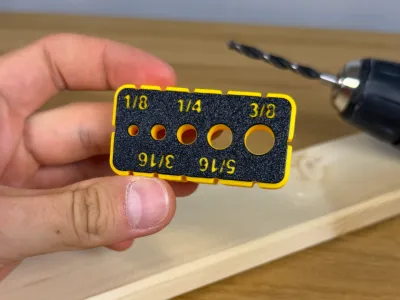

The guide includes holes for 4, 5, 6, 8, and 10 mm drill bits, with a separate imperial version also available.
Each hole is aligned with engraved center marks on the outer sides of the guide. Simply mark a cross on your workpiece, align the engraved marks with the lines, and drill exactly where intended.
The underside features a 90° V-groove, allowing the guide to sit securely on:
Flat boards
45° corners
Round stock, pipes, rods, and dowels
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
This work is licensed under a Standard Digital File License. Digital files have a strict non-commercial, personal use only license.
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital file or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including remixes of this object). You can not host these files on other digital platforms, web stores or cloud repositories. The objects may not be used in any way whatsoever in which you charge money, collect fees.
