Polisher
Finishing Tools
Grinding head
- 0.2 mm layer height, 2‑wall walls, 30% infill density
1-disc
PETG
Designer
4
0

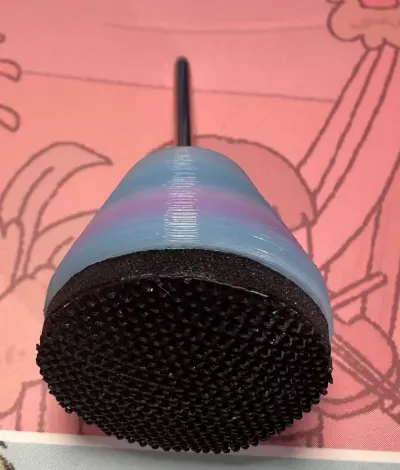

This design is specifically intended as a low-cost alternative for polishing and sanding sponges, requiring the use of an electric grinder and the attachment of sandpaper or polishing cloth with the appropriate grit.

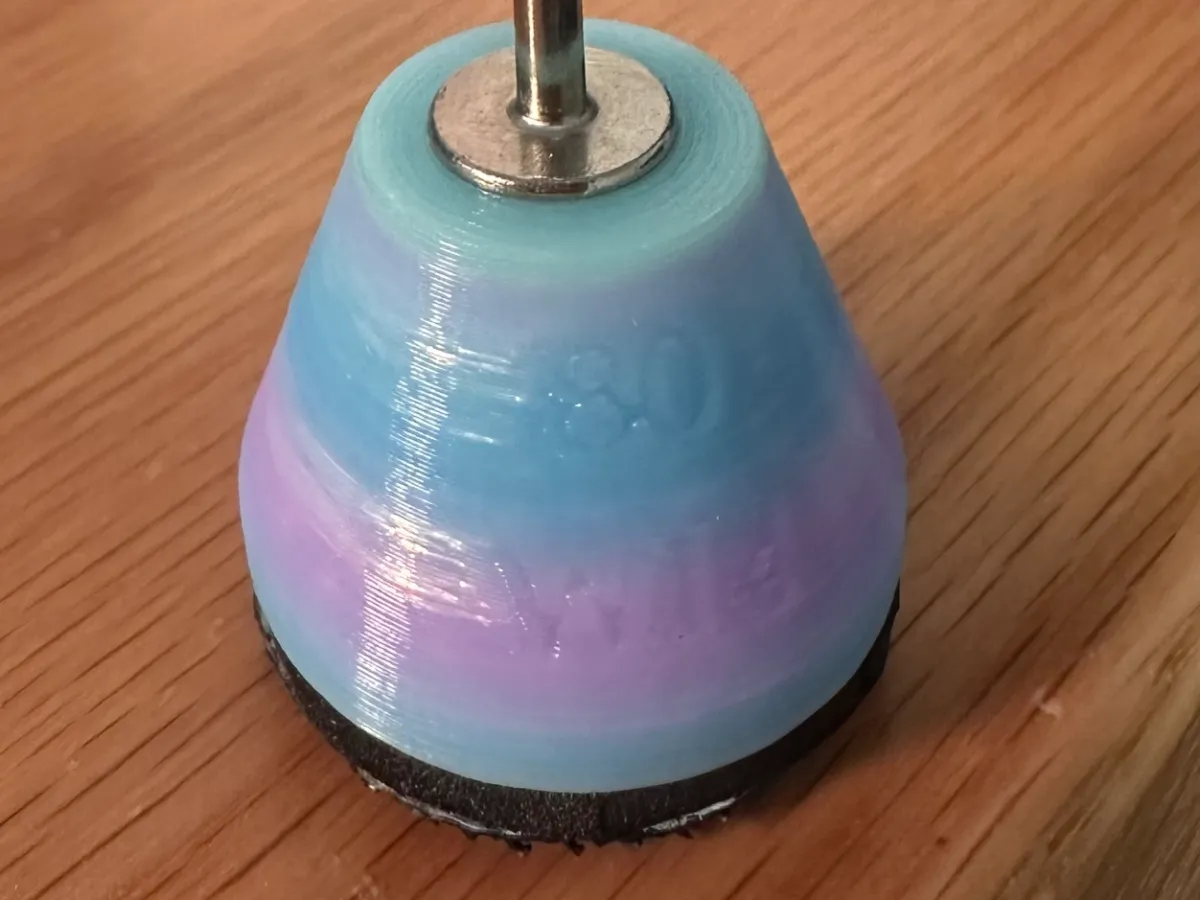

The side of the design features engraved markings: “80” indicates that this grinding head is suitable for polishing models with an internal concave spherical surface approximately 80 mm in diameter, while “1000” denotes a 1000-grit sandpaper; these specifications can be customized according to individual needs.
Bill of materials
- NameQuantityNotes
- 1模型胶94061常规3D打印专用胶水.
- 2EVA海绵38度1该模型为1寸打磨头,即裁切25mm左右直径圆形即可.
- 3魔术贴1建议使用不抓毛+射出勾形式魔术贴寿命长,可以反复使用,也裁切成25mm左右直径圆形.

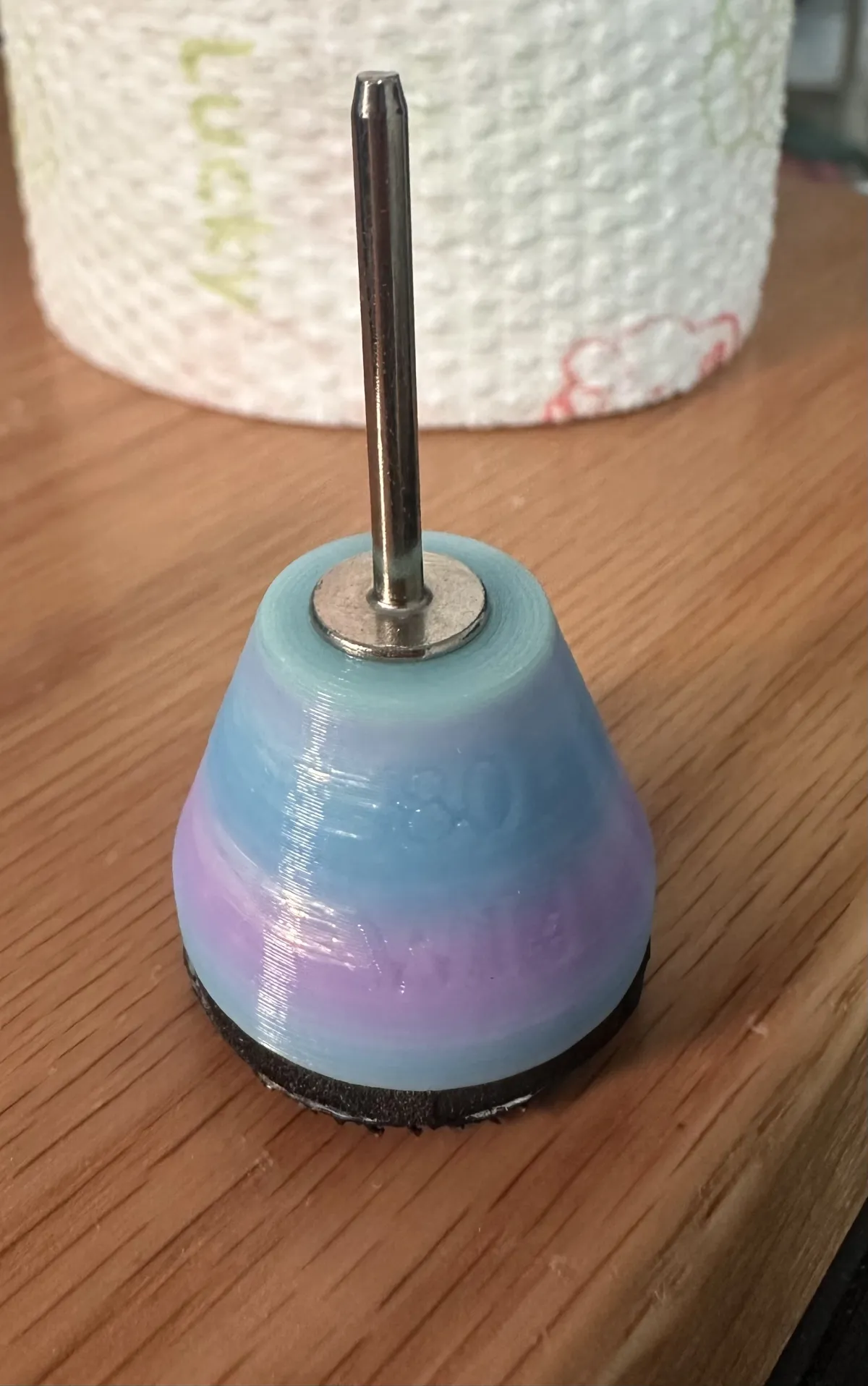

- 46.35砂轮轴1砂轮轴,链接模型提供电磨加持.
- 5电烙铁1将砂轮轴热熔焊接置打印模型中;也可以选择不用,需要将模型中孔6.35mm扩大至6.55mm即可直接插入,但是面对大负载打磨可能出现打滑情况.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Models(1)
- 凹面打磨头.3mfDesigner
8.13 MB
2026-04-29
